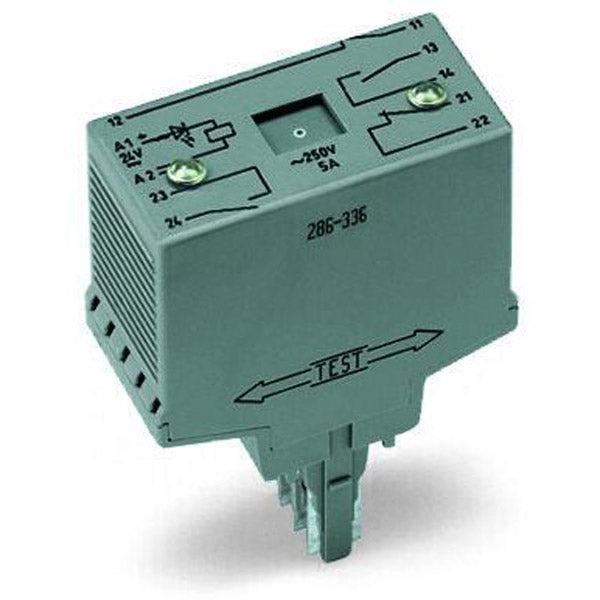

Replacement plug-in relay with red LED - WAGO (286 series) - 4-poles (4P) - control voltage 16.8-30Vdc (24Vdc nom.; 0.7...1.25 x Uc) - 2NO / DPST-NO (Double Pole Single Throw - Normally Open) / 2NC / DPST-NC (Double Pole Single Throw - Normally Closed) - Electromechanical design - Rated current 50mA (30Vdc; DC-13) (max. recommended current to avoid evaporating the Gold flash) - with plug-in connections - Plug-in mounting - IP20 - material Hard Gold-plated Silver-Nickel (AgNi + Au) contacts - equivalent to 286336001000

Specifications

  • Primary brand: WAGO
  • Functions: Replacement plug-in relay
  • Design: red LED|Electromechanical design
  • Poles: 4-poles (4P)
  • Temperature: Processing temperature -25°C...+50°C
  • Rated current: 50mA (30Vdc; DC-13) (max. recommended current to avoid evaporating the Gold flash)|5A (continuous)
  • Rated operating voltage (Ue): 250V
  • Rated voltage (AC): 250Vac max. (switching voltage)
  • Connection type: plug-in connections
  • Control Voltage (DC): 16.8-30Vdc (24Vdc nom.; 0.7...1.25 x Uc)
  • Mounting mode: Plug-in
  • Response time: (OFF=>ON / contacts closing) 8ms / 0.008s|(ON=>OFF / contacts opening) 5ms / 0.005s
  • Contacts type: 2NO / DPST-NO (Double Pole Single Throw - Normally Open)|2NC / DPST-NC (Double Pole Single Throw - Normally Closed)
  • Dimensions: H82.5mm x W25mm x D52mm
  • Material: Hard Gold-plated Silver-Nickel (AgNi + Au) contacts
  • Ambient air temperature for operation: -25°C...+70°C
  • Ambient air temperature for storage: -25°C...+70°C
  • Humidity: 5-85% relative humidity (RH; non-condensing)
  • GTIN code: 4055143104746
  • eClass code: 27-37-16-01
  • Customs Tariff Number: 85364900990
  • ETIM code: EC001437
  • Order code / Manufacturer SKU: 286-336/001-000
  • Manufacturer product status: Commercialized
  • Equivalent to: 286336001000
  • EAN code: 4055143104746
  • Compliant with standard(s): EN 60664-1|General approvals|- EAC - GZO Almaty Standart - TP TC 004/2011 - certificate EAC CoC 03078|RoHS compliant with exemption (6(c) / 7(a) / 7(c)-I / 7(c)-II)
  • Location of origin: Germany
  • Degree of pollution: 2
  • Level 1 category: Automation components
  • Level 2 category: Control components
  • Level 3 category: Control relays
  • Product title: Replacement plug-in relay - WAGO

Commercial data

  • Country of origin: DE
  • Customs tariff number: 85364900990
  • ECCN: NO US CLASSIFICATION
  • eCl@ss 10.0: 27-37-16-01
  • eCl@ss 9.0: 27-37-16-01
  • ETIM 8.0: EC001437
  • ETIM 9.0: EC001437
  • GTIN: 4055143104746
  • Packaging type: box
  • Product Group: 6 (INTERFACE ELECTRONIC)
  • PU (SPU): 10 (1) pcs

Environmental Product Compliance

  • CAS-No.: 1303-86-2|7439-92-1|79-94-7
  • REACH Candidate List Substance: 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol|Diboron trioxide|Lead
  • RoHS Compliance Status: Compliant,With Exemption
  • RoHS Exemption: 6(c)|7(a)|7(c)-I|7(c)-II
  • SCIP notification number (Austria): 0a793143-49f9-4230-a7c2-fc470a395514
  • SCIP notification number (Belgium): 453f8920-e96d-40ba-9383-2af524fc623f
  • SCIP notification number (Bulgaria): 880f53e2-0ae2-4667-baa1-954f12b89cd1
  • SCIP notification number (Czech Republic): 9c21aa3d-2696-4dd2-9bc6-a4b95876e79a
  • SCIP notification number (Denmark): 13a39cb9-98ec-458a-bc7c-9e8617817518
  • SCIP notification number (Finland): 3aa3f4d2-160d-482f-8b4b-6922d0195b73
  • SCIP notification number (France): 624a2c7e-e10f-4fc0-bee8-915e3274a034
  • SCIP notification number (Germany): 85020e9d-7328-4dd4-a608-8ec2a6697673
  • SCIP notification number (Hungary): a409d1b6-f6d2-44ce-af6a-25c19ec5b265
  • SCIP notification number (Italy): 1d2acd3b-2431-43d7-b060-66284d6ae26b
  • SCIP notification number (Netherlands): c7f767b4-b6af-4f42-8303-f5dab8dff9d1
  • SCIP notification number (Poland): a471ada6-9072-48b5-8684-283220f57979
  • SCIP notification number (Romania): fbe0b43a-0dc4-4263-be78-bdec9d72cf89
  • SCIP notification number (Sweden): 4bfb380a-0379-4ff8-a7c1-ef2b4f12ef13

Environmental requirements

  • Ambient temperature (operation at UN): -25 … +70 °C
  • Ambient temperature (storage): -25 … +70 °C
  • Operating altitude (max.): 2000m
  • Processing temperature: -25 … +50 °C
  • Relative humidity: 5 … 85 % (no condensation permissible)

Material data

Mechanical data

  • Mounting type: Pluggable module for receptacle terminal blocks

Physical data

  • Depth from upper-edge of DIN-rail: 82.5 mm / 3.248 inches
  • Height: 52 mm / 2.047 inches
  • Note (dimensions): Depth including carrier terminal block
  • Width: 25 mm / 0.984 inches

Safety and protection

  • Dielectric strength (control/load circuit) (AC, 1 min): 1.5 kVrms
  • Pollution degree: 2
  • Protection type: IP20
  • Rated impulse withstand voltage: 2.5kV
  • Rated voltage: 250V

Standards and specifications

  • Standards/specifications: EN 60664-1

Technical data

  • Control circuit - Input voltage range: -30 … +25 %
  • Control circuit - Nominal input current at UN: 9 mA
  • Control circuit - Nominal input voltage UN: 24 VDC
  • Load circuit - Bounce time (typ.): 1ms
  • Load circuit - Contact material (relay): AgNi + Au
  • Load circuit - Drop-out time (typ.): 5ms
  • Load circuit - Limiting continuous current: 5 A
  • Load circuit - Number of break/switch-off contacts: 2
  • Load circuit - Number of make/switch-on contacts: 2
  • Load circuit - Pull-in time (typ.): 8ms
  • Load circuit - Switching Voltage, Max.: 250 VAC
