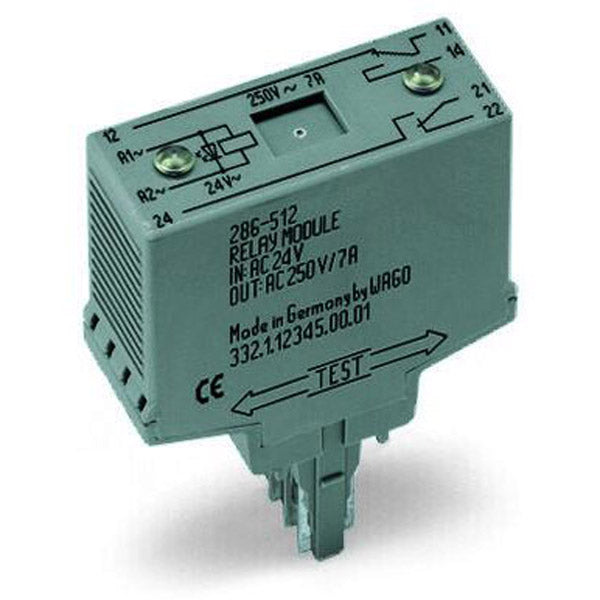

Replacement plug-in relay with red LED - WAGO (286 series) - 2-poles (2P) - control voltage 21.6-26.4Vdc (24Vdc nom.; 0.9...1.1 x Uc) - 2C/O / DPDT (Double Pole Double Throw) contact - Electromechanical design - Rated current 7A (continuous) - with plug-in connections - Plug-in mounting - IP20 - material Silver-Nickel (AgNi 0.15) contacts - equivalent to 286312

Specifications

• Primary brand: WAGO
• Functions: Replacement plug-in relay
• Design: red LED|Electromechanical design
• Poles: 2-poles (2P)
• Temperature: Processing temperature -25°C...+50°C
• Rated current: 7A (continuous)
• Rated operating voltage (Ue): 250V
• Rated voltage (AC): 250Vac max. (switching voltage)
• Rated impulse voltage (Uimp): 4kV
• Connection type: plug-in connections
• Control Voltage (DC): 21.6-26.4Vdc (24Vdc nom.; 0.9...1.1 x Uc)
• Mounting mode: Plug-in
• Response time: (OFF=>ON / contacts closing) 18ms / 0.018s|(ON=>OFF / contacts opening) 3ms / 0.003s
• Contacts type: 2C/O / DPDT (Double Pole Double Throw) contact
• Dimensions: H82.5mm x W20mm x D52mm
• Material: Silver-Nickel (AgNi 0.15) contacts
• Ambient air temperature for operation: -25°C...+40°C
• Ambient air temperature for storage: -25°C...+70°C
• Humidity: 5-85% relative humidity (RH; non-condensing)
• Electrical durability (with load): 100 000operations
• Mechanical durability (at no load): 30 000 000operations
• Customs Tariff Number: 85364900990
• eClass code: 27-37-16-01
• ETIM code: EC001437
• GTIN code: 4045454427986
• Order code / Manufacturer SKU: 286-312
• Manufacturer product status: Commercialized
• Equivalent to: 286312
• EAN code: 4045454427986
• Compliant with standard(s): EN 60664-1|General approvals|- EAC - GZO Almaty Standart - TP TC 004/2011 - certificate EAC CoC 03078|RoHS compliant with exemption (7(a) / 7(c)-I / 7(c)-II)
• Location of origin: Germany
• Degree of pollution: 2
• Level 1 category: Automation components
• Level 2 category: Control components
• Level 3 category: Control relays
• Product title: Replacement plug-in relay - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85364900990
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-37-16-01
• eCl@ss 9.0: 27-37-16-01
• ETIM 8.0: EC001437
• ETIM 9.0: EC001437
• GTIN: 4045454427986
• Packaging type: box
• Product Group: 6 (INTERFACE ELECTRONIC)
• PU (SPU): 10 (1) pcs

Environmental Product Compliance

• CAS-No.: 7439-92-1|79-94-7
• REACH Candidate List Substance: 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol|Lead
• RoHS Compliance Status: Compliant,With Exemption
• RoHS Exemption: 7(a)|7(c)-I|7(c)-II
• SCIP notification number (Austria): 86f44f9f-82f0-41d6-a503-1729fec3d12a
• SCIP notification number (Belgium): 30e73ea9-bf79-47c9-a626-fc7dd71d79ba
• SCIP notification number (Bulgaria): 0d888b10-ba7a-4daf-ac6b-166d44106eec
• SCIP notification number (Czech Republic): 9faccd2a-6838-4858-a016-bcadfda0ed36
• SCIP notification number (Denmark): 4b519ec2-d88f-4923-ba21-66526dab623c
• SCIP notification number (Finland): 5cd13514-e0d7-479f-a4d5-ea086b01e171
• SCIP notification number (France): 0f7b5fb5-bc85-40e4-9d2b-a3bf1f9b010f
• SCIP notification number (Germany): 80af79bc-86fa-4967-8977-b6c49aa70477
• SCIP notification number (Hungary): cfda50cc-840a-4960-8d5f-af8605dd8d77
• SCIP notification number (Italy): 18a7a23c-effd-473f-9622-fa1b516e1644
• SCIP notification number (Netherlands): d65ed1dd-f77b-4fd6-88f5-4048d144b645
• SCIP notification number (Poland): 116def87-268a-4a2c-a4c1-035eef1217d1
• SCIP notification number (Romania): 7f60db94-8363-4912-a302-fbfa4a2baa38
• SCIP notification number (Sweden): b388c426-10b0-42a5-ace5-18897e258763

Environmental requirements

• Ambient temperature (operation at U_N): -25 … +40 °C
• Ambient temperature (storage): -25 … +70 °C
• Operating altitude (max.): 2000m
• Processing temperature: -25 … +50 °C
• Relative humidity: 5 … 85 % (no condensation permissible)

Material data

• Color: gray
• Fire load: 0.412MJ
• Note (material data):
  Information on material specifications can be found here

• Weight: 39.6g

Mechanical data

• Mounting type: Pluggable module for receptacle terminal blocks

Physical data

• Depth from upper-edge of DIN-rail: 82.5 mm / 3.248 inches
• Height: 52 mm / 2.047 inches
• Note (dimensions): Depth including carrier terminal block
• Width: 20 mm / 0.787 inches

Safety and protection

• Dielectric strength (control/load circuit) (AC, 1 min): 2 kVrms
• Dielectric strength (load/load circuit) (AC, 1 min): 1.5 kVrms
• Dielectric strength (open contact) (AC, 1 min): 1 kVrms
• Pollution degree: 2
• Protection type: IP20
• Rated impulse withstand voltage: 4kV
• Rated voltage: 250V

Standards and specifications

• Standards/specifications: EN 60664-1

Technical data

• Control circuit - Input voltage range: ±10 %
• Control circuit - Nominal input current at U_N: 22 mA
• Control circuit - Nominal input voltage U_N: 24 VDC
• Load circuit - Bounce time (typ.): 2ms
• Load circuit - Contact material (relay): AgNi 0.15
• Load circuit - Drop-out time (typ.): 3ms
• Load circuit - Electrical life (NO; resistive load; 23 °C): 100 x 10³ switching operations
• Load circuit - Limiting continuous current: 7 A
• Load circuit - Mechanical life: 30 x 10⁶ switching operations
• Load circuit - Number of changeover/switchover contacts: 2
• Load circuit - Pull-in time (typ.): 18ms
• Load circuit - Switching power (resistive) max.: AC 1750 VA
• Load circuit - Switching Voltage, Max.: 250 VAC
• Signaling - Status indicator: Red LED
