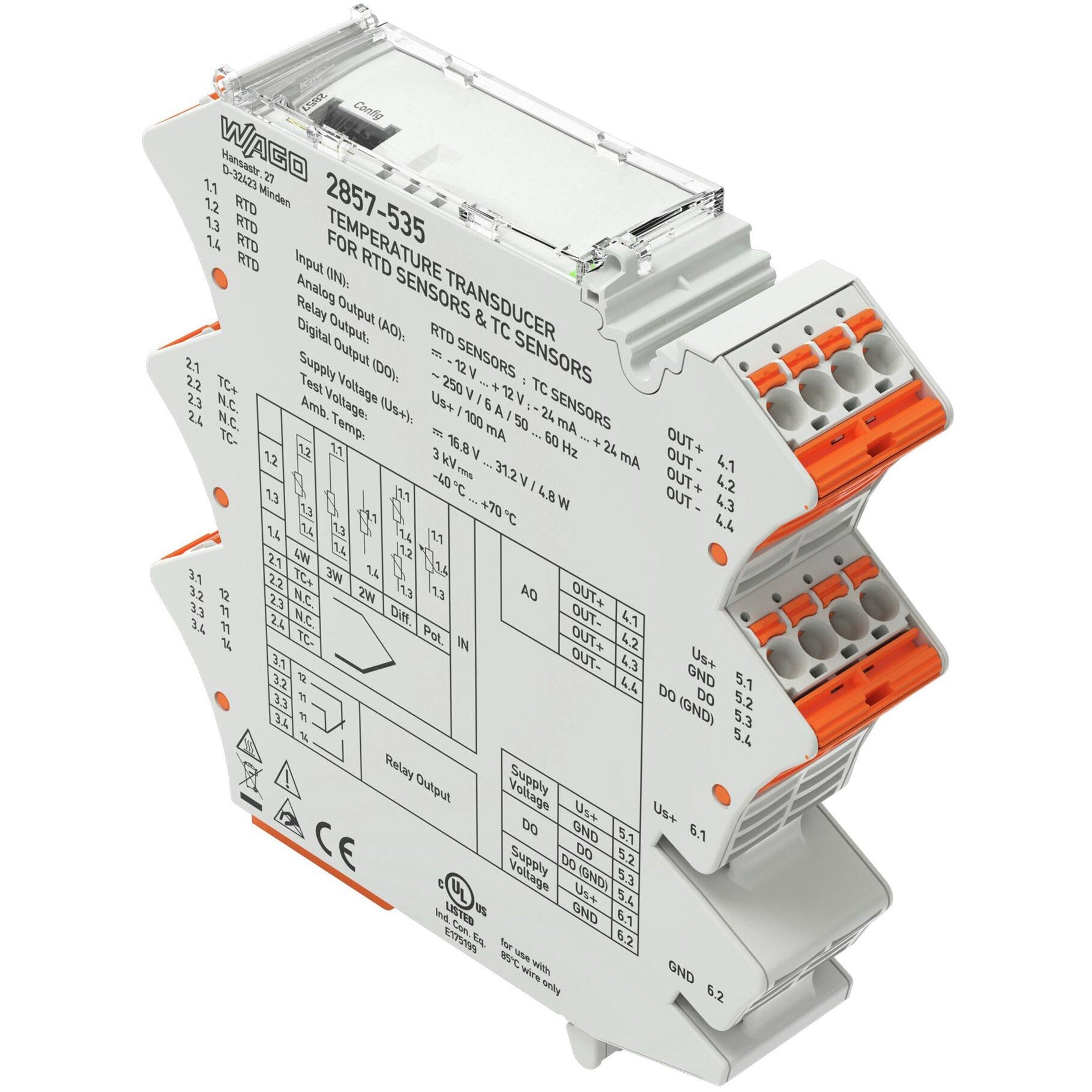

Wago - 2857-535

Temperature signal transducer / conditioner with analog output + software configuration - WAGO (2857 JUMPFLEX series) - with 1 x analog input (RTD Pt10 / Pt2000 / Thermocouples types J; K; E; R; N; S; T; B; C / Resistor; 0-10kΩ / Potentiometer; Resistor; 0-10kΩ; 2-wire / 3-wire / 4-wire) + 1 x analog output (-24...+24mA / -12...+12Vdc) - supply voltage 9.6-31.2Vdc (24Vdc nom.) - with Push-in CAGE CLAMP spring connections - DIN-35 rail mounting (22.5mm width) - IP20 - rated for -40°C...+70°C ambient - equivalent to 2857535

Specifications

• Primary brand: WAGO
• Functions: Temperature signal transducer / conditioner
• Design: analog output|software configuration
• Supply voltage (DC): 9.6-31.2Vdc (24Vdc nom.)
• Connection type: Push-in CAGE CLAMP spring connections
• Mounting mode: DIN-35 rail
• Digital outputs: 1 x digital output (SPDT (Single Pole Double Throw) rly. contact type; 250Vac; 6A)
• Analog inputs: 1 x analog input (RTD Pt10 / Pt2000 / Thermocouples types J; K; E; R; N; S; T; B; C / Resistor; 0-10kΩ / Potentiometer; Resistor; 0-10kΩ; 2-wire / 3-wire / 4-wire)
• Analog outputs: 1 x analog output (-24...+24mA / -12...+12Vdc)
• Measurement accuracy: ≤ 0.1% (transmission error)|≤ 0.01%/K (temperature coefficient)
• Dimensions: H110mm x W22.5mm x D107mm
• Net Width (mm): 22.5mm
• Ambient air temperature for operation: -40°C...+70°C
• Ambient air temperature for storage: -40°C...+85°C
• Humidity: 5-95% relative humidity (RH; non-condensing)
• Current consumption: 70mA (24Vdc; at nominal load)
• Customs Tariff Number: 85437090300
• GTIN code: 4055143655507
• ETIM code: EC002919
• eClass code: 27-21-01-29
• Order code / Manufacturer SKU: 2857-535
• Manufacturer product status: Commercialized
• Equivalent to: 2857535
• EAN code: 4055143655507
• Compliant with standard(s): Safety and protection|- Overvoltage category -- II|CE|EN 61010-1|EN 61373|EMC immunity to interference|- EN 61000-6-2|- EN 61326-2-3|EMC emission of interference|- EN 61000-6-3|- EN 61326-2-3|General approvals|- EAC - GZO Almaty Standart - TP TC 020/2011 - certificate EAC CoC 03083|- EAC - GZO Almaty Standart - TP TC 004/2011 - certificate EAC CoC 03084|- UL - Underwriters Laboratories Inc. (ORDINARY LOCATIONS) - UL 61010-2-201 - certificate E175199|RoHS compliant with exemption (6(c) / 7(a) / 7(c)-I / 7(c)-II)
• Location of origin: Germany
• Degree of pollution: 2
• Level 1 category: Electrical components
• Level 2 category: Metering devices
• Level 3 category: Measurement sensors
• Level 4 category: Transducers
• Product title: Temperature signal transducer / conditioner - analog output - WAGO (JUMPFLEX series)

Commercial data

• Country of origin: DE
• Customs tariff number: 85437090300
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-21-01-29
• eCl@ss 9.0: 27-21-01-29
• ETIM 8.0: EC002919
• ETIM 9.0: EC002919
• GTIN: 4055143655507
• Packaging type: bag
• PU (SPU): 1 pcs

Connection data

• Connection technology: Push-in CAGE CLAMP^®
• Fine-stranded conductor: 0.2 … 2.5 mm² / 24 … 12 AWG
• Solid conductor: 0.2 … 2.5 mm² / 24 … 12 AWG
• Strip length: 9 … 10 mm / 0.35 … 0.39 inches
• WAGO connector: picoMAX^® 5.0

Environmental Product Compliance

• CAS-No.: 1303-86-2|1317-36-8|7439-92-1|75980-60-8|79-94-7
• REACH Candidate List Substance: 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol|Diboron trioxide|Lead|Lead monoxide|Perfluorobutane sulfonic acid (PFBS) and its salts|Phosphine oxide, diphenyl(2,4,6-trimethylbenzoyl)-
• RoHS Compliance Status: Compliant,With Exemption
• RoHS Exemption: 6(c)|7(a)|7(c)-I|7(c)-II
• SCIP notification number (Austria): beac9352-aef0-42a2-b7f0-a83392390cff
• SCIP notification number (Belgium): eeb9df68-9e28-4e3e-92ac-8ef9ab87c305
• SCIP notification number (Bulgaria): 61e19286-b116-40e0-90e0-0d98747b35c6
• SCIP notification number (Czech Republic): ccfdefc9-f0b3-4620-b412-b6adce9425b4
• SCIP notification number (Denmark): 1d7e7fd7-5fa4-47bb-96ed-30ae8a6161f6
• SCIP notification number (Finland): 4e130f44-9148-4325-97d7-6d58f5d97835
• SCIP notification number (France): 30e01dd3-5b6f-498f-9b37-54a0502b9f9e
• SCIP notification number (Germany): ef2b2ca0-d8d7-4e0c-81db-287ee7497471
• SCIP notification number (Hungary): 93a905b5-7155-4b52-8695-61a9c5ddcc08
• SCIP notification number (Italy): 7a1074e6-72fb-4fec-bfaa-c1cebf85968f
• SCIP notification number (Netherlands): e6753189-be82-47d8-93e5-8cabc3e2d142
• SCIP notification number (Poland): 91684334-ada5-46cb-8352-31567b986a40
• SCIP notification number (Romania): 9a8786ac-ee1e-477b-8851-a03a87e77e4a
• SCIP notification number (Sweden): b9aa1443-ef24-4f0e-a0f8-b04a5d1a7f4f

Environmental requirements

• Ambient temperature (operation): -40 … +70 °C
• Ambient temperature (storage): -40 … +85 °C
• Operating altitude (max.): 2000m
• Pollution degree: 2
• Relative humidity: 5 … 95 % (non-condensing)
• Temperature range of connection cable: ≥ (T_ambient + 10 K)
• Temperature range of connection cable (UL): 85°C

Material data

• Fire load: 2.158MJ
• Weight: 126.9g

Mechanical data

• Mounting type: DIN-35 rail

Notes

• Note: This product is supplied with 24 VDC, which can be commoned using lateral push-in type jumper bars: (6.1) U_S+ (BR) and (6.2) GND 2 (BR). With this variant, it is necessary to ensure that the maximum permissible total current of 1 A is not exceeded.

Physical data

• Depth from upper-edge of DIN-rail: 107 mm / 4.213 inches
• Height: 110 mm / 4.331 inches
• Width: 22.5 mm / 0.886 inches

Safety and protection

• Insulation coordination (UL) - Insulation type (input/analog output/relay output/supply): Reinforced insulation (safe isolation)
• Insulation coordination (UL) - Insulation type (input/DIN-rail contact/relay output/supply): Reinforced insulation (safe isolation)
• Insulation coordination (UL) - Overvoltage category: II
• Insulation coordination (UL) - Pollution degree: 2
• Measurement category per EN/UL 61010-2-030: CAT II (input)
• Note on insulation parameters: The digital output (DO) is at the potential of the supply. The service interface is located on the analog output potential. The DIN-rail contact (functional ground) is capacitively coupled to the analog output.|The digital output (DO) is at the potential of the supply.|The service interface is located on the analog output potential.|The DIN-rail contact (functional ground) is capacitively coupled to the analog output.
• Protection type: IP20
• Rated voltage: 300V
• Rated voltage of the measurement circuit connections per EN 61010-2-030: AC 300 V
• Test voltage - Test voltage (input/analog output/relay output/supply): 3 kVAC; 50 … 60 Hz; 1 min
• Test voltage - Test voltage (input/DIN-rail contact/relay output/supply): 3 kVAC; 50 … 60 Hz; 1 min
• Test voltage - Test voltage (input/output/supply): 3 kVAC; 50 Hz; 1 min

Standards and specifications

• Conformity marking: CE
• EMC emission of interference: EN 61000-6-3; EN 61326-2-3
• EMC immunity to interference: EN 61000-6-2; EN 61326-2-3
• Standards/specifications: EN 61010-1|EN 61373|EN 61010-1|EN 61373

Technical data

• Configuration - Configuration options: WAGO Configuration Display|WAGO Interface Configuration Software|WAGO Interface Configuration App|WAGO Configuration Display
• Input - Input signal type: RTD sensors|Potentiometer|Resistance|TC sensors
• Input (resistors) - Input range (potentiometer): 0 … 10 kΩ
• Input (resistors) - Input range (resistor): 0 … 10 kΩ
• Input (resistors) - Measurement span (min.): 50Ω
• Input (RTD sensors) - Measurement span (RTD) min.: 50K
• Input (RTD sensors) - Sensor connection: 2-wire; 3-wire; 4-wire; differential; potentiometer
• Input (RTD sensors) - Sensor power supply (RTD) max.: ≤ 0.5 mA
• Input (RTD sensors) - Sensor types (RTD): Pt10 … Pt2000 (expandable)
• Input (RTD sensors) - Temperature measurement range (RTD): -200 … +850 °C
• Input (TC sensors) - Cold junction compensation: ON/OFF (default: ON)
• Input (TC sensors) - Cold junction error: 3 K (typ. 2 K )
• Input (TC sensors) - Measurement span (TC) min.: 100K
• Input (TC sensors) - Sensor types (TC): Type J|Type K|Type E|Type R|Type N|Type S|Type T|Type B|Type C
• Input (TC sensors) - Temperature measurement range (TC): -200 … 1200 °C (Type J)|-200 … 1372 °C (Type K)|-200 … 1000 °C (Type E)|250 … 1768 °C (Type R)|-200 … 1300 °C (Type N)|-50 … 1664 °C (Type S)|-200 … 400 °C (Type T)|250 … 1820 °C (Type B)|0 … 2320 °C (Type C)
• Measurement error - Temperature coefficient: ≤ 0.01 %/K
• Measurement error - Transmission error (typ.): ≤ 0.1 % at full measurement span
• Measurement error - Transmission error for the set measurement range: ≤ (100 K/set measurement range [K]) %
• Output (analog) - Load impedance (current output): ≤ 600 Ω
• Output (analog) - Load impedance (voltage output): ≥ 2 kΩ
• Output (analog) - Output signal (current): ±24 mA
• Output (analog) - Output signal (voltage): ±12 V
• Output (analog) - Output signal type: Current|Voltage
• Output (digital) - Configurable rise/fall delay time (DO): 0 … 60 s (via software)
• Output (digital) - Continuous current (DO) max.: 100 mA (no internal restriction)
• Output (digital) - Number of switching thresholds (DO): 1 or 2 (adjustable)
• Output (digital) - Switching voltage (DO) max.: Supply voltage (applied) - 0.3 V
• Output (relay) - Configurable rise/fall delay time (relay): 0 … 60 s (via software)
• Output (relay) - Dielectric strength (open contact) (AC, 1 min): 1kV_rms|1 kVrms
• Output (relay) - Number of changeover/switchover contacts: 1
• Output (relay) - Number of switching thresholds (relay): 1 or 2 (adjustable)
• Output (relay) - Switching Voltage, Max.: 250 VAC
• Power supply - Current consumption at nominal supply voltage: ≤ 70 mA (+ I_DO)
• Power supply - Nominal supply voltage U_S: 24 VDC
• Power supply - Power supply type: 24 VDC
• Power supply - Supply voltage range: -60 … +30 %
• Signal processing - Software filter (adjustable): Moving average value (filter level: 30)
• Signal processing - Step response (typ.): 130 ms (2-wire)|700 ms (3-wire)|700 ms (4-wire)|600 ms (differential)|500 ms (potentiometer)|150 ms (cold junction compensation Off)|400 ms (cold junction compensation On)
