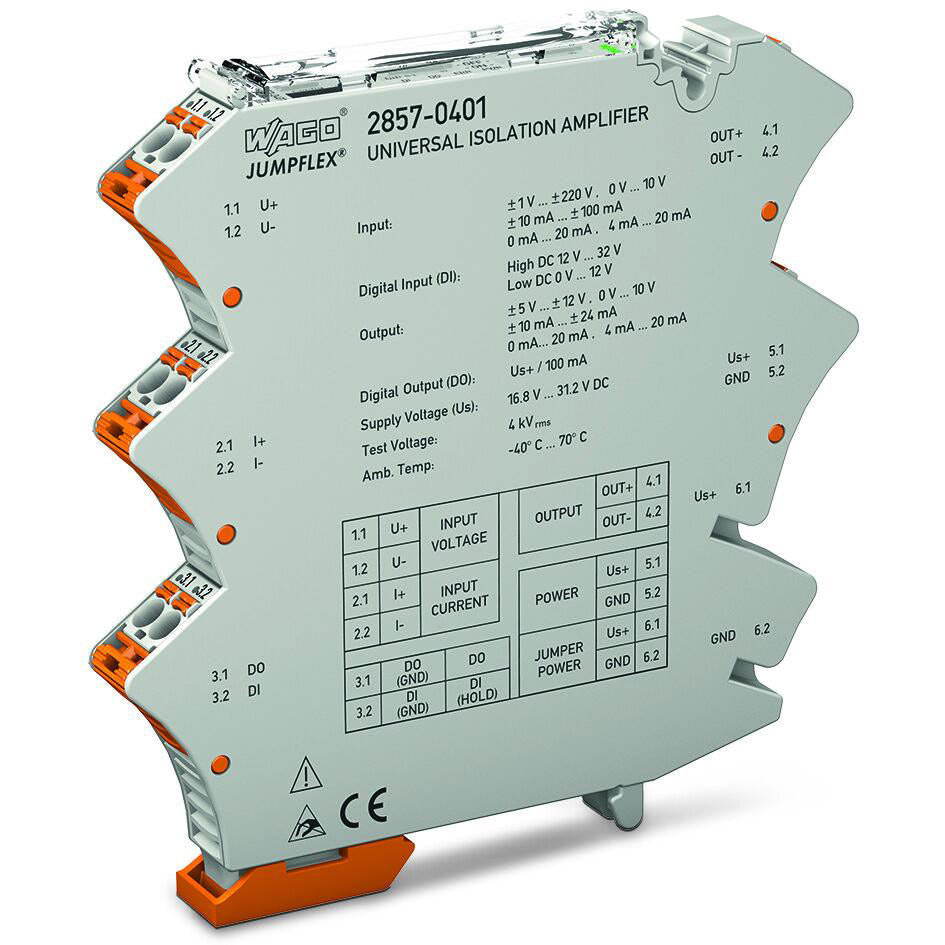

Wago - 2857-401

Single-channel isolation amplifier with DIP switch + interface configuration via software / app / displ. - WAGO (2857 JUMPFLEX series) - with 1 x analog input (-1...+1mA / -10...+10mA / -20...+20mA / -100...+100mA / 0-1mA / 0-10mA / 2-10mA / 0-20mA / 4-20mA / 0-100mA / -1...+1Vdc / -10...+10Vdc / -30...+30Vdc / -100...+100Vdc / -200...+200Vdc / 0-5Vdc / 1-5Vdc / 0-10Vdc / 2-10Vdc / 0-220Vdc) + 1 x analog output (-10...+10mA / -20...+20mA / 0-10mA / 2-10mA / 0-20mA / 4-20mA / -5...+5Vdc / -10...+10Vdc / 0-5Vdc / 1-5Vdc / 0-10Vdc / 2-10Vdc) - supply voltage 16.8-31.2Vdc (24Vdc nom.) - with Push-in CAGE CLAMP spring connections - DIN-35 rail mounting (12.5mm width) - IP20 - rated for -40°C...+70°C ambient - equivalent to 2857401

Specifications

• Primary brand: WAGO
• Functions: Single-channel isolation amplifier|Clipping
• Design: DIP switch|interface configuration via software / app / displ.
• Supply voltage (DC): 16.8-31.2Vdc (24Vdc nom.)
• Frequency: limit sw.; 0kHz / 5kHz / 100Hz / 30Hz (configurable via DIP sw. or software)
• Connection type: Push-in CAGE CLAMP spring connections
• Mounting mode: DIN-35 rail
• Analog inputs: 1 x analog input (-1...+1mA / -10...+10mA / -20...+20mA / -100...+100mA / 0-1mA / 0-10mA / 2-10mA / 0-20mA / 4-20mA / 0-100mA / -1...+1Vdc / -10...+10Vdc / -30...+30Vdc / -100...+100Vdc / -200...+200Vdc / 0-5Vdc / 1-5Vdc / 0-10Vdc / 2-10Vdc / 0-220Vdc)
• Analog outputs: 1 x analog output (-10...+10mA / -20...+20mA / 0-10mA / 2-10mA / 0-20mA / 4-20mA / -5...+5Vdc / -10...+10Vdc / 0-5Vdc / 1-5Vdc / 0-10Vdc / 2-10Vdc)
• Measurement accuracy: ≤ 0.1% (transmission error)|≤ 0.01%/K (temperature coefficient)
• Dimensions: H110mm x W12.5mm x D107mm
• Net Width (mm): 12.5mm
• Ambient air temperature for operation: -40°C...+70°C
• Ambient air temperature for storage: -40°C...+85°C
• Current consumption: 70mA (24Vdc; at nominal load)
• Customs Tariff Number: 85437090300
• GTIN code: 4050821676966
• eClass code: 27-21-01-20
• ETIM code: EC002653
• Order code / Manufacturer SKU: 2857-401
• Manufacturer product status: Commercialized
• Equivalent to: 2857401
• EAN code: 4050821676966
• Compliant with standard(s): CE|EN 50121-3-2|EN 60664-1|EN 61373|EMC immunity to interference|- EN 61000-6-2|- EN 61326-2-3|- EN 50121-3-2|EMC emission of interference|- EN 61000-6-4|- EN 61326-2-3|- EN 50121-3-2|General approvals|- EAC - GZO Almaty Standart - TP TC 020/2011 - certificate EAC CoC 03083|RoHS compliant with exemption (6(c) / 7(a) / 7(c)-I / 7(c)-II)
• Location of origin: Germany
• Level 1 category: Automation components
• Level 2 category: Sensors
• Product title: Single-channel isolation amplifier - DIP switch - WAGO (JUMPFLEX series)

Commercial data

• Country of origin: DE
• Customs tariff number: 85437090300
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-21-01-20
• eCl@ss 9.0: 27-21-01-20
• ETIM 8.0: EC002653
• ETIM 9.0: EC002653
• GTIN: 4050821676966
• Packaging type: bag
• Product Group: 6 (INTERFACE ELECTRONIC)
• PU (SPU): 1 pcs

Connection data

• Connection technology: Push-in CAGE CLAMP^®
• Fine-stranded conductor: 0.2 … 2.5 mm² / 24 … 12 AWG
• Solid conductor: 0.2 … 2.5 mm² / 24 … 12 AWG
• Strip length: 9 … 10 mm / 0.35 … 0.39 inches
• WAGO connector: picoMAX^® 5.0

Environmental Product Compliance

• CAS-No.: 11120-22-2|1303-86-2|1317-36-8|7439-92-1|75980-60-8
• REACH Candidate List Substance: Diboron trioxide|Lead|Lead monoxide|Lead silicate|Perfluorobutane sulfonic acid (PFBS) and its salts|Phosphine oxide, diphenyl(2,4,6-trimethylbenzoyl)-
• RoHS Compliance Status: Compliant,With Exemption
• RoHS Exemption: 6(c)|7(a)|7(c)-I|7(c)-II
• SCIP notification number (Austria): 8eea55dc-b68f-431d-8ad6-71ab4685f8b7
• SCIP notification number (Belgium): cf65c928-b2ea-4b3a-9b99-3229eef5e8e5
• SCIP notification number (Bulgaria): 54c1dd6b-7733-4b35-aa2c-d8a6e507aed1
• SCIP notification number (Czech Republic): b108bfe2-9898-4c87-ac03-4b07a6ae954b
• SCIP notification number (Denmark): 5c819246-3d20-4f9e-a125-75caf6a910bd
• SCIP notification number (Finland): f21f8be5-efc4-4fe2-9317-1552603d7eb4
• SCIP notification number (France): 7aa52ffe-9f09-44c5-a16e-15be89049f27
• SCIP notification number (Germany): b822b5ae-0257-4887-8a8b-2476207d28c9
• SCIP notification number (Hungary): f9e92535-69dc-449b-873d-f7eea3763dd6
• SCIP notification number (Italy): f22243c1-b45b-4045-9b6d-40040a0915a3
• SCIP notification number (Netherlands): 3021d9c8-bb88-47d3-96b3-e0cf0f1775f0
• SCIP notification number (Poland): 2681b81f-35e4-41ce-afc5-8e2ecbb312b4
• SCIP notification number (Romania): f9b8acf4-0d8d-48ce-9dd8-5079f9c063df
• SCIP notification number (Sweden): 67b47a6d-1ea9-4395-a0db-912d3f2342c2

Environmental requirements

• Ambient temperature (operation): -40 … +70 °C
• Ambient temperature (storage): -40 … +85 °C

Material data

• Fire load: 1.573MJ
• Weight: 85.4g

Mechanical data

• Mounting type: DIN-35 rail

Notes

• Note: This product is supplied with 24 VDC, which can be commoned using lateral push-in type jumper bars: (6.1) U_S+ (BR) and (6.2) GND 2 (BR). With this variant, it is necessary to ensure that the maximum permissible total current of 6 A is not exceeded.|Additional setting options via the WAGO Interface Configuration Software|This product is supplied with 24 VDC, which can be commoned using lateral push-in type jumper bars: (6.1) U_S+ (BR) and (6.2) GND 2 (BR). With this variant, it is necessary to ensure that the maximum permissible total current of 6 A is not exceeded.|Additional setting options via WAGO Interface Configuration Software or WAGO Interface Configuration App

Physical data

• Depth from upper-edge of DIN-rail: 107 mm / 4.213 inches
• Height: 110 mm / 4.331 inches
• Width: 12.5 mm / 0.492 inches

Safety and protection

• Protection type: IP20
• Test voltage - Test voltage (input/output/supply): 4 kVAC; 50 Hz; 1 min

Standards and specifications

• Conformity marking: CE
• EMC emission of interference: EN 61000-6-4; EN 61326-2-3; EN 50121-3-2
• EMC immunity to interference: EN 61000-6-2; EN 61326-2-3; EN 50121-3-2
• Standards/specifications: EN 60664-1|EN 61373|EN 50121-3-2|EN 50121-3-2|EN 60664-1|EN 61373

Technical data

• Configuration - Configuration options: WAGO Configuration Display|DIP switch|WAGO Interface Configuration Software|WAGO Interface Configuration App|WAGO Configuration Display
• Input - Input current (max.): ±120 mA
• Input - Input resistance (current input): ≤ 50 Ω
• Input - Input resistance (voltage input): ≥ 1 MΩ
• Input - Input signal (current): ±1 mA|0 … 1 mA|±10 mA|0 … 10 mA|2 … 10 mA|±20 mA|0 … 20 mA|4 … 20 mA|±100 mA|0 … 100 mA
• Input - Input signal (voltage): ±1 V|0 … 1 V|±5 V|0 … 5 V|1 … 5 V|±10 V|0 … 10 V|2 … 10 V|±30 V|0 … 30 V|±100 V|0 … 100 V|±200 V|0 … 220 V
• Input - Input signal type: Voltage (DC)|Current (DC)|Voltage|Current
• Input - Input voltage (max.): ±250 V
• Input (digital) - Hold signal: 11.8 V … U_S
• Measurement error - Temperature coefficient: ≤ 0.01 %/K
• Measurement error - Transmission error (typ.): ≤ 0.1 % of upper-range value
• Output (analog) - Load impedance (current output): ≤ 600 Ω
• Output (analog) - Load impedance (voltage output): ≥ 1 kΩ
• Output (analog) - Output signal (current): ±10 mA|0 … 10 mA|2 … 10 mA|±20 mA|0 … 20 mA|4 … 20 mA
• Output (analog) - Output signal (voltage): ±5 V|0 … 5 V|1 … 5 V|±10 V|0 … 10 V|2 … 10 V
• Output (analog) - Output signal type: Voltage|Current
• Output (digital) - Configurable rise/fall delay time (DO): 0 … 60 s (via software)
• Output (digital) - Continuous current (DO) max.: 100 mA (no internal restriction)
• Output (digital) - Number of switching thresholds (DO): 1 or 2 (adjustable)
• Output (digital) - Setting range (frequency generator): 0.3 … 100 Hz
• Output (digital) - Switching voltage (DO) max.: Supply voltage (applied) - 0.3 V
• Power supply - Current consumption at nominal supply voltage: ≤ 70 mA (+ I_DO)
• Power supply - Nominal supply voltage U_S: 24 VDC
• Power supply - Power supply type: 24 VDC
• Power supply - Supply voltage range: ±30 %
• Signal processing - Limit frequency: 10 kHz / 5 kHz / 100 Hz / 30 Hz (configurable via DIP switch or software)
• Signal processing - Software filter (adjustable): Moving average value (filter level: 30)
• Signal processing - Step response (typ.): 1 ms
