Wago - 2857-122

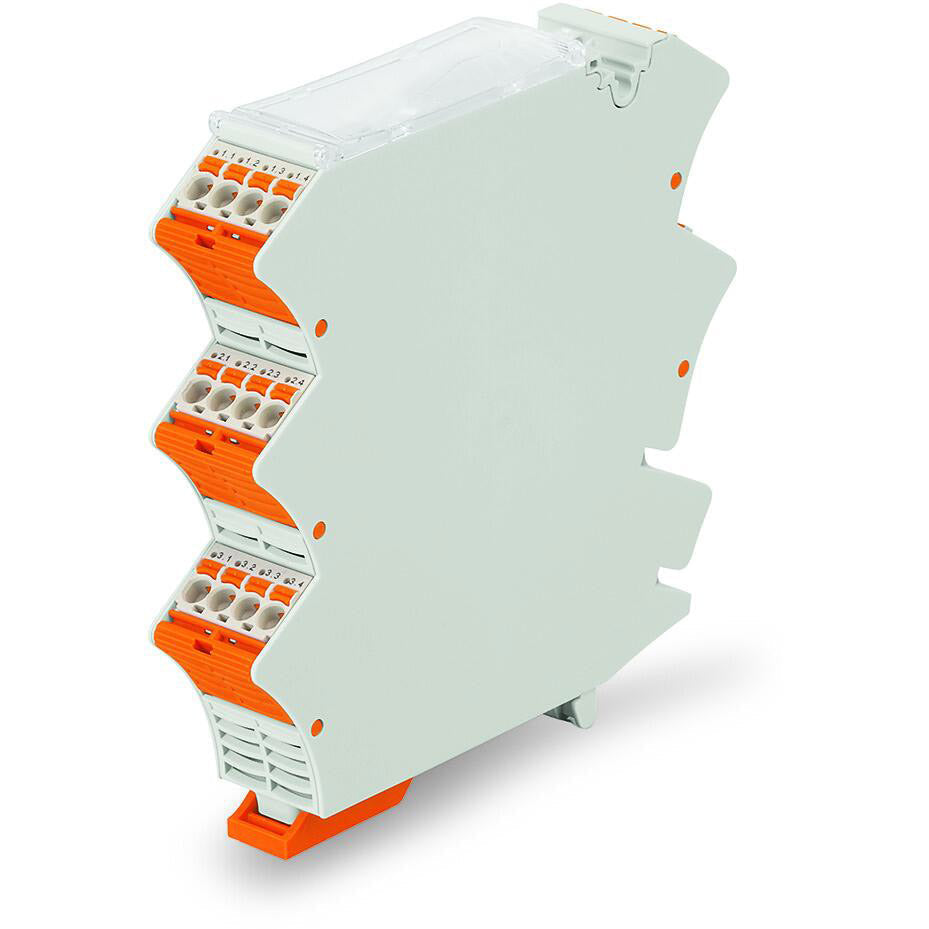

Empty DIN rail customizable universal component housing with 3-decks/levels (triple-deck) - WAGO (2857 series) - White - for 0.2mm2...2.5mm2 / for #24AWG...#12AWG - with Push-in CAGE CLAMP spring connections - DIN-35 rail mounting (22.5mm width) - equivalent to 2857122

Specifications

• Primary brand: WAGO
• Functions: Empty DIN rail customizable universal component housing
• Design: 3-decks/levels (triple-deck)|2 jumper slots
• Color: White
• Connection capacity: 12-wires (6 push-in + 6 push-in) (6+6)
• Rated operating voltage (Ue): (IEC) 250V|(CSA) 300V
• Rated impulse voltage (Uimp): (IEC) 4kV
• Connection type: Push-in CAGE CLAMP spring connections
• Cross-section: for 0.2mm2...2.5mm2 fine stranded or solid conductors|for #24AWG...#12AWG fine stranded or solid conductors
• Mounting mode: DIN-35 rail
• Dimensions: H110mm x W22.5mm x D107mm
• Net Width (mm): 22.5mm
• Material: Polycarbonate (PC)
• Ambient air temperature for operation: -40°C...+70°C
• Ambient air temperature for storage: -40°C...+85°C
• GTIN code: 4050821561439
• Customs Tariff Number: 85472000900
• eClass code: 27-18-27-02
• ETIM code: EC001031
• Order code / Manufacturer SKU: 2857-122
• Manufacturer product status: Commercialized
• Equivalent to: 2857122
• EAN code: 4050821561439
• Compliant with standard(s): General approvals|- UL - UL International Germany GmbH - UL 1059 - certificate E45172|RoHS compliant|V-0 flammability rating
• Location of origin: Germany
• Level 1 category: Electrical components
• Level 2 category: Terminal blocks
• Product title: Empty DIN rail customizable universal component housing - 3-decks/levels (triple-deck) - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85472000900
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-18-27-02
• eCl@ss 9.0: 27-18-27-02
• ETIM 8.0: EC001031
• ETIM 9.0: EC001031
• GTIN: 4050821561439
• Packaging type: box
• Product Group: 6 (INTERFACE ELECTRONIC)
• PU (SPU): 5 pcs

Connection data

• Connection technology: Push-in CAGE CLAMP^®
• Fine-stranded conductor: 0.2 … 2.5 mm² / 24 … 12 AWG
• Fine-stranded conductor; with insulated ferrule: 0.2 … 1.5 mm² / 24 … 16 AWG
• Fine-stranded conductor; with uninsulated ferrule: 0.2 … 2.5 mm² / 24 … 14 AWG
• Number of jumper slots: 2
• Number of levels: 3
• Pole number: 4
• Solid conductor: 0.2 … 2.5 mm² / 24 … 12 AWG
• Strip length: 9 … 10 mm / 0.35 … 0.39 inches

Electrical data

• Permissible power loss (max.): 3W
• Ratings per CSA - Rated current CSA (Use Group B): 15A
• Ratings per CSA - Rated current CSA (Use Group D): 10A
• Ratings per CSA - Rated voltage CSA (Use Group B): 300V
• Ratings per CSA - Rated voltage CSA (Use Group D): 300V
• Ratings per IEC/EN 60664-1 - Nominal voltage (II/2): 630V
• Ratings per IEC/EN 60664-1 - Nominal voltage (III/3): 250V
• Ratings per IEC/EN 60664-1 - Rated current: 16A
• Ratings per IEC/EN 60664-1 - Rated impulse withstand voltage (II/2): 4kV
• Ratings per IEC/EN 60664-1 - Rated impulse withstand voltage (III / 3): 4kV
• Ratings per IEC/EN 60664-1 - Rated impulse withstand voltage (III/2): 4kV
• Ratings per IEC/EN 60664-1 - Rated voltage (III/2): 320V
• Ratings per UL 1059 - Rated current UL (Use Group B): 15A
• Ratings per UL 1059 - Rated current UL (Use Group D): 10A
• Ratings per UL 1059 - Rated voltage UL (Use Group B): 300V
• Ratings per UL 1059 - Rated voltage UL (Use Group D): 300V

Environmental Product Compliance

• REACH Candidate List Substance: Perfluorobutane sulfonic acid (PFBS) and its salts
• RoHS Compliance Status: Compliant,No Exemption
• SCIP notification number (Austria): 20b824e5-d556-48d0-9390-b52546135bb6
• SCIP notification number (Belgium): 66585704-1b18-478d-ab72-fb2261a2bc90
• SCIP notification number (Bulgaria): 359d1397-7d1a-4ef2-917d-df3cdb8f9dcb
• SCIP notification number (Czech Republic): b35ace4d-829f-44cc-a021-b13342303dfb
• SCIP notification number (Denmark): d3e5ef67-bea4-48fb-a237-664dc478f183
• SCIP notification number (Finland): 4e9fbda5-8e13-486f-a7cf-723d1ac3eeb8
• SCIP notification number (France): 3acc5873-1b11-4448-a589-5a844904f35d
• SCIP notification number (Germany): dd82b1a3-1845-4083-a047-8d7dca0639fd
• SCIP notification number (Hungary): 15ea4ffb-3d30-4cca-a0a9-3ff7c6ab5420
• SCIP notification number (Italy): fa984891-090a-43d1-988a-90224f769a72
• SCIP notification number (Netherlands): 37a1cad6-6438-4efb-b3d6-65917ce2a994
• SCIP notification number (Poland): 67aa548d-ef89-46d6-bf1d-68e45a73806a
• SCIP notification number (Romania): 6e891b48-1170-46df-810b-f4d4d736751b
• SCIP notification number (Sweden): 6a34ec7a-b023-41ff-8974-a32ca79cbe2c

Environmental requirements

• Ambient temperature (operation): -40 … +70 °C
• Ambient temperature (storage): -40 … +85 °C

Material data

• Clamping spring material: Chrome-nickel spring steel (CrNi)
• Fire load: 2.158MJ
• Flammability class per UL94: V0
• Housing material: PC
• Weight: 99.7g

Mechanical data

• Mounting type: DIN-35 rail

Physical data

• Depth from upper-edge of DIN-rail: 107 mm / 4.213 inches
• Height: 110 mm / 4.331 inches
• Pin spacing: 5 mm / 0.197 inches
• Width: 22.5 mm / 0.886 inches
