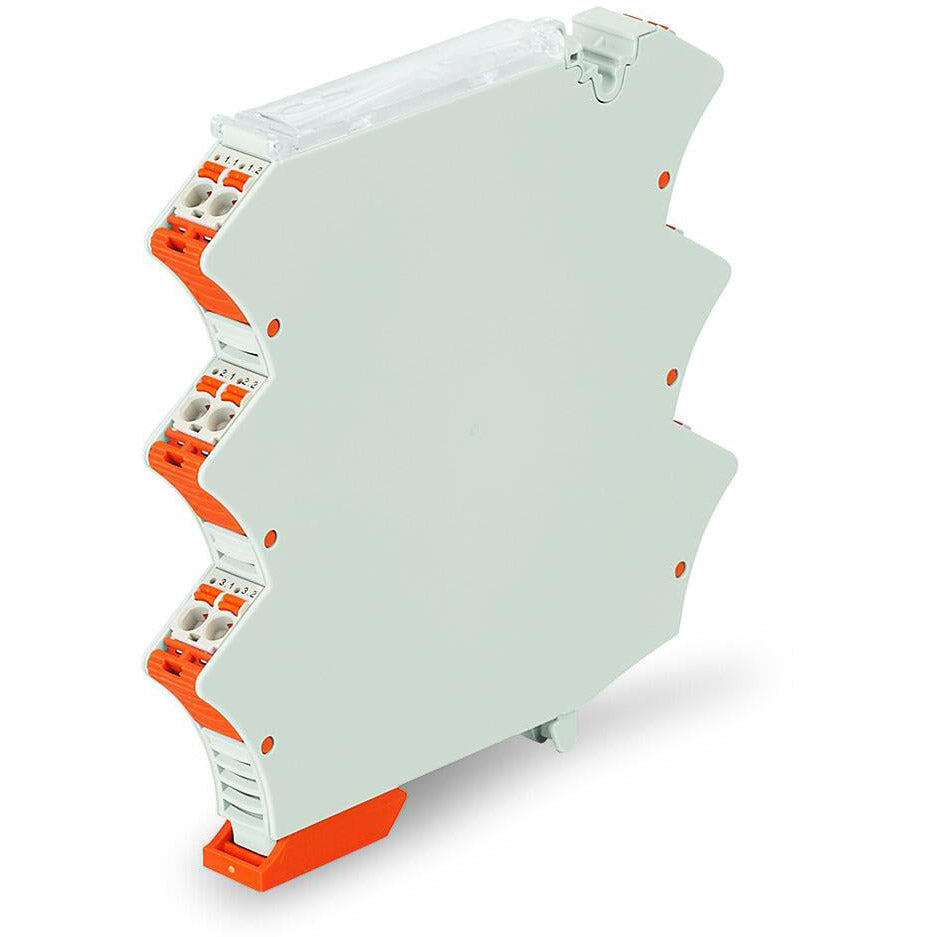

Empty DIN rail customizable universal component housing with 3-decks/levels (triple-deck) - WAGO (2857 series) - White - for 0.2mm2...2.5mm2 / for #24AWG...#12AWG - with Push-in CAGE CLAMP spring connections - DIN-35 rail mounting (12.5mm width) - equivalent to 2857103

Specifications

• Primary brand: WAGO
• Functions: Empty DIN rail customizable universal component housing
• Design: 3-decks/levels (triple-deck)
• Color: White
• Connection capacity: 12-wires (6 push-in + 6 push-in) (6+6)
• Rated operating voltage (Ue): (IEC) 250V|(CSA) 300V
• Rated impulse voltage (Uimp): (IEC) 4kV
• Connection type: Push-in CAGE CLAMP spring connections
• Cross-section: for 0.2mm2...2.5mm2 fine stranded or solid conductors|for #24AWG...#12AWG fine stranded or solid conductors
• Mounting mode: DIN-35 rail
• Dimensions: H112mm x W12.5mm x D107mm
• Net Width (mm): 12.5mm
• Material: Polycarbonate (PC)
• Ambient air temperature for operation: -40°C...+70°C
• Ambient air temperature for storage: -40°C...+85°C
• eClass code: 27-18-27-02
• GTIN code: 4050821561415
• Customs Tariff Number: 85472000900
• ETIM code: EC001031
• Order code / Manufacturer SKU: 2857-103
• Manufacturer product status: Commercialized
• Equivalent to: 2857103
• EAN code: 4050821561415
• Compliant with standard(s): General approvals|- UL - UL International Germany GmbH - UL 1059 - certificate E45172|RoHS compliant|V-0 flammability rating
• Location of origin: Germany
• Level 1 category: Electrical components
• Level 2 category: Terminal blocks
• Product title: Empty DIN rail customizable universal component housing - 3-decks/levels (triple-deck) - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85472000900
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-18-27-02
• eCl@ss 9.0: 27-18-27-02
• ETIM 8.0: EC001031
• ETIM 9.0: EC001031
• GTIN: 4050821561415
• Packaging type: box
• Product Group: 6 (INTERFACE ELECTRONIC)
• PU (SPU): 10 pcs

Connection data

• Connection technology: Push-in CAGE CLAMP^®
• Fine-stranded conductor: 0.2 … 2.5 mm² / 24 … 12 AWG
• Fine-stranded conductor; with insulated ferrule: 0.2 … 1.5 mm² / 24 … 16 AWG
• Fine-stranded conductor; with uninsulated ferrule: 0.2 … 2.5 mm² / 24 … 14 AWG
• Number of jumper slots: 0
• Number of levels: 3
• Pole number: 2
• Solid conductor: 0.2 … 2.5 mm² / 24 … 12 AWG
• Strip length: 9 … 10 mm / 0.35 … 0.39 inches

Electrical data

• Permissible power loss (max.): 2W
• Ratings per CSA - Rated current CSA (Use Group B): 15A
• Ratings per CSA - Rated current CSA (Use Group D): 10A
• Ratings per CSA - Rated voltage CSA (Use Group B): 300V
• Ratings per CSA - Rated voltage CSA (Use Group D): 300V
• Ratings per IEC/EN 60664-1 - Nominal voltage (II/2): 630V
• Ratings per IEC/EN 60664-1 - Nominal voltage (III/3): 250V
• Ratings per IEC/EN 60664-1 - Rated current: 16A
• Ratings per IEC/EN 60664-1 - Rated impulse withstand voltage (II/2): 4kV
• Ratings per IEC/EN 60664-1 - Rated impulse withstand voltage (III / 3): 4kV
• Ratings per IEC/EN 60664-1 - Rated impulse withstand voltage (III/2): 4kV
• Ratings per IEC/EN 60664-1 - Rated voltage (III/2): 320V
• Ratings per UL 1059 - Rated current UL (Use Group B): 15A
• Ratings per UL 1059 - Rated current UL (Use Group D): 10A
• Ratings per UL 1059 - Rated voltage UL (Use Group B): 300V
• Ratings per UL 1059 - Rated voltage UL (Use Group D): 300V

Environmental Product Compliance

• REACH Candidate List Substance: Perfluorobutane sulfonic acid (PFBS) and its salts
• RoHS Compliance Status: Compliant,No Exemption
• SCIP notification number (Austria): 0af7c045-e7f0-49c4-ab13-95515a58b10b
• SCIP notification number (Belgium): 8179037e-9b72-41d7-a5eb-29b7d01bb747
• SCIP notification number (Bulgaria): a39c1241-d109-4f77-9278-d8448c68b6ce
• SCIP notification number (Czech Republic): 9ab81a97-288d-4182-8c69-db510d713a69
• SCIP notification number (Denmark): f0129db3-007b-48ff-8c20-dac1a9864bb8
• SCIP notification number (Finland): fc6017bd-d824-4873-8a98-706e4026f889
• SCIP notification number (France): f6daac7f-f386-4991-948b-506a96511318
• SCIP notification number (Germany): 9b12d5fc-1866-486c-a888-3258f578fbb5
• SCIP notification number (Hungary): 195b1d2c-c9c1-44d3-b000-ed2ae82a6811
• SCIP notification number (Italy): 6af0cd4b-b2e7-4286-a5bd-00e12ed0e669
• SCIP notification number (Netherlands): 6d68db97-6af0-4947-829b-53b489e55015
• SCIP notification number (Poland): 34d059eb-b3d2-4b7a-84d2-89d6658fa921
• SCIP notification number (Romania): b55edcd4-355f-4e31-8394-3248b494f8c0
• SCIP notification number (Sweden): 939f89b5-b233-48a8-aa1c-6efb49b2c4d4

Environmental requirements

• Ambient temperature (operation): -40 … +70 °C
• Ambient temperature (storage): -40 … +85 °C

Material data

• Clamping spring material: Chrome-nickel spring steel (CrNi)
• Fire load: 1.606MJ
• Flammability class per UL94: V0
• Housing material: PC
• Weight: 66g

Mechanical data

• Mounting type: DIN-35 rail

Physical data

• Depth from upper-edge of DIN-rail: 107 mm / 4.213 inches
• Height: 112 mm / 4.41 inches
• Pin spacing: 5 mm / 0.197 inches
• Width: 12.5 mm / 0.492 inches
