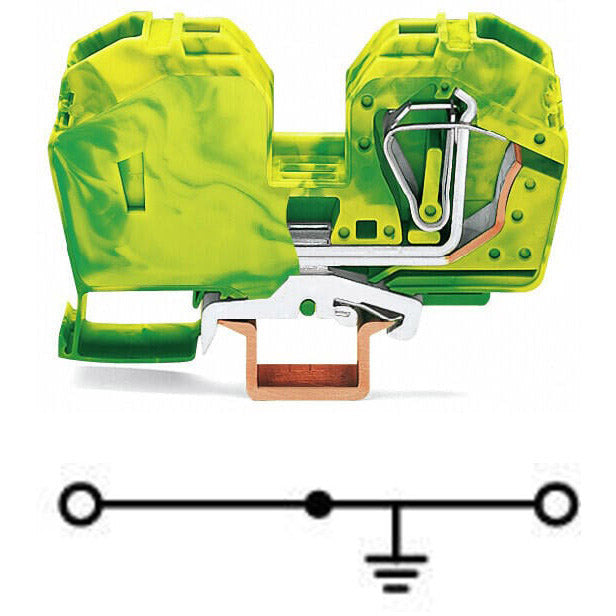

Wago - 285-637

Ground/earthing terminal block with 1-deck/level + built-in end plate (terminal is closed on both sides) + side/lateral and center marking slots - WAGO (285 series) - Green-Yellow - 1 grounding / protective-earth (1PE) / 2-wires (1 clamp + 1 clamp) (1+1) - 35mm2 nominal cross-section - for 6mm2...35mm2 / for #10AWG...#2AWG - with CAGE CLAMP spring connections - DIN-35 rail (35 x 15) mounting (16mm width) - equivalent to 285637

Specifications

• Primary brand: WAGO
• Functions: Ground/earthing terminal block
• Design: 1-deck/level|built-in end plate (terminal is closed on both sides)|side/lateral and center marking slots
• Poles: 1 grounding / protective-earth (1PE)
• Temperature: Processing temperature -35°C...+85°C|Continuous operating temperature -60°C...+105°C
• Color: Green-Yellow
• Connection capacity: 2-wires (1 clamp + 1 clamp) (1+1)
• Connection type: CAGE CLAMP spring connections
• Cross-section: for 6mm2...35mm2 fine stranded or solid conductors|for #10AWG...#2AWG fine stranded or solid conductors|35mm2 nominal cross-section
• Mounting mode: DIN-35 rail (35 x 15)
• Dimensions: H100mm x W16mm x D53mm
• Net Width (mm): 16mm
• Material: Polyamide (PA) 66
• Customs Tariff Number: 85369010000
• ETIM code: EC000901
• GTIN code: 4045454218768
• eClass code: 27-14-11-41
• Order code / Manufacturer SKU: 285-637
• Manufacturer product status: Commercialized
• Equivalent to: 285637
• EAN code: 4045454218768
• Compliant with standard(s): General approvals|- CCA - DEKRA Certification B.V. - EN 60947 - certificate NTR NL-7707|- CQC - CHINA QUALITY CERT. CENTRE - GB/T 13140.3 - certificate CQC04003010080|- CSA - DEKRA Certification B.V. - C22.2 No. 158 - certificate 154112|- CSA - DEKRA Certification B.V. - C22.2 - certificate 154112|- KEMA/KEUR - DEKRA Certification B.V. - EN 60947 - certificate 71-105562|- UL - Underwriters Laboratories Inc. - UL 1059 - certificate E45172|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for marine applications|- ABS - American Bureau of Shipping - EN 60947 - certificate 20-HG1941090-PDA|- BV - Bureau Veritas S.A. - EN 60947 - certificate 07436/F0 BV|- DNV GL - Det Norske Veritas Germanischer Lloyd - certificate TAE00001V2|- LR - Lloyds Register - EN 60947 - certificate 91/20112 (E9)|Approvals for hazardous areas|- AEx - Underwriters Laboratories Inc. - certificate E185892 (AEx eb IIC resp. Ex eb IIC)|RoHS compliant|material group I|V-0 flammability rating
• Location of origin: Poland
• Level 1 category: Electrical components
• Level 2 category: Terminal blocks
• Product title: Ground/earthing terminal block - 1-deck/level - WAGO

Commercial data

• Country of origin: PL
• Customs tariff number: 85369010000
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-14-11-41
• eCl@ss 9.0: 27-14-11-41
• ETIM 8.0: EC000901
• ETIM 9.0: EC000901
• GTIN: 4045454218768
• Packaging type: box
• Product Group: 1 (Rail Mounted Terminal Blocks)
• PU (SPU): 15 pcs

Connection data

• Clamping units: 2
• Connection 1 - Actuation type: Operating tool
• Connection 1 - Connectable conductor materials: Copper
• Connection 1 - Connection technology: CAGE CLAMP^®
• Connection 1 - Fine-stranded conductor: 6 … 35 mm² / 10 … 2 AWG
• Connection 1 - Nominal cross-section: 35 mm²
• Connection 1 - Solid conductor: 6 … 35 mm² / 10 … 2 AWG
• Connection 1 - Strip length: 23 mm / 0.91 inches
• Connection 1 - Wiring direction: Front-entry wiring
• Number of levels: 1
• Total number of potentials: 1

Electrical data

• Ratings per IEC/EN - Ratings per: IEC/EN 60947-7-2

Environmental Product Compliance

• CAS-No.: 7439-92-1
• REACH Candidate List Substance: Lead
• RoHS Compliance Status: Compliant,No Exemption
• SCIP notification number (Austria): f7ac8c76-59d3-482f-9ab4-4121cbef8bbb
• SCIP notification number (Belgium): 398bd818-bb62-45c8-8798-94905b1c3696
• SCIP notification number (Bulgaria): 1c41d639-f7e3-4673-b3c8-818c910c6322
• SCIP notification number (Czech Republic): c8da9a3b-10d0-4102-a083-f9c7944d5d6b
• SCIP notification number (Denmark): e78972b7-07ef-4c72-a0b7-d5658547b96c
• SCIP notification number (Finland): 13a2a43d-4055-432d-b311-9ba0dad9bf41
• SCIP notification number (France): 4030072d-0831-42ec-b1a7-bf9e84c5a61b
• SCIP notification number (Germany): 10abc830-187d-4d90-9d49-14ea73d7defb
• SCIP notification number (Hungary): 32f5b102-c7c8-4d9c-acff-223f6757fd01
• SCIP notification number (Italy): 9cfb5681-9cf5-4069-97ff-7855cf3c5eaf
• SCIP notification number (Netherlands): 173c9d28-d10e-47bd-858c-12bcd4877d36
• SCIP notification number (Poland): aa43d6d2-9d18-4cc0-9a4e-11f895406ad5
• SCIP notification number (Romania): db4ce30a-5417-4266-8072-be822528b9c0
• SCIP notification number (Sweden): a6fe5ef4-2d42-441b-bb4a-ad1c7d3bd3da

Environmental requirements

• Continuous operating temperature: -60 … +105 °C
• Processing temperature: -35 … +85 °C

Material data

• Color: green-yellow
• Fire load: 0.144MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Material group: I
• Note (material data):
  Information on material specifications can be found here

• Weight: 107.8g

Mechanical data

• Design: horizontal type
• Marking level: Center/side marking
• Mounting (note): only suitable for DIN 35 x 15 rail
• Mounting type: DIN-35 rail

Physical data

• Depth from upper-edge of DIN-rail: 53 mm / 2.087 inches
• Height: 100 mm / 3.937 inches
• Width: 16 mm / 0.63 inches
