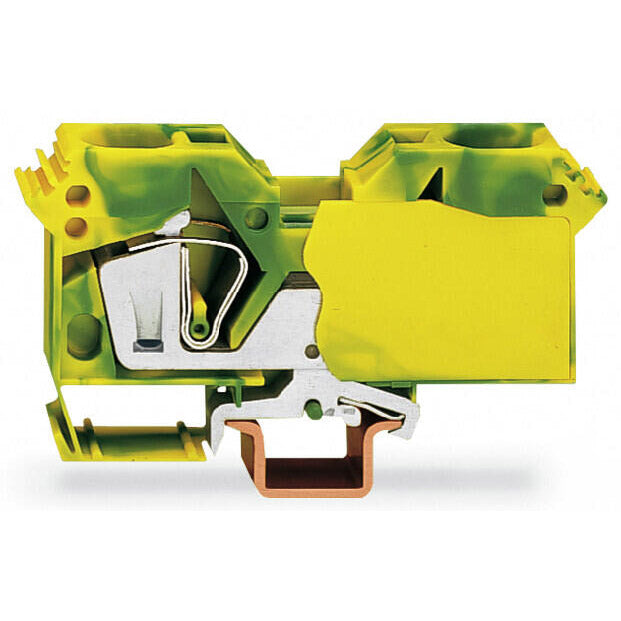

Wago - 285-607

Ground/earthing terminal block with 1-deck/level + side/lateral marking slots - WAGO (285 series) - Green-Yellow - 1 grounding / protective-earth (1PE) / 2-wires (1 clamp + 1 clamp) (1+1) - 35mm2 nominal cross-section - with CAGE CLAMP spring connections - DIN-35 rail (35 x 15) mounting (16mm width) - equivalent to 285607

Specifications

• Primary brand: WAGO
• Functions: Ground/earthing terminal block
• Design: 1-deck/level|side/lateral marking slots
• Poles: 1 grounding / protective-earth (1PE)
• Temperature: Processing temperature -35°C...+85°C|Continuous operating temperature -60°C...+105°C
• Color: Green-Yellow
• Connection capacity: 2-wires (1 clamp + 1 clamp) (1+1)
• Connection type: CAGE CLAMP spring connections
• Cross-section: for 6mm2...35mm2 solid conductors|for #8AWG...#2AWG solid conductors|35mm2 nominal cross-section
• Mounting mode: DIN-35 rail (35 x 15)
• Dimensions: H115.5mm x W16mm x D52.5mm
• Net Width (mm): 16mm
• Material: Polyamide (PA) 66
• GTIN code: 4045454116101
• eClass code: 27-14-11-41
• ETIM code: EC000901
• Customs Tariff Number: 85369010000
• Order code / Manufacturer SKU: 285-607
• Manufacturer product status: Commercialized
• Equivalent to: 285607
• EAN code: 4045454116101
• Compliant with standard(s): General approvals|- CCA - DEKRA Certification B.V. - EN 60947 - certificate NTR NL-7707|- CQC - CHINA QUALITY CERT. CENTRE - GB/T 13140.3 - certificate CQC04003010080|- CSA - DEKRA Certification B.V. - C22.2 No. 158 - certificate 154112|- KEMA/KEUR - DEKRA Certification B.V. - EN 60947 - certificate 71-105562|- UL - Underwriters Laboratories Inc. - UL 1059 - certificate E45172|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for marine applications|- ABS - American Bureau of Shipping - EN 60947 - certificate 20-HG1941090-PDA|- BV - Bureau Veritas S.A. - EN 60947 - certificate 07436/F0 BV|- DNV GL - Det Norske Veritas Germanischer Lloyd - certificate TAE00001V2|- LR - Lloyds Register - EN 60947 - certificate 91/20112 (E9)|Approvals for hazardous areas|- AEx - Underwriters Laboratories Inc. - certificate E185892 (AEx eb IIC resp. Ex eb IIC)|RoHS compliant|material group I|V-0 flammability rating
• Location of origin: Germany
• Level 1 category: Electrical components
• Level 2 category: Terminal blocks
• Product title: Ground/earthing terminal block - 1-deck/level - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85369010000
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-14-11-41
• eCl@ss 9.0: 27-14-11-41
• ETIM 8.0: EC000901
• ETIM 9.0: EC000901
• GTIN: 4045454116101
• Packaging type: box
• Product Group: 1 (Rail Mounted Terminal Blocks)
• PU (SPU): 15 pcs

Connection data

• Clamping units: 2
• Connection 1 - Actuation type: Operating tool
• Connection 1 - Connectable conductor materials: Copper
• Connection 1 - Connection technology: CAGE CLAMP^®
• Connection 1 - Nominal cross-section: 35 mm²
• Connection 1 - Solid conductor: 6 … 35 mm² / 8 … 2 AWG
• Connection 1 - Strip length: 23 mm / 0.91 inches
• Connection 1 - Wiring direction: Front-entry wiring
• Number of levels: 1
• Total number of potentials: 1

Electrical data

• Ratings per IEC/EN - Ratings per: IEC/EN 60947-7-2

Environmental Product Compliance

• CAS-No.: 7439-92-1
• REACH Candidate List Substance: Lead
• RoHS Compliance Status: Compliant,No Exemption
• SCIP notification number (Austria): e5944eac-2fca-4a7d-a12e-e2accf7d449b
• SCIP notification number (Belgium): 683c0e79-3405-4b8a-a51a-0a25d15bfc76
• SCIP notification number (Bulgaria): c0b0fd45-d926-4e42-a713-91da023a5778
• SCIP notification number (Czech Republic): a75cf4f3-3c9d-4a49-91cd-e705a00e0a39
• SCIP notification number (Denmark): 3ec59c00-4e46-4c85-940e-2d586c190774
• SCIP notification number (Finland): 8547406f-401b-4681-a99d-356c283dce37
• SCIP notification number (France): 25a9e600-83fc-4b7e-a187-a8725e935460
• SCIP notification number (Germany): efa64b14-e7c5-42cd-8e89-717781b9487c
• SCIP notification number (Hungary): 6ec83af9-31b7-4006-8766-90021554834b
• SCIP notification number (Italy): c1ba2cbd-82ad-4080-9120-c73c7b6c244b
• SCIP notification number (Netherlands): f47fe414-599b-4710-b813-def7e7d165cc
• SCIP notification number (Poland): 4957e9e6-08b5-46dd-8b31-7dbaaaded3d2
• SCIP notification number (Romania): 33b72bd7-736f-4111-8485-2ef3a35604fe
• SCIP notification number (Sweden): 7085483b-3bec-4094-9783-f29cf5199752

Environmental requirements

• Continuous operating temperature: -60 … +105 °C
• Processing temperature: -35 … +85 °C

Material data

• Color: green-yellow
• Fire load: 1.164MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Material group: I
• Note (material data):
  Information on material specifications can be found here

• Weight: 152.3g

Mechanical data

• Design: horizontal type
• Marking level: Side marking
• Mounting (note): only suitable for DIN 35 x 15 rail
• Mounting type: DIN-35 rail

Physical data

• Depth from upper-edge of DIN-rail: 52.5 mm / 2.067 inches
• Height: 115.5 mm / 4.547 inches
• Width: 16 mm / 0.63 inches
