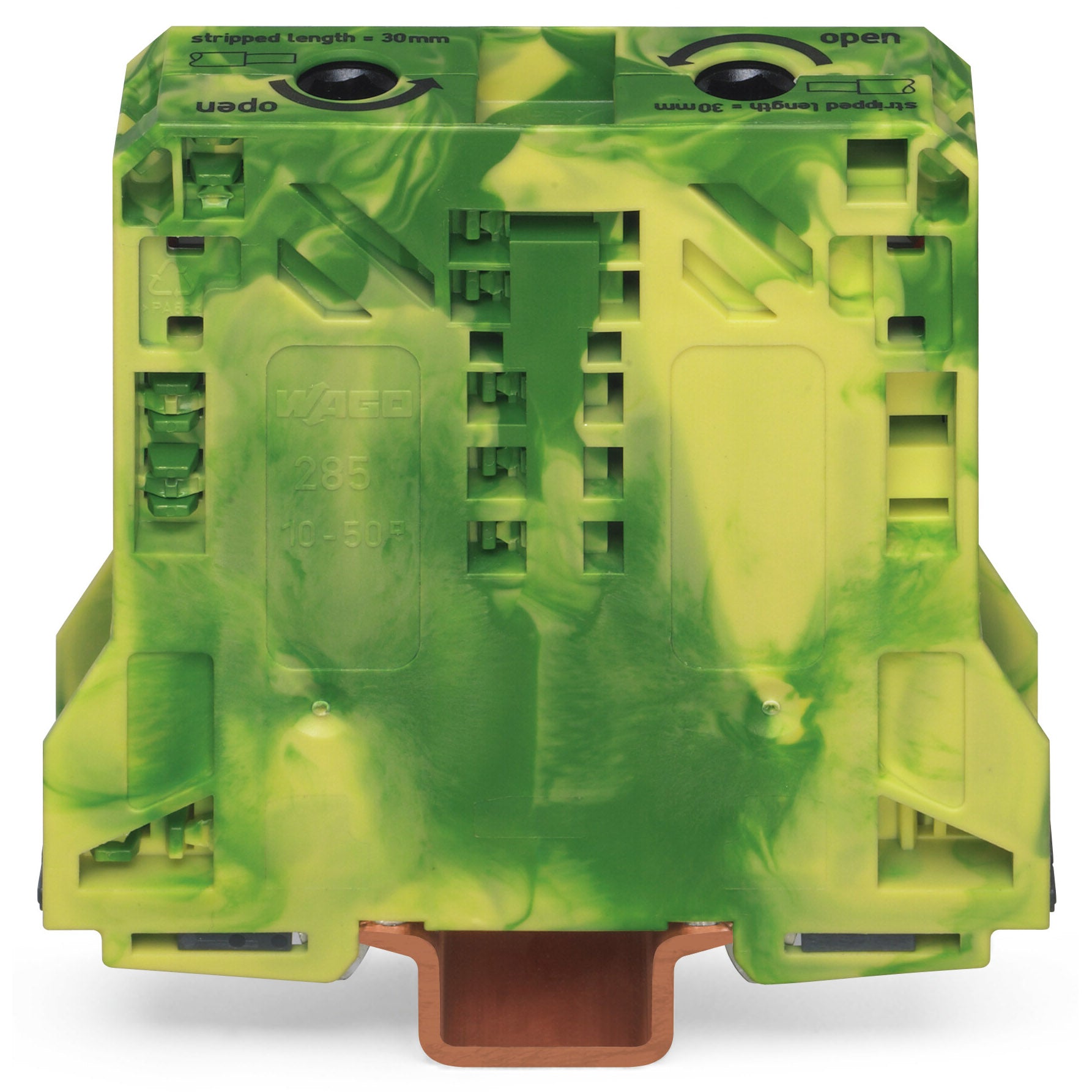

Wago - 285-157

Ground/earthing terminal block with 1-deck/level + side/lateral marking slots - WAGO (285 series) - Green-Yellow - 1 grounding / protective-earth (1PE) / 2-wires (1 clamp + 1 clamp) (1+1) - 50mm2 nominal cross-section - for 10mm2...70mm2 / for #8AWG...#2/0AWG - with POWER CAGE-CLAMP screw connections - DIN-35 rail (35 x 15) mounting (20mm width) - equivalent to 285157

Specifications

• Primary brand: WAGO
• Functions: Ground/earthing terminal block
• Design: 1-deck/level|side/lateral marking slots|side/lateral wire entry|2 jumper slots
• Poles: 1 grounding / protective-earth (1PE)
• Temperature: Processing temperature -35°C...+85°C|Continuous operating temperature -60°C...+105°C
• Color: Green-Yellow
• Connection capacity: 2-wires (1 clamp + 1 clamp) (1+1)
• Connection type: POWER CAGE-CLAMP screw connections
• Cross-section: for 10mm2...70mm2 fine stranded conductors|for 10mm2...50mm2 solid conductors|for 10mm2...50mm2 fine stranded conductors with insulated ferrule|for #8AWG...#2/0AWG fine stranded conductors|for #8AWG...#1/0AWG solid conductors|for #8AWG...#1/0AWG fine stranded conductors with insulated ferrule|50mm2 nominal cross-section
• Mounting mode: DIN-35 rail (35 x 15)
• Dimensions: H94mm x W20mm x D87mm
• Net Width (mm): 20mm
• Material: Polyamide (PA) 66
• ETIM code: EC000901
• eClass code: 27-14-11-41
• Customs Tariff Number: 85369010000
• GTIN code: 4045454507435
• Order code / Manufacturer SKU: 285-157
• Manufacturer product status: Commercialized
• Equivalent to: 285157
• EAN code: 4045454507435
• Compliant with standard(s): General approvals|- CCA - DEKRA Certification B.V. - EN 60947 - certificate NTR NL-7707|- CSA - DEKRA Certification B.V. - C22.2 No. 158 - certificate 154112|- KEMA/KEUR - DEKRA Certification B.V. - EN 60947 - certificate 71-105562|- UL - Underwriters Laboratories Inc. - UL 1059 - certificate E45172|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- Railway - WAGO GmbH & Co. KG - certificate Z00004420.000|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for hazardous areas|- AEx - Underwriters Laboratories Inc. - certificate E185892 (AEx eb IIC resp. Ex eb IIC)|RoHS compliant|material group I|V-0 flammability rating
• Location of origin: Poland
• Level 1 category: Electrical components
• Level 2 category: Terminal blocks
• Product title: Ground/earthing terminal block - 1-deck/level - WAGO

Commercial data

• Country of origin: PL
• Customs tariff number: 85369010000
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-14-11-41
• eCl@ss 9.0: 27-14-11-41
• ETIM 8.0: EC000901
• ETIM 9.0: EC000901
• GTIN: 4045454507435
• Packaging type: box
• Product Group: 1 (Rail Mounted Terminal Blocks)
• PU (SPU): 5 pcs

Connection data

• Clamping units: 2
• Connection 1 - Actuation type: T-wrench; 8 mm
• Connection 1 - Connectable conductor materials: Copper
• Connection 1 - Connection technology: POWER CAGE CLAMP
• Connection 1 - Fine-stranded conductor: 10 … 70 mm² / 8 … 2/0 AWG
• Connection 1 - Fine-stranded conductor; with insulated ferrule: 10 … 50 mm² / 8 … 1/0 AWG
• Connection 1 - Fine-stranded conductor; with uninsulated ferrule: 10 … 50 mm² / 8 … 1/0 AWG
• Connection 1 - Nominal cross-section: 50 mm²
• Connection 1 - Solid conductor: 10 … 50 mm² / 8 … 1/0 AWG
• Connection 1 - Stranded conductor: 10 … 50 mm² / 8 … 1/0 AWG
• Connection 1 - Strip length: 30 mm / 1.18 inches
• Connection 1 - Wiring direction: Side-entry wiring
• Number of jumper slots: 2
• Number of levels: 1
• Total number of potentials: 1

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Continuous operating temperature: -60 … +105 °C
• Environmental Testing (Environmental Conditions) - Acceleration: 0.101g (highest test level used for all axes)|0.572g (highest test level used for all axes)|5g (highest test level used for all axes)
• Environmental Testing (Environmental Conditions) - Extended test scope: Monitoring for contact faults/interruptions: Passed|Passed
• Environmental Testing (Environmental Conditions) - Extended test scope: Voltage drop measurement before and after each axis: Passed|Passed
• Environmental Testing (Environmental Conditions) - Frequency: f₁ = 5 Hz to f₂ = 150 Hz|f₁ = 5 Hz to f₂ = 150 Hz
• Environmental Testing (Environmental Conditions) - Function test with noise-like vibration: Test passed according to Section 8 of the standard
• Environmental Testing (Environmental Conditions) - Monitoring for contact faults/interruptions: Passed
• Environmental Testing (Environmental Conditions) - Number of shocks per axis: 3 pos. und 3 neg.
• Environmental Testing (Environmental Conditions) - Shock duration: 30 ms
• Environmental Testing (Environmental Conditions) - Shock form: Half sine
• Environmental Testing (Environmental Conditions) - Shock test: Test passed according to Section 10 of the standard
• Environmental Testing (Environmental Conditions) - Simulated service life test through increased levels of noise-like vibration: Test passed according to Section 9 of the standard
• Environmental Testing (Environmental Conditions) - Spectrum/Installation location: Service life test, Category 1, Class A/B
• Environmental Testing (Environmental Conditions) - Test directions: X, Y and Z axes|X, Y and Z axes|X, Y and Z axes
• Environmental Testing (Environmental Conditions) - Test duration per axis: 10 min.|5 h
• Environmental Testing (Environmental Conditions) - Test procedure
  Railway applications –
  Rolling stock equipment –
  Shock and vibration tests: DIN EN 61373 (VDE 0115-0106):2011-04
• Environmental Testing (Environmental Conditions) - Test specification
  Railway applications –
  Rolling stock –
  Electronic equipment: DIN EN 50155 (VDE 0115-200):2022-06
• Environmental Testing (Environmental Conditions) - Vibration and shock stress for rolling stock equipment: Passed
• Environmental Testing (Environmental Conditions) - Voltage drop measurement before and after each axis: Passed
• Processing temperature: -35 … +85 °C

Material data

• Color: green-yellow
• Fire load: 1.986MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Material group: I
• Note (material data):
  Information on material specifications can be found here

• Weight: 186.5g

Mechanical data

• Marking level: Side marking
• Mounting (note): only suitable for DIN 35 x 15 rail
• Mounting type: DIN-rail 35 x 15|DIN-rail 35 x 15

Physical data

• Depth from upper-edge of DIN-rail: 87 mm / 3.425 inches
• Height: 94 mm / 3.701 inches
• Width: 20 mm / 0.787 inches
