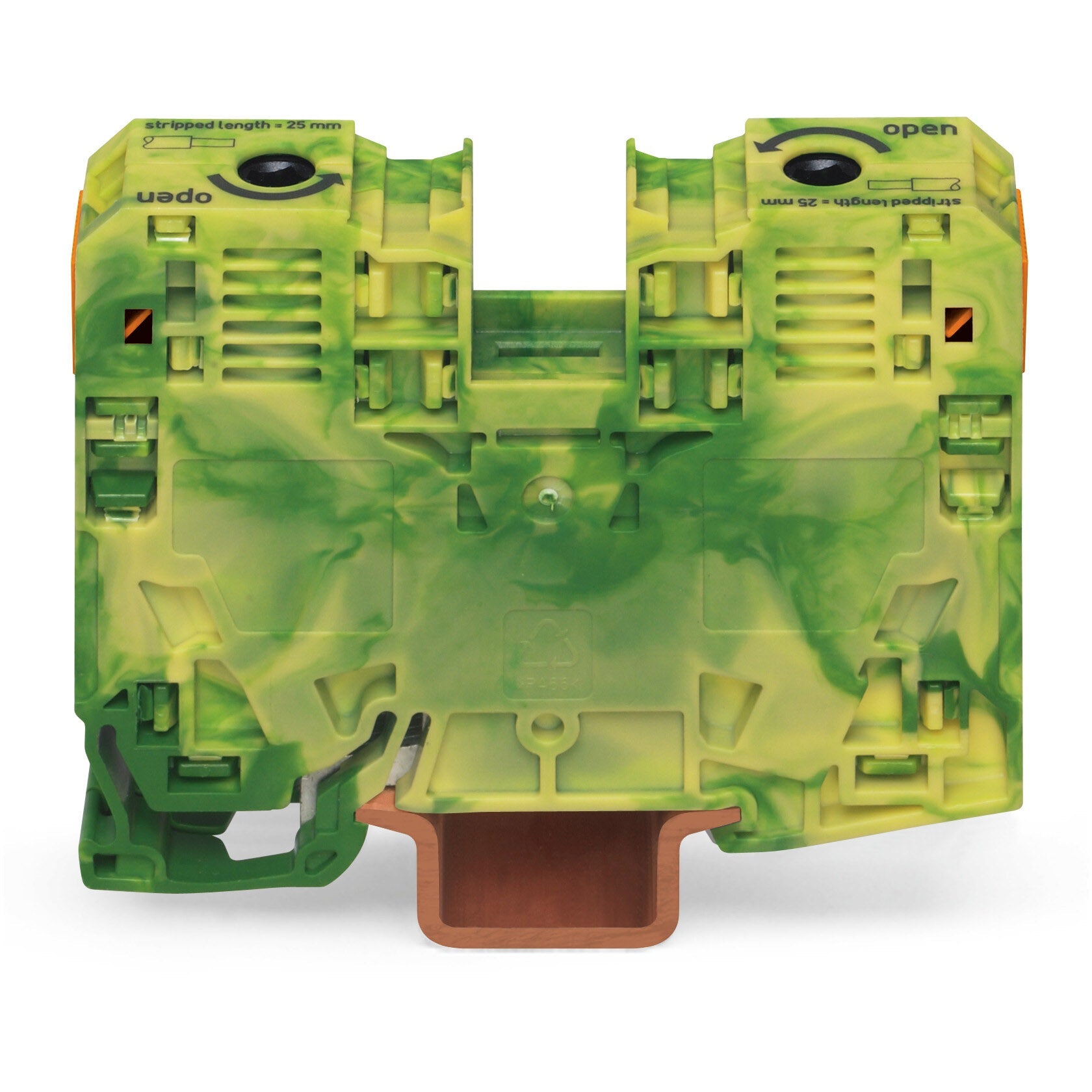

Wago - 285-137

Ground/earthing terminal block with 1-deck/level + side/lateral marking slots - WAGO (285 series) - Green-Yellow - 1 grounding / protective-earth (1PE) / 2-wires (1 clamp + 1 clamp) (1+1) - 35mm2 nominal cross-section - for 6mm2...35mm2 / for #8AWG...#2AWG - with POWER CAGE-CLAMP screw connections - DIN-35 rail (35 x 15) mounting (16mm width) - equivalent to 285137

Specifications

• Primary brand: WAGO
• Functions: Ground/earthing terminal block
• Design: 1-deck/level|side/lateral marking slots|side/lateral wire entry|2 jumper slots
• Poles: 1 grounding / protective-earth (1PE)
• Temperature: Processing temperature -35°C...+85°C|Continuous operating temperature -60°C...+105°C
• Color: Green-Yellow
• Connection capacity: 2-wires (1 clamp + 1 clamp) (1+1)
• Connection type: POWER CAGE-CLAMP screw connections
• Cross-section: for 6mm2...35mm2 fine stranded or solid conductors|for 6mm2...35mm2 fine stranded conductors with insulated ferrule|for #8AWG...#2AWG fine stranded or solid conductors|for #8AWG...#2AWG fine stranded conductors with insulated ferrule|35mm2 nominal cross-section
• Mounting mode: DIN-35 rail (35 x 15)
• Dimensions: H86mm x W16mm x D63mm
• Net Width (mm): 16mm
• Material: Polyamide (PA) 66
• GTIN code: 4045454507404
• ETIM code: EC000901
• eClass code: 27-14-11-41
• Customs Tariff Number: 85369010000
• Order code / Manufacturer SKU: 285-137
• Manufacturer product status: Commercialized
• Equivalent to: 285137
• EAN code: 4045454507404
• Compliant with standard(s): General approvals|- CCA - DEKRA Certification B.V. - EN 60947 - certificate NTR NL-7707|- CSA - DEKRA Certification B.V. - C22.2 No. 158 - certificate 154112|- KEMA/KEUR - DEKRA Certification B.V. - EN 60947 - certificate 71-105562|- UL - Underwriters Laboratories Inc. - UL 1059 - certificate E45172|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- Railway - WAGO GmbH & Co. KG - certificate Z00004420.000|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for marine applications|- ABS - American Bureau of Shipping - EN 60947 - certificate 20-HG1941090-PDA|- DNV GL - Det Norske Veritas Germanischer Lloyd - certificate TAE00001V2|- LR - Lloyds Register - EN 60947 - certificate 91/20112 (E9)|Approvals for hazardous areas|- AEx - Underwriters Laboratories Inc. - certificate E185892 (AEx eb IIC resp. Ex eb IIC)|RoHS compliant|material group I|V-0 flammability rating
• Location of origin: Poland
• Level 1 category: Electrical components
• Level 2 category: Terminal blocks
• Product title: Ground/earthing terminal block - 1-deck/level - WAGO

Commercial data

• Country of origin: PL
• Customs tariff number: 85369010000
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-14-11-41
• eCl@ss 9.0: 27-14-11-41
• ETIM 8.0: EC000901
• ETIM 9.0: EC000901
• GTIN: 4045454507404
• Packaging type: box
• Product Group: 1 (Rail Mounted Terminal Blocks)
• PU (SPU): 15 pcs

Connection data

• Clamping units: 2
• Connection 1 - Actuation type: Operating tool
• Connection 1 - Connectable conductor materials: Copper
• Connection 1 - Connection technology: POWER CAGE CLAMP
• Connection 1 - Fine-stranded conductor: 6 … 35 mm² / 8 … 2 AWG
• Connection 1 - Fine-stranded conductor; with insulated ferrule: 6 … 35 mm² / 8 … 2 AWG
• Connection 1 - Fine-stranded conductor; with uninsulated ferrule: 6 … 35 mm² / 8 … 2 AWG
• Connection 1 - Nominal cross-section: 35 mm²
• Connection 1 - Solid conductor: 6 … 35 mm² / 8 … 2 AWG
• Connection 1 - Stranded conductor: 6 … 35 mm² / 8 … 2 AWG
• Connection 1 - Strip length: 25 mm / 0.98 inches
• Connection 1 - Wiring direction: Side-entry wiring
• Number of jumper slots: 2
• Number of levels: 1
• Total number of potentials: 1

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Continuous operating temperature: -60 … +105 °C
• Environmental Testing (Environmental Conditions) - Acceleration: 0.101g (highest test level used for all axes)|0.572g (highest test level used for all axes)|5g (highest test level used for all axes)
• Environmental Testing (Environmental Conditions) - Extended test scope: Monitoring for contact faults/interruptions: Passed|Passed
• Environmental Testing (Environmental Conditions) - Extended test scope: Voltage drop measurement before and after each axis: Passed|Passed
• Environmental Testing (Environmental Conditions) - Frequency: f₁ = 5 Hz to f₂ = 150 Hz|f₁ = 5 Hz to f₂ = 150 Hz
• Environmental Testing (Environmental Conditions) - Function test with noise-like vibration: Test passed according to Section 8 of the standard
• Environmental Testing (Environmental Conditions) - Monitoring for contact faults/interruptions: Passed
• Environmental Testing (Environmental Conditions) - Number of shocks per axis: 3 pos. und 3 neg.
• Environmental Testing (Environmental Conditions) - Shock duration: 30 ms
• Environmental Testing (Environmental Conditions) - Shock form: Half sine
• Environmental Testing (Environmental Conditions) - Shock test: Test passed according to Section 10 of the standard
• Environmental Testing (Environmental Conditions) - Simulated service life test through increased levels of noise-like vibration: Test passed according to Section 9 of the standard
• Environmental Testing (Environmental Conditions) - Spectrum/Installation location: Service life test, Category 1, Class A/B
• Environmental Testing (Environmental Conditions) - Test directions: X, Y and Z axes|X, Y and Z axes|X, Y and Z axes
• Environmental Testing (Environmental Conditions) - Test duration per axis: 10 min.|5 h
• Environmental Testing (Environmental Conditions) - Test procedure
  Railway applications –
  Rolling stock equipment –
  Shock and vibration tests: DIN EN 61373 (VDE 0115-0106):2011-04
• Environmental Testing (Environmental Conditions) - Test specification
  Railway applications –
  Rolling stock –
  Electronic equipment: DIN EN 50155 (VDE 0115-200):2022-06
• Environmental Testing (Environmental Conditions) - Vibration and shock stress for rolling stock equipment: Passed
• Environmental Testing (Environmental Conditions) - Voltage drop measurement before and after each axis: Passed
• Processing temperature: -35 … +85 °C

Material data

• Color: green-yellow
• Fire load: 0.154MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Material group: I
• Note (material data):
  Information on material specifications can be found here

• Weight: 108.3g

Mechanical data

• Marking level: Side marking
• Mounting (note): only suitable for DIN 35 x 15 rail
• Mounting type: DIN-rail 35 x 15|DIN-rail 35 x 15; 2.3 mm thick; copper

Physical data

• Depth from upper-edge of DIN-rail: 63 mm / 2.48 inches
• Height: 86 mm / 3.386 inches
• Width: 16 mm / 0.63 inches
