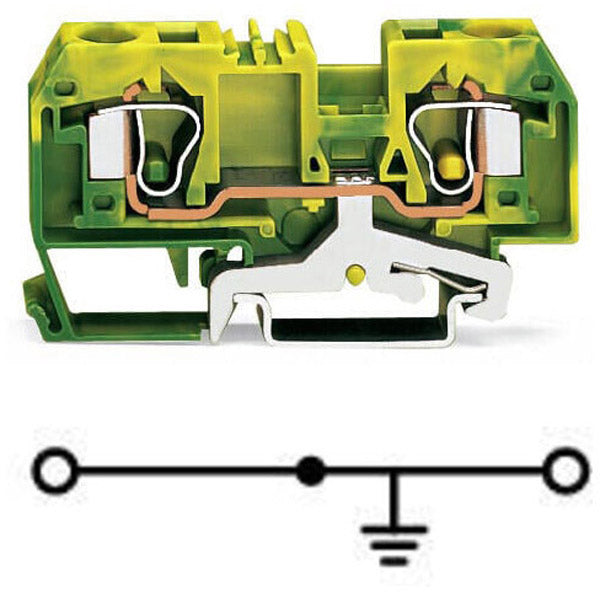

Wago - 284-907

Ground/earthing terminal block with 1-deck/level + center marking slot - WAGO (284 series) - Green-Yellow - 1 grounding / protective-earth (1PE) / 2-wires (1 clamp + 1 clamp) (1+1) - for 0.2mm2...10mm2 / for #24AWG...#8AWG - with CAGE CLAMP spring connections - DIN-35 rail (35 x 15 / 35 x 7.5) mounting (10mm width) - equivalent to 284907

Specifications

• Primary brand: WAGO
• Functions: Ground/earthing terminal block
• Design: 1-deck/level|center marking slot
• Poles: 1 grounding / protective-earth (1PE)
• Temperature: Processing temperature -35°C...+85°C|Continuous operating temperature -60°C...+105°C
• Color: Green-Yellow
• Connection capacity: 2-wires (1 clamp + 1 clamp) (1+1)
• Connection type: CAGE CLAMP spring connections
• Cross-section: for 0.2mm2...10mm2 fine stranded or solid conductors|for #24AWG...#8AWG fine stranded or solid conductors
• Mounting mode: DIN-35 rail (35 x 15 / 35 x 7.5)
• Dimensions: H78mm x W10mm x D35mm
• Net Width (mm): 10mm
• Material: Polyamide (PA) 66
• Customs Tariff Number: 85369010000
• GTIN code: 4045454084646
• eClass code: 27-14-11-41
• ETIM code: EC000901
• Order code / Manufacturer SKU: 284-907
• Manufacturer product status: Commercialized
• Equivalent to: 284907
• EAN code: 4045454084646
• Compliant with standard(s): General approvals|- CCA - DEKRA Certification B.V. - EN 60947 - certificate NTR NL-7379|- CQC - CHINA QUALITY CERT. CENTRE - GB/T 13140.3 - certificate CQC04003010081|- CSA - CSA Group - C22.2 - certificate 1536073|- KEMA/KEUR - DEKRA Certification B.V. - EN 60947 - certificate 2178517.01|- UL - UL International Germany GmbH - UL 1059 - certificate E45172|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for marine applications|- ABS - American Bureau of Shipping - EN 60947 - certificate 20-HG1941090-PDA|- BV - Bureau Veritas S.A. - EN 60947 - certificate 07436/F0 BV|- DNV GL - Det Norske Veritas Germanischer Lloyd - certificate TAE00001V2|- LR - Lloyds Register - EN 60947 - certificate 91/20112 (E9)|RoHS compliant|material group I|V-0 flammability rating
• Location of origin: Germany
• Level 1 category: Electrical components
• Level 2 category: Terminal blocks
• Product title: Ground/earthing terminal block - 1-deck/level - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85369010000
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-14-11-41
• eCl@ss 9.0: 27-14-11-41
• ETIM 8.0: EC000901
• ETIM 9.0: EC000901
• GTIN: 4045454084646
• Packaging type: box
• PU (SPU): 25 pcs

Connection data

• Clamping units: 2
• Connection 1 - Actuation type: Operating tool
• Connection 1 - Connectable conductor materials: Copper
• Connection 1 - Connection technology: CAGE CLAMP^®
• Connection 1 - Fine-stranded conductor: 0.2 … 10 mm² / 24 … 8 AWG
• Connection 1 - Solid conductor: 0.2 … 10 mm² / 24 … 8 AWG
• Connection 1 - Strip length: 12 … 13 mm / 0.47 … 0.51 inches
• Connection 1 - Wiring direction: Front-entry wiring
• Number of levels: 1
• Total number of potentials: 1

Electrical data

• Ratings per IEC/EN - Ratings per: IEC/EN 60947-7-2

Environmental Product Compliance

• CAS-No.: 7439-92-1
• REACH Candidate List Substance: Lead
• RoHS Compliance Status: Compliant,No Exemption
• SCIP notification number (Austria): ab297b60-d5b6-46bb-8664-2e16be00d748
• SCIP notification number (Belgium): b5c66857-fbba-4696-8d4a-954cbfc37177
• SCIP notification number (Bulgaria): 04946977-09ae-4942-8a06-c46b5ca5685b
• SCIP notification number (Czech Republic): d1ac4b7b-5011-49ab-805b-18121cbe987d
• SCIP notification number (Denmark): 1d948ba0-0113-4418-b398-5ea6e6270995
• SCIP notification number (Finland): a6c39dcc-fac9-4c29-be06-4d18cc08197f
• SCIP notification number (France): 1e7b634e-70a7-4356-9279-9f0847855d49
• SCIP notification number (Germany): bd481bb5-a8fc-47a1-a534-40ac4695e78d
• SCIP notification number (Hungary): 0ec8abd3-6993-4900-a77c-23723cc1c9f2
• SCIP notification number (Italy): 24a2d7cc-2368-44cd-a77b-3f01fda6fe18
• SCIP notification number (Netherlands): fb3ac60b-efa9-4c8f-bca8-2ade2ed8c205
• SCIP notification number (Poland): 91ce09c3-9d17-4cbb-9a39-bdea0a9eb982
• SCIP notification number (Romania): fed116da-aab3-4bee-a342-6f3a86574dd2
• SCIP notification number (Sweden): f86b89e7-73b4-46b1-9ace-b7786acb3494

Environmental requirements

• Continuous operating temperature: -60 … +105 °C
• Processing temperature: -35 … +85 °C

Material data

• Color: green-yellow
• Fire load: 0.321MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Material group: I
• Note (material data):
  Information on material specifications can be found here

• Weight: 31.6g

Mechanical data

• Design: horizontal type
• Marking level: Center marking
• Mounting type: DIN-35 rail

Physical data

• Depth from upper-edge of DIN-rail: 35 mm / 1.378 inches
• Height: 78 mm / 3.071 inches
• Width: 10 mm / 0.394 inches
