Wago - 284-687
$17.53
Sale price
$17.53
Regular price

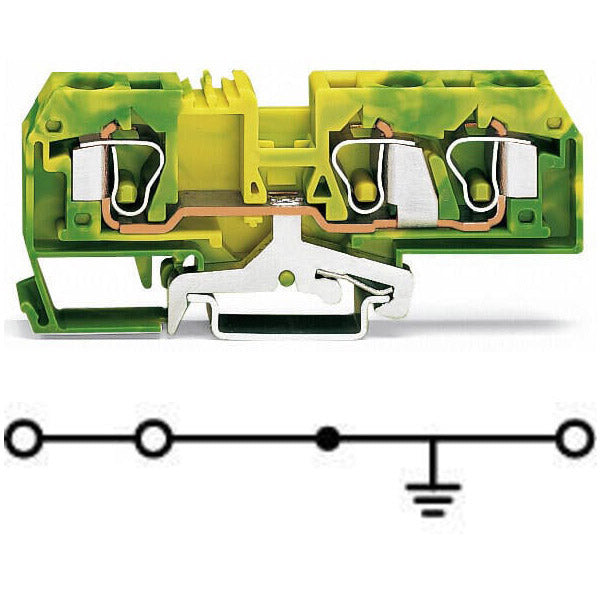

Ground/earthing terminal block with 1-deck/level + center marking slot - WAGO (284 series) - Green-Yellow - 1 grounding / protective-earth (1PE) / 3-wires (1 clamp + 2 clamps) (1+2) - for 0.2mm2...10mm2 / for #24AWG...#8AWG - with CAGE CLAMP spring connections - DIN-35 rail (35 x 15 / 35 x 7.5) mounting (10mm width) - equivalent to 284687
Specifications
- Primary brand: WAGO
- Functions: Ground/earthing terminal block
- Design: 1-deck/level|center marking slot
- Poles: 1 grounding / protective-earth (1PE)
- Temperature: Processing temperature -35°C...+85°C|Continuous operating temperature -60°C...+105°C
- Color: Green-Yellow
- Connection capacity: 3-wires (1 clamp + 2 clamps) (1+2)
- Connection type: CAGE CLAMP spring connections
- Cross-section: for 0.2mm2...10mm2 fine stranded or solid conductors|for #24AWG...#8AWG fine stranded or solid conductors
- Mounting mode: DIN-35 rail (35 x 15 / 35 x 7.5)
- Dimensions: H97.5mm x W10mm x D35mm
- Net Width (mm): 10mm
- Material: Polyamide (PA) 66
- GTIN code: 4045454084639
- eClass code: 27-14-11-41
- Customs Tariff Number: 85369010000
- ETIM code: EC000901
- Order code / Manufacturer SKU: 284-687
- Manufacturer product status: Commercialized
- Equivalent to: 284687
- EAN code: 4045454084639
- Compliant with standard(s): General approvals|- CCA - DEKRA Certification B.V. - EN 60947 - certificate NTR NL-7379|- CQC - CHINA QUALITY CERT. CENTRE - GB/T 13140.3 - certificate CQC04003010081|- CSA - CSA Group - C22.2 - certificate 1536073|- KEMA/KEUR - DEKRA Certification B.V. - EN 60947 - certificate 2178517.01|- UL - UL International Germany GmbH - UL 1059 - certificate E45172|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for marine applications|- ABS - American Bureau of Shipping - EN 60947 - certificate 20-HG1941090-PDA|- BV - Bureau Veritas S.A. - EN 60947 - certificate 07436/F0 BV|- DNV GL - Det Norske Veritas Germanischer Lloyd - certificate TAE00001V2|- LR - Lloyds Register - EN 60947 - certificate 91/20112 (E9)|RoHS compliant|material group I|V-0 flammability rating
- Location of origin: Germany
- Level 1 category: Electrical components
- Level 2 category: Terminal blocks
- Product title: Ground/earthing terminal block - 1-deck/level - WAGO
Commercial data
- Country of origin: DE
- Customs tariff number: 85369010000
- ECCN: NO US CLASSIFICATION
- eCl@ss 10.0: 27-14-11-41
- eCl@ss 9.0: 27-14-11-41
- ETIM 8.0: EC000901
- ETIM 9.0: EC000901
- GTIN: 4045454084639
- Packaging type: box
- PU (SPU): 25 pcs
Connection data
- Clamping units: 3
- Connection 1 - Actuation type: Operating tool
- Connection 1 - Connectable conductor materials: Copper
- Connection 1 - Connection technology: CAGE CLAMP®
- Connection 1 - Fine-stranded conductor: 0.2 … 10 mm² / 24 … 8 AWG
- Connection 1 - Solid conductor: 0.2 … 10 mm² / 24 … 8 AWG
- Connection 1 - Strip length: 12 … 13 mm / 0.47 … 0.51 inches
- Connection 1 - Wiring direction: Front-entry wiring
- Number of levels: 1
- Total number of potentials: 1
Electrical data
- Ratings per IEC/EN - Ratings per: IEC/EN 60947-7-2
Environmental Product Compliance
- CAS-No.: 7439-92-1
- REACH Candidate List Substance: Lead
- RoHS Compliance Status: Compliant,No Exemption
- SCIP notification number (Austria): ef891d27-a5b7-4e41-b5da-f33218adc984
- SCIP notification number (Belgium): 0562ff0b-e5a7-4ea0-8f0c-a6a5fdfdd889
- SCIP notification number (Bulgaria): 6886b8d1-6ab8-44d1-8835-d13adef9b0ff
- SCIP notification number (Czech Republic): 2705ac39-4598-4369-854e-f88ee2020cd2
- SCIP notification number (Denmark): 373cf6ad-e53f-4074-ab82-06ca973c6d87
- SCIP notification number (Finland): 30afceee-5d13-43a7-8390-12686c75486a
- SCIP notification number (France): 0a5bf724-1fe5-4390-a3b3-5494ed4bff34
- SCIP notification number (Germany): 83cade3f-a862-4a19-9fd2-320a12929841
- SCIP notification number (Hungary): 491995cc-1776-49c4-985c-d14e71acf306
- SCIP notification number (Italy): 401e6bf7-4c3a-4897-a079-3d03ae6b30ba
- SCIP notification number (Netherlands): ae437c52-85e0-4105-a342-f0d42d5dcc39
- SCIP notification number (Poland): 850a1d86-d189-4c51-a575-3847d5c2b51c
- SCIP notification number (Romania): 54c8ed9e-22b1-4ed3-a08f-08cd6dd5a27c
- SCIP notification number (Sweden): 8d32e2d8-59ce-4bf3-a22f-a561db242cea
Environmental requirements
- Continuous operating temperature: -60 … +105 °C
- Processing temperature: -35 … +85 °C
Material data
- Color: green-yellow
- Fire load: 0.409MJ
- Flammability class per UL94: V0
- Insulation material (main housing): Polyamide (PA66)
- Material group: I
-
Note (material data):
Information on material specifications can be found here
- Weight: 40g
Mechanical data
- Design: horizontal type
- Marking level: Center marking
- Mounting type: DIN-35 rail
Physical data
- Depth from upper-edge of DIN-rail: 35 mm / 1.378 inches
- Height: 97.5 mm / 3.839 inches
- Width: 10 mm / 0.394 inches
