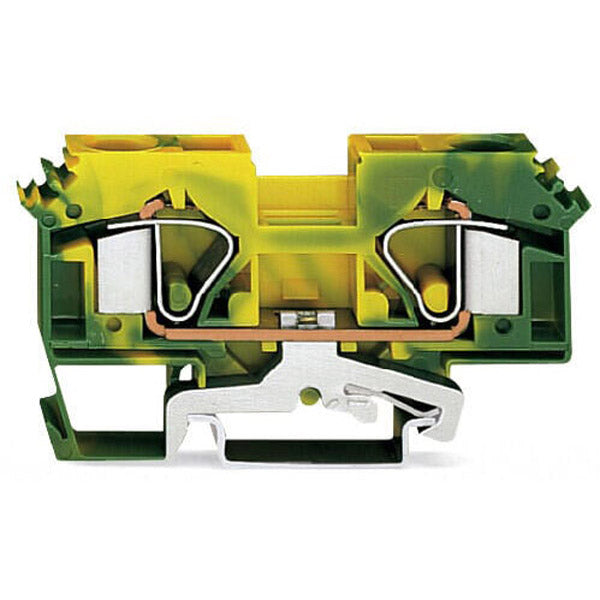

Wago - 283-607
$0.00
Sale price
$0.00
Regular price
Ground/earthing terminal block with 1-deck/level + side/lateral marking slots - WAGO (283 series) - Green-Yellow - 1 grounding / protective-earth (1PE) / 2-wires (1 clamp + 1 clamp) (1+1) - for 0.2mm2...16mm2 / for #24AWG...#6AWG - with CAGE CLAMP spring connections - DIN-35 rail (35 x 15 / 35 x 7.5) mounting (12mm width) - equivalent to 283607
Specifications
- Primary brand: WAGO
- Functions: Ground/earthing terminal block
- Design: 1-deck/level|side/lateral marking slots
- Poles: 1 grounding / protective-earth (1PE)
- Temperature: Processing temperature -35°C...+85°C|Continuous operating temperature -60°C...+105°C
- Color: Green-Yellow
- Connection capacity: 2-wires (1 clamp + 1 clamp) (1+1)
- Connection type: CAGE CLAMP spring connections
- Cross-section: for 0.2mm2...16mm2 fine stranded or solid conductors|for #24AWG...#6AWG fine stranded or solid conductors
- Mounting mode: DIN-35 rail (35 x 15 / 35 x 7.5)
- Dimensions: H80mm x W12mm x D37.5mm
- Net Width (mm): 12mm
- Material: Polyamide (PA) 66
- ETIM code: EC000901
- Customs Tariff Number: 85369010000
- eClass code: 27-14-11-41
- GTIN code: 4045454084547
- Order code / Manufacturer SKU: 283-607
- Manufacturer product status: Commercialized
- Equivalent to: 283607
- EAN code: 4045454084547
- Compliant with standard(s): General approvals|- CCA - DEKRA Certification B.V. - EN 60947 - certificate NTR NL 7895|- CQC - CHINA QUALITY CERT. CENTRE - GB/T 13140.3 - certificate CQC04003010083|- CSA - DEKRA Certification B.V. - C22.2 No. 158 - certificate 1536072|- KEMA/KEUR - DEKRA Certification B.V. - EN 60947 - certificate 71-120777|- UL - UL International Germany GmbH - UL 1059 - certificate E45172|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for marine applications|- ABS - American Bureau of Shipping - certificate 20-HG1941090-PDA|- BV - Bureau Veritas S.A. - EN 60947 - certificate 07436/F0 BV|- DNV GL - Det Norske Veritas Germanischer Lloyd - certificate TAE00001V2|RoHS compliant|material group I|V-0 flammability rating
- Location of origin: Germany
- Level 1 category: Electrical components
- Level 2 category: Terminal blocks
- Product title: Ground/earthing terminal block - 1-deck/level - WAGO
Commercial data
- Country of origin: DE
- Customs tariff number: 85369010000
- ECCN: NO US CLASSIFICATION
- eCl@ss 10.0: 27-14-11-41
- eCl@ss 9.0: 27-14-11-41
- ETIM 8.0: EC000901
- ETIM 9.0: EC000901
- GTIN: 4045454084547
- Packaging type: box
- Product Group: 1 (Rail Mounted Terminal Blocks)
- PU (SPU): 25 pcs
Connection data
- Clamping units: 2
- Connection 1 - Actuation type: Operating tool
- Connection 1 - Connectable conductor materials: Copper
- Connection 1 - Connection technology: CAGE CLAMP®
- Connection 1 - Fine-stranded conductor: 0.2 … 16 mm² / 24 … 6 AWG
- Connection 1 - Solid conductor: 0.2 … 16 mm² / 24 … 6 AWG
- Connection 1 - Strip length: 16 … 17 mm / 0.63 … 0.67 inches
- Connection 1 - Wiring direction: Front-entry wiring
- Number of levels: 1
- Total number of potentials: 1
Electrical data
- Ratings per IEC/EN - Ratings per: IEC/EN 60947-7-2
Environmental Product Compliance
- CAS-No.: 7439-92-1
- REACH Candidate List Substance: Lead
- RoHS Compliance Status: Compliant,No Exemption
- SCIP notification number (Austria): 41f4a7ee-6c29-41e2-be2f-99e19e0aeca9
- SCIP notification number (Belgium): 364078f0-6f5e-427e-a0f6-78fd1b8dbf09
- SCIP notification number (Bulgaria): b4fd2833-b42f-4c22-a64e-5f8df4654b6c
- SCIP notification number (Czech Republic): 07dace2c-202c-4c8e-b7bc-535338e4745e
- SCIP notification number (Denmark): c8cad518-67a1-46d6-891c-31e6113a1cdc
- SCIP notification number (Finland): d0eb975a-fd50-4788-abb3-cb59f6017b55
- SCIP notification number (France): d5bafed5-15d3-4313-8254-e362e1f44d13
- SCIP notification number (Germany): bfb0846a-4f21-4ec6-b323-40d32863335f
- SCIP notification number (Hungary): 9e246cb3-59a2-4e94-ba25-e36ab0c0e390
- SCIP notification number (Italy): ef62378c-d62d-4cb8-b9ce-256a109ce518
- SCIP notification number (Netherlands): 7a6cf20b-26c0-4621-839a-0e0b2a654cc8
- SCIP notification number (Poland): 42c90627-91db-4108-9ac4-a73487210436
- SCIP notification number (Romania): c6b3d24c-a522-42e4-9c6b-3f7dc1bd9541
- SCIP notification number (Sweden): 11ea5a99-03f0-4a2d-90d6-2e8b212ee4ea
Environmental requirements
- Continuous operating temperature: -60 … +105 °C
- Processing temperature: -35 … +85 °C
Material data
- Color: green-yellow
- Fire load: 0.449MJ
- Flammability class per UL94: V0
- Insulation material (main housing): Polyamide (PA66)
- Material group: I
-
Note (material data):
Information on material specifications can be found here
- Weight: 42g
Mechanical data
- Design: horizontal type
- Marking level: Side marking
- Mounting type: DIN-35 rail
Physical data
- Depth from upper-edge of DIN-rail: 37.5 mm / 1.476 inches
- Height: 80 mm / 3.15 inches
- Width: 12 mm / 0.472 inches
