Wago - 282-907
$10.65
Sale price
$10.65
Regular price

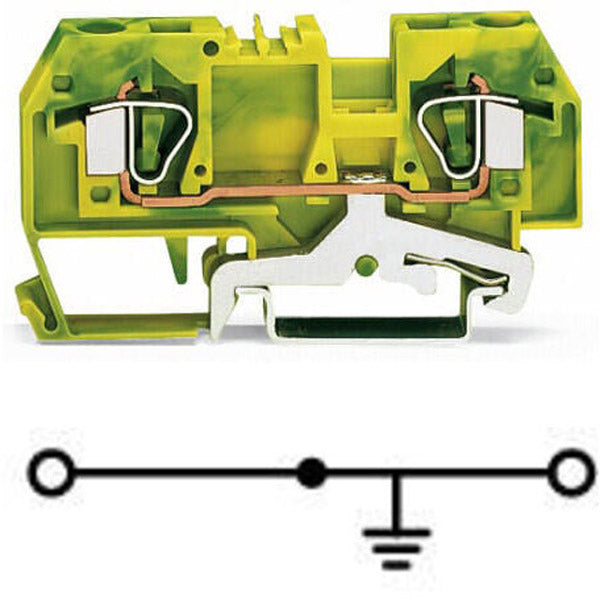

Ground/earthing terminal block with 1-deck/level + center marking slot - WAGO (282 series) - Green-Yellow - 1 grounding / protective-earth (1PE) / 2-wires (1 clamp + 1 clamp) (1+1) - for 0.2mm2...6mm2 / for #24AWG...#10AWG - with CAGE CLAMP spring connections - DIN-35 rail (35 x 15 / 35 x 7.5) mounting (8mm width) - equivalent to 282907
Specifications
- Primary brand: WAGO
- Functions: Ground/earthing terminal block
- Design: 1-deck/level|center marking slot
- Poles: 1 grounding / protective-earth (1PE)
- Temperature: Processing temperature -35°C...+85°C|Continuous operating temperature -60°C...+105°C
- Color: Green-Yellow
- Connection capacity: 2-wires (1 clamp + 1 clamp) (1+1)
- Connection type: CAGE CLAMP spring connections
- Cross-section: for 0.2mm2...6mm2 fine stranded or solid conductors|for #24AWG...#10AWG fine stranded or solid conductors
- Mounting mode: DIN-35 rail (35 x 15 / 35 x 7.5)
- Dimensions: H74.5mm x W8mm x D32.5mm
- Net Width (mm): 8mm
- Material: Polyamide (PA) 66
- GTIN code: 4044918471794
- eClass code: 27-14-11-41
- ETIM code: EC000901
- Customs Tariff Number: 85369010000
- Order code / Manufacturer SKU: 282-907
- Manufacturer product status: Commercialized
- Equivalent to: 282907
- EAN code: 4044918471794
- Compliant with standard(s): General approvals|- CCA - DEKRA Certification B.V. - EN 60947 - certificate NTR NL 7894|- CQC - CHINA QUALITY CERT. CENTRE - GB/T 13140.3 - certificate CQC04003010082|- CSA - DEKRA Certification B.V. - C22.2 No. 158 - certificate 1505033|- KEMA/KEUR - DEKRA Certification B.V. - EN 60947 - certificate 71-120778|- UL - UL International Germany GmbH - UL 1059 - certificate E45172|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for marine applications|- ABS - American Bureau of Shipping - EN 60947 - certificate 20-HG1941090-PDA|- BV - Bureau Veritas S.A. - EN 60947 - certificate 07436/F0 BV|- DNV GL - Det Norske Veritas Germanischer Lloyd - certificate TAE00001V2|RoHS compliant|material group I|V-0 flammability rating
- Location of origin: Germany
- Level 1 category: Electrical components
- Level 2 category: Terminal blocks
- Product title: Ground/earthing terminal block - 1-deck/level - WAGO
Commercial data
- Country of origin: DE
- Customs tariff number: 85369010000
- ECCN: NO US CLASSIFICATION
- eCl@ss 10.0: 27-14-11-41
- eCl@ss 9.0: 27-14-11-41
- ETIM 8.0: EC000901
- ETIM 9.0: EC000901
- GTIN: 4044918471794
- Packaging type: box
- Product Group: 1 (Rail Mounted Terminal Blocks)
- PU (SPU): 50 pcs
Connection data
- Clamping units: 2
- Connection 1 - Actuation type: Operating tool
- Connection 1 - Connectable conductor materials: Copper
- Connection 1 - Connection technology: CAGE CLAMP®
- Connection 1 - Fine-stranded conductor: 0.2 … 6 mm² / 24 … 10 AWG
- Connection 1 - Solid conductor: 0.2 … 6 mm² / 24 … 10 AWG
- Connection 1 - Strip length: 12 … 13 mm / 0.47 … 0.51 inches
- Connection 1 - Wiring direction: Front-entry wiring
- Number of levels: 1
- Total number of potentials: 1
Electrical data
- Ratings per IEC/EN - Ratings per: IEC/EN 60947-7-2
Environmental Product Compliance
- CAS-No.: 7439-92-1
- REACH Candidate List Substance: Lead
- RoHS Compliance Status: Compliant,No Exemption
- SCIP notification number (Austria): 843fb018-2997-488d-b4ca-a9f7941fadfb
- SCIP notification number (Belgium): d8667091-1524-4742-829a-36e7e24f7a8c
- SCIP notification number (Bulgaria): c56e3b1b-7cb5-402f-9262-85784cbce53f
- SCIP notification number (Czech Republic): 0083c7d0-a5ff-4802-9b2c-8ce87715f95f
- SCIP notification number (Denmark): 069cafd0-d6d1-4c22-8e84-d69246fa0609
- SCIP notification number (Finland): 1eacb412-8f08-4574-81bd-148e6d10b8a4
- SCIP notification number (France): 355e8966-c441-433f-8a80-1cc5569eedba
- SCIP notification number (Germany): 0ff791bc-449c-4be9-9d7d-eeb27d5795b7
- SCIP notification number (Hungary): 11be18bd-2e2d-47ce-adb5-faa6c1a7468e
- SCIP notification number (Italy): 44ce2281-4bbb-473d-b1c4-eedc18081f96
- SCIP notification number (Netherlands): 015331a5-81e4-42b9-8c8f-d7ee84a0bd4e
- SCIP notification number (Poland): f8bd9144-71a3-472c-8e21-21892a74386b
- SCIP notification number (Romania): 1064b3fe-a4fe-44e9-980e-d4561cd74640
- SCIP notification number (Sweden): c96e561e-69bc-4acc-80d0-59765c8824eb
Environmental requirements
- Continuous operating temperature: -60 … +105 °C
- Processing temperature: -35 … +85 °C
Material data
- Color: green-yellow
- Fire load: 0.248MJ
- Flammability class per UL94: V0
- Insulation material (main housing): Polyamide (PA66)
- Material group: I
-
Note (material data):
Information on material specifications can be found here
- Weight: 22g
Mechanical data
- Design: horizontal type
- Marking level: Center marking
- Mounting type: DIN-35 rail
Physical data
- Depth from upper-edge of DIN-rail: 32.5 mm / 1.28 inches
- Height: 74.5 mm / 2.933 inches
- Width: 8 mm / 0.315 inches
