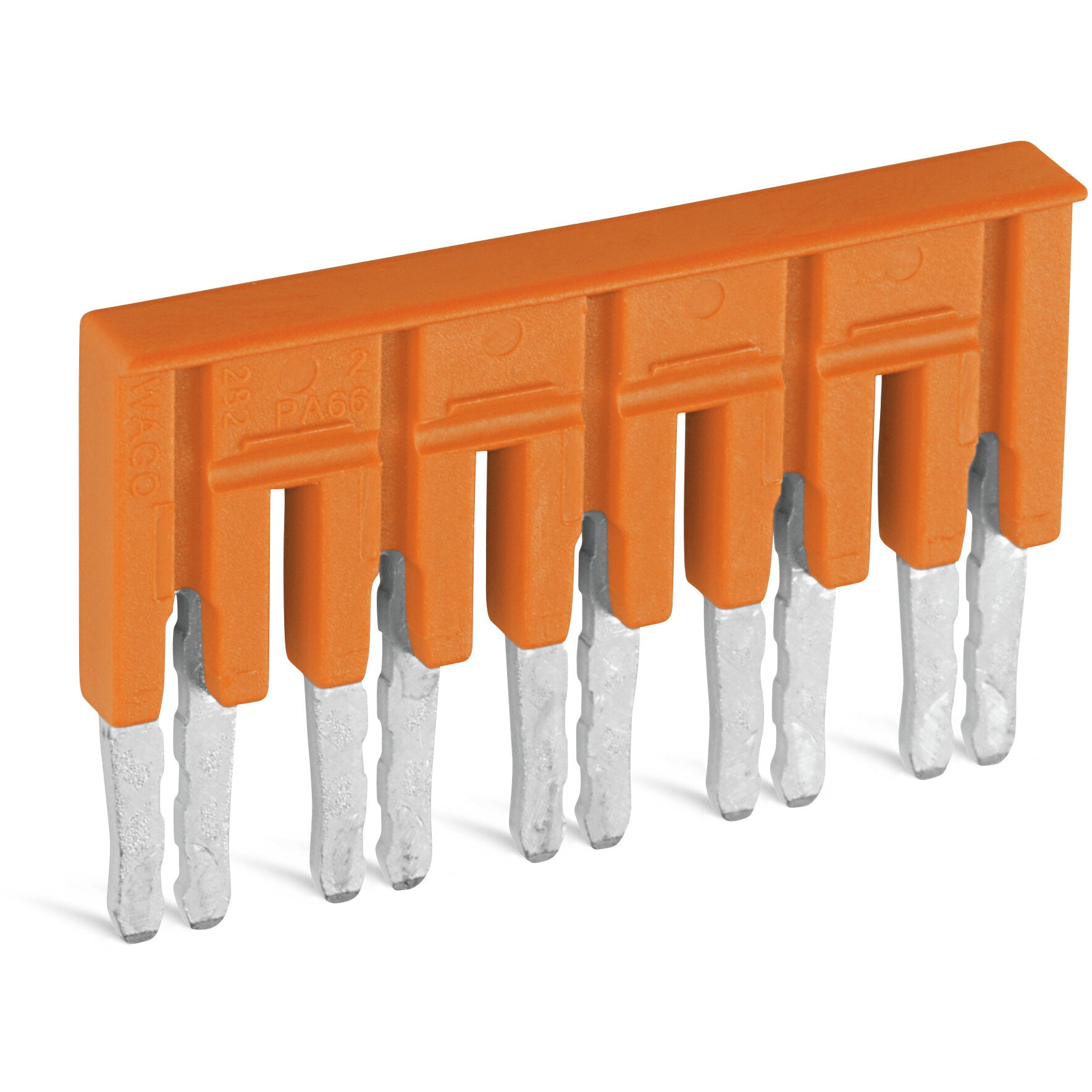

Wago - 282-435

Insulated jumper - 5-way - WAGO (282 series) - 5-poles (5P) - Rated current 30A - Orange color - equivalent to 282435

Specifications

• Primary brand: WAGO
• Functions: Insulated jumper
• Design: 5-way
• Poles: 5-poles (5P)
• Temperature: Processing temperature -35°C...+85°C|Continuous operating temperature -60°C...+105°C
• Rated current: 30A
• Color: Orange
• Material: Polyamide (PA) 66
• ETIM code: EC000489
• eClass code: 27-14-11-40
• Customs Tariff Number: 85366990990
• GTIN code: 4044918607612
• Order code / Manufacturer SKU: 282-435
• Manufacturer product status: Commercialized
• Equivalent to: 282435
• EAN code: 4044918607612
• Compliant with standard(s): RoHS compliant|material group I|V-0 flammability rating
• Location of origin: Germany
• Level 1 category: Electrical components
• Product title: Insulated jumper - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85366990990
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-14-11-40
• eCl@ss 9.0: 27-14-11-40
• ETIM 8.0: EC000489
• ETIM 9.0: EC000489
• GTIN: 4044918607612
• Packaging type: box
• PU (SPU): 50 (10) pcs

Electrical data

• Ratings per IEC/EN - Rated current: 30A

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Continuous operating temperature: -60 … +105 °C
• Processing temperature: -35 … +85 °C

Material data

• Color: orange
• Fire load: 0.035MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Material group: I
• Note (material data):
  Information on material specifications can be found here

• Weight: 6g

Physical data

• Jumper assignment: 1-2-3-4-5
