Wago - 282-128

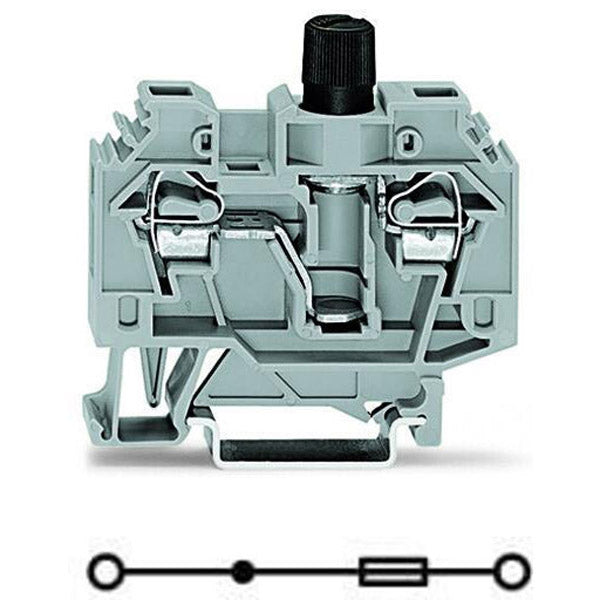

Feed-through/thru terminal block with 1-deck/level + fused-disconnect (1/4" x 1-1/4") + side/lateral marking slots - WAGO (282 series) - Gray - 1 disconnect feed-through pole (1P) / 2-wires (1 clamp + 1 clamp) (1+1) - for 0.2mm2...6mm2 / for #24AWG...#10AWG - Rated current 10A - with CAGE CLAMP spring connections - DIN-35 rail (35 x 15 / 35 x 7.5) mounting (13mm width) - equivalent to 282128

Specifications

• Primary brand: WAGO
• Functions: Feed-through/thru terminal block
• Design: 1-deck/level|fused-disconnect (1/4" x 1-1/4")|side/lateral marking slots|side/lateral wire entry
• Poles: 1 disconnect feed-through pole (1P)
• Temperature: Processing temperature -35°C...+85°C|Continuous operating temperature -60°C...+105°C
• Rated current: (IEC) 10A
• Color: Gray
• Connection capacity: 2-wires (1 clamp + 1 clamp) (1+1)
• Rated operating voltage (Ue): (IEC) 500V
• Rated impulse voltage (Uimp): (IEC) 6kV
• Connection type: CAGE CLAMP spring connections
• Cross-section: for 0.2mm2...6mm2 fine stranded or solid conductors|for #24AWG...#10AWG fine stranded or solid conductors
• Mounting mode: DIN-35 rail (35 x 15 / 35 x 7.5)
• Dimensions: H62mm x W13mm x D56.5mm
• Net Width (mm): 13mm
• Material: Polyamide (PA) 66
• eClass code: 27-14-11-16
• ETIM code: EC000899
• GTIN code: 4044918558563
• Customs Tariff Number: 85369095000
• Order code / Manufacturer SKU: 282-128
• Manufacturer product status: Commercialized
• Equivalent to: 282128
• EAN code: 4044918558563
• Compliant with standard(s): General approvals|- CQC - CHINA QUALITY CERT. CENTRE - GB/T 13140.3 - certificate CQC04003010082|- CSA - DEKRA Certification B.V. - C22.2 No. 158 - certificate 1505033|- KEMA/KEUR - DEKRA Certification B.V. - EN 60947 - certificate 2160584.31|- KEMA/KEUR - DEKRA Certification B.V. - EN 60947 - certificate NTR NL-7135|- UR - UL International Germany GmbH - UL 1059 - certificate E45172|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for marine applications|- ABS - American Bureau of Shipping - EN 60947 - certificate 20-HG1941090-PDA|- DNV GL - Det Norske Veritas Germanischer Lloyd - certificate TAE00001V2|RoHS compliant|material group I|V-0 flammability rating
• Location of origin: China
• Level 1 category: Electrical components
• Level 2 category: Terminal blocks
• Product title: Feed-through/thru terminal block - 1-deck/level - WAGO

Commercial data

• Country of origin: CN
• Customs tariff number: 85369095000
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-14-11-16
• eCl@ss 9.0: 27-14-11-16
• ETIM 8.0: EC000899
• ETIM 9.0: EC000899
• GTIN: 4044918558563
• Packaging type: box
• Product Group: 1 (Rail Mounted Terminal Blocks)
• PU (SPU): 40 pcs

Connection data

• Clamping units: 2
• Connection 1 - Actuation type: Operating tool
• Connection 1 - Connectable conductor materials: Copper
• Connection 1 - Connection technology: CAGE CLAMP^®
• Connection 1 - Fine-stranded conductor: 0.2 … 6 mm² / 24 … 10 AWG
• Connection 1 - Solid conductor: 0.2 … 6 mm² / 24 … 10 AWG
• Connection 1 - Strip length: 12 … 13 mm / 0.47 … 0.51 inches
• Connection 1 - Wiring direction: Side-entry wiring
• Number of levels: 1
• Total number of potentials: 2

Electrical data

• General information - Fuse receptacle: screwed
• General information - Fuse type: Cylindrical fuse; ¼" x 1¼"
• Power Loss - Power loss (max.) P_{l (max.)} (note): When selecting glass cartridge fuses, make sure that the maximum power loss listed below is not exceeded. The power loss is determined according to IEC or EN 60947-7-3/VDE 0611-6 at 23°C. The temperature rise of the terminal block must be checked according to their application and mounting. Higher ambient temperatures represent an additional impact on miniature fuses. Therefore, in such applications, the rated current must be reduced if necessary. More details are available from the manufacturers.
• Power Loss - Power loss P_l max. overload and short-circuit protection (group arrangement): 2.5W
• Power Loss - Power loss P_l max. overload and short-circuit protection (individual arrangement): 2.5W
• Power Loss - Power loss P_l max. short-circuit protection (group arrangement): 4W
• Power Loss - Power loss P_l max. short-circuit protection (individual arrangement): 4W
• Ratings per IEC/EN - Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3
• Ratings per IEC/EN - Nominal voltage (III/3): 500V
• Ratings per IEC/EN - Rated current: 10A
• Ratings per IEC/EN - Rated impulse withstand voltage (III / 3): 6kV

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Continuous operating temperature: -60 … +105 °C
• Processing temperature: -35 … +85 °C

Material data

• Color: gray
• Fire load: 0.429MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Material group: I
• Note (material data):
  Information on material specifications can be found here

• Weight: 27.5g

Mechanical data

• Design: horizontal type
• Marking level: Side marking
• Mounting type: DIN-35 rail

Physical data

• Depth from upper-edge of DIN-rail: 56.5 mm / 2.224 inches
• Height: 62 mm / 2.441 inches
• Width: 13 mm / 0.512 inches
