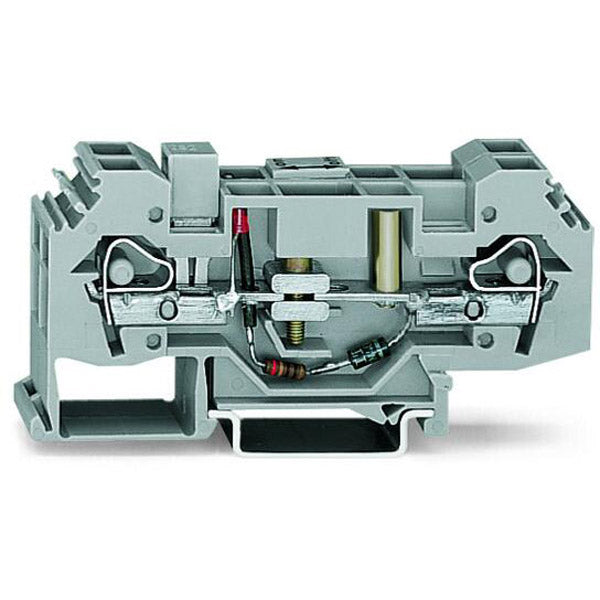

Wago - 282-139

Ground conductor disconnect terminal block with 1-deck/level + slide-link disconnect + LED (230Vdc) + side/lateral marking slots - WAGO (282 series) - Gray - 1 disconnect feed-through pole (1P) / 4-wires (2 clamps + 2 clamps) (2+2) - for 0.2mm2...6mm2 / for #24AWG...#10AWG - with CAGE CLAMP spring connections - DIN-35 rail mounting (16mm width) - equivalent to 282139

Specifications

• Primary brand: WAGO
• Functions: Ground conductor disconnect terminal block
• Design: 1-deck/level|slide-link disconnect|LED (230Vdc)|side/lateral marking slots|side/lateral wire entry
• Poles: 1 disconnect feed-through pole (1P)
• Supply voltage (DC): 230Vdc (LED)
• Temperature: Processing temperature -35°C...+85°C|Continuous operating temperature -60°C...+105°C
• Color: Gray
• Connection capacity: 4-wires (2 clamps + 2 clamps) (2+2)
• Connection type: CAGE CLAMP spring connections
• Cross-section: for 0.2mm2...6mm2 fine stranded or solid conductors|for #24AWG...#10AWG fine stranded or solid conductors
• Mounting mode: DIN-35 rail
• Dimensions: H87.5mm x W16mm x D38.5mm
• Net Width (mm): 16mm
• Material: Polyamide (PA) 66
• GTIN code: 4045454448509
• Customs Tariff Number: 85365080000
• eClass code: 27-14-11-26
• ETIM code: EC000902
• Order code / Manufacturer SKU: 282-139
• Manufacturer product status: Commercialized
• Equivalent to: 282139
• EAN code: 4045454448509
• Compliant with standard(s): General approvals|- CCA - DEKRA Certification B.V. - EN 60947 - certificate NTR NL 7894|- KEMA/KEUR - DEKRA Certification B.V. - EN 60947 - certificate 71-120778|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for marine applications|- ABS - American Bureau of Shipping - EN 60947 - certificate 20-HG1941090-PDA|- BV - Bureau Veritas S.A. - EN 60947 - certificate 07436/F0 BV|- DNV GL - Det Norske Veritas Germanischer Lloyd - certificate TAE00001V2|RoHS compliant with exemption (6(c))|material group I|V-0 flammability rating
• Location of origin: Germany
• Level 1 category: Electrical components
• Level 2 category: Terminal blocks
• Product title: Ground conductor disconnect terminal block - 1-deck/level - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85365080000
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-14-11-26
• eCl@ss 9.0: 27-14-11-26
• ETIM 8.0: EC000902
• ETIM 9.0: EC000902
• GTIN: 4045454448509
• Packaging type: box
• Product Group: 1 (Rail Mounted Terminal Blocks)
• PU (SPU): 12 (1) pcs

Connection data

• Clamping units: 4
• Connection 1 - Actuation type: Operating tool
• Connection 1 - Connectable conductor materials: Copper
• Connection 1 - Connection technology: CAGE CLAMP^®
• Connection 1 - Fine-stranded conductor: 0.2 … 6 mm² / 24 … 10 AWG
• Connection 1 - Solid conductor: 0.2 … 6 mm² / 24 … 10 AWG
• Connection 1 - Strip length: 12 … 13 mm / 0.47 … 0.51 inches
• Connection 1 - Wiring direction: Side-entry wiring
• Number of levels: 1
• Total number of potentials: 2

Electrical data

• Power Loss - Power loss, per pole (potential): 1.311W
• Power Loss - Rated current I_N for specified power loss: 41A
• Power Loss - Resistance value for specified, current-dependent power loss: 0.001Ω
• Ratings per IEC/EN - Operation status indicator: 230 V

Environmental Product Compliance

• CAS-No.: 7439-92-1
• REACH Candidate List Substance: Lead
• RoHS Compliance Status: Compliant,With Exemption
• RoHS Exemption: 6(c)
• SCIP notification number (Austria): eff037dc-62ad-40e3-b106-cc172fb54aef
• SCIP notification number (Belgium): c3eac3c3-240e-4df2-9a75-ac883afe5ba4
• SCIP notification number (Bulgaria): 3d9b0ca7-f1f4-4151-a4b2-b32b85cb0527
• SCIP notification number (Czech Republic): 45168392-7b32-4702-a506-224dbc650eea
• SCIP notification number (Denmark): be5111ad-5eb6-40a9-8fb5-a9bef96a34f7
• SCIP notification number (Finland): e0354396-1eb8-4eb1-8ea8-07c37fc34019
• SCIP notification number (France): e4fce981-123e-45b1-91e5-a5a765485869
• SCIP notification number (Germany): 25e4a638-5b09-4970-962d-5d0cc921d590
• SCIP notification number (Hungary): 185450dc-047b-4c65-807e-aaecd4774475
• SCIP notification number (Italy): 8353d8c4-aa78-4145-b9e5-ddee1c12af1b
• SCIP notification number (Netherlands): 7c892d24-ad57-429f-8456-532208351143
• SCIP notification number (Poland): 9dfc706a-0049-4d32-b099-825b1e88da83
• SCIP notification number (Romania): bb8ea7dc-ae1c-4058-a5a1-3ce7e42583a3
• SCIP notification number (Sweden): e569a860-d3bb-457f-a70d-6c7805e8a30b

Environmental requirements

• Continuous operating temperature: -60 … +105 °C
• Processing temperature: -35 … +85 °C

Material data

• Color: gray
• Fire load: 0.689MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Material group: I
• Note (material data):
  Information on material specifications can be found here

• Weight: 45g

Mechanical data

• Design: horizontal type
• Marking level: Side marking
• Mounting type: DIN-35 rail

Physical data

• Depth from upper-edge of DIN-rail: 38.5 mm / 1.516 inches
• Height: 87.5 mm / 3.445 inches
• Width: 16 mm / 0.63 inches
