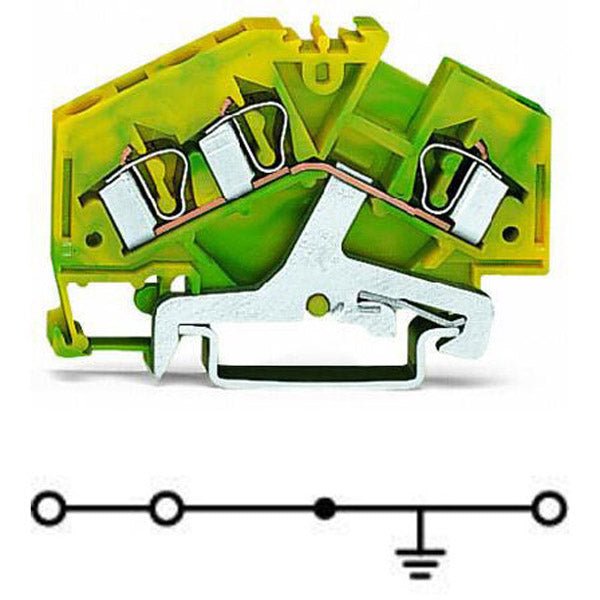

Wago - 281-637

Ground/earthing terminal block with 1-deck/level + center marking slot - WAGO (281 series) - Green-Yellow - 1 grounding / protective-earth (1PE) / 3-wires (2 clamps + 1 clamp) (2+1) - for 0.08mm2...4mm2 / for #28AWG...#12AWG - with CAGE CLAMP spring connections - DIN-35 rail (35 x 15 / 35 x 7.5) mounting (6mm width) - equivalent to 281637

Specifications

• Primary brand: WAGO
• Functions: Ground/earthing terminal block
• Design: 1-deck/level|center marking slot
• Poles: 1 grounding / protective-earth (1PE)
• Temperature: Processing temperature -35°C...+85°C|Continuous operating temperature -60°C...+105°C
• Color: Green-Yellow
• Connection capacity: 3-wires (2 clamps + 1 clamp) (2+1)
• Connection type: CAGE CLAMP spring connections
• Cross-section: for 0.08mm2...4mm2 fine stranded or solid conductors|for #28AWG...#12AWG fine stranded or solid conductors
• Mounting mode: DIN-35 rail (35 x 15 / 35 x 7.5)
• Dimensions: H61.5mm x W6mm x D37mm
• Net Width (mm): 6mm
• Material: Polyamide (PA) 66
• GTIN code: 4045454084516
• ETIM code: EC000901
• eClass code: 27-14-11-41
• Customs Tariff Number: 85369010000
• Order code / Manufacturer SKU: 281-637
• Manufacturer product status: Commercialized
• Equivalent to: 281637
• EAN code: 4045454084516
• Compliant with standard(s): General approvals|- CCA - DEKRA Certification B.V. - IEC 60947 - certificate NTR NL-7454/A1|- CQC - CHINA QUALITY CERT. CENTRE - GB/T 13140.3 - certificate CQC03003003016|- CSA - CSA Group - C22.2 - certificate 1505034|- KEMA/KEUR - DEKRA Certification B.V. - EN 60947 - certificate 71-107288|- UL - UL International Germany GmbH - UL 1059 - certificate E45172|Declarations of conformity and manufacturer's declarations|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for marine applications|- ABS - American Bureau of Shipping - certificate 20-HG1941090-PDA|- BV - Bureau Veritas S.A. - EN 60947 - certificate 07436/F0 BV|- DNV GL - Det Norske Veritas Germanischer Lloyd - certificate TAE00001V2|RoHS compliant|material group I|V-0 flammability rating
• Location of origin: Germany
• Level 1 category: Electrical components
• Level 2 category: Terminal blocks
• Product title: Ground/earthing terminal block - 1-deck/level - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85369010000
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-14-11-41
• eCl@ss 9.0: 27-14-11-41
• ETIM 8.0: EC000901
• ETIM 9.0: EC000901
• GTIN: 4045454084516
• Packaging type: box
• PU (SPU): 100 pcs

Connection data

• Clamping units: 3
• Connection 1 - Actuation type: Operating tool
• Connection 1 - Connectable conductor materials: Copper|Aluminum
• Connection 1 - Connectable conductor materials (note): Terminating Aluminum Conductors
  WAGO Spring-Clamp Terminal Blocks are suitable for solid aluminum conductors up to 4 mm²/12 AWG if WAGO “Alu-Plus” Contact Paste 249-130 is used for termination.

  “Alu-Plus” Contact Paste Advantages:

  • Automatically destroys the oxide film during clamping.
  • Prevents fresh oxidation at the clamping point.
  • Prevents electrolytic corrosion between aluminum and copper conductors (in the same terminal block).
  • Provides long-term protection against corrosion.


  Using terminal blocks with CAGE CLAMP^® Spring Pressure Connection Technology, aluminum conductors must first be cleaned with a blade and then immediately inserted into the clamping units filled with “Alu-Plus” contact paste.

  It is also possible to apply WAGO “Alu-Plus” additionally on the whole surface of the aluminum conductor before termination.

  Please note that the nominal currents must be adapted to the reduced conductivity of the aluminum conductors:
  2.5 mm² = 16 A
  4 mm² = 22 A
• Connection 1 - Connection technology: CAGE CLAMP^®
• Connection 1 - Fine-stranded conductor: 0.08 … 4 mm² / 28 … 12 AWG
• Connection 1 - Solid conductor: 0.08 … 4 mm² / 28 … 12 AWG
• Connection 1 - Strip length: 9 … 10 mm / 0.35 … 0.39 inches
• Connection 1 - Wiring direction: Front-entry wiring, angled
• Number of levels: 1
• Total number of potentials: 1

Electrical data

• Ratings per IEC/EN - Ratings per: IEC/EN 60947-7-2

Environmental Product Compliance

• CAS-No.: 7439-92-1
• REACH Candidate List Substance: Lead
• RoHS Compliance Status: Compliant,No Exemption
• SCIP notification number (Austria): 8ebffd6b-d704-4c73-a1ea-f22d46e7edd8
• SCIP notification number (Belgium): 7d44feb3-424a-4c9c-99e8-eb4d1f389027
• SCIP notification number (Bulgaria): 1b13c812-b496-4e69-bd67-0df0c5418935
• SCIP notification number (Czech Republic): 8a715c8b-aeaa-4031-b9c3-1075e4ed817e
• SCIP notification number (Denmark): 05e879c6-7aa9-40c2-9147-e7a67fa4c81f
• SCIP notification number (Finland): e8bf8034-1627-4da1-9562-bdabd34fa7df
• SCIP notification number (France): 72fcb6fc-9dd9-4035-8a85-7a3d46c7a660
• SCIP notification number (Germany): f5777116-8501-4288-9ca0-d85098732eb3
• SCIP notification number (Hungary): 0cc5bb36-4cff-4c8d-8427-281e431d646d
• SCIP notification number (Italy): b481d356-853f-4c40-abd2-deca378fe50f
• SCIP notification number (Netherlands): 33fdeceb-62aa-4b1c-a68f-35c7820f025d
• SCIP notification number (Poland): 04af376b-5b6f-4c0a-9b75-cd4279d1825a
• SCIP notification number (Romania): 63ff3df5-1f82-4fef-ba5b-6c93e330dd42
• SCIP notification number (Sweden): 24846e08-6cee-449a-87f8-ab0a190b86ac

Environmental requirements

• Continuous operating temperature: -60 … +105 °C
• Processing temperature: -35 … +85 °C

Material data

• Color: green-yellow
• Fire load: 0.182MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Material group: I
• Note (material data):
  Information on material specifications can be found here

• Weight: 16.1g

Mechanical data

• Design: angled
• Marking level: Center marking
• Mounting type: DIN-35 rail

Physical data

• Depth from upper-edge of DIN-rail: 37 mm / 1.457 inches
• Height: 61.5 mm / 2.421 inches
• Width: 6 mm / 0.236 inches
