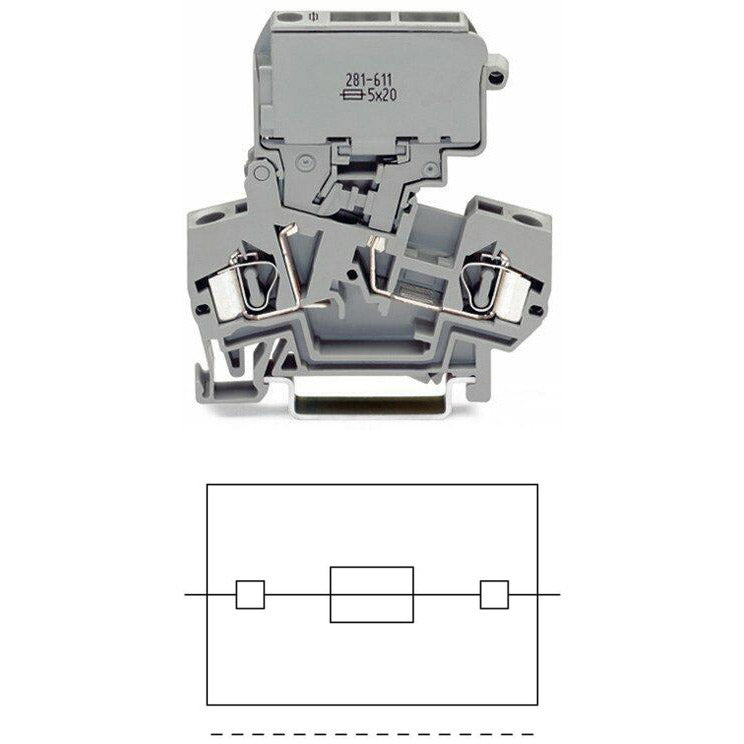

Feed-through/thru terminal block with 1-deck/level + fused-disconnect (lever type; 5x20mm) + center marking slot - WAGO (281 series) - Gray - 1 disconnect feed-through pole (1P) / 2-wires (1 clamp + 1 clamp) (1+1) - for 0.08mm2...4mm2 / for #28AWG...#12AWG - Rated current 10A - with CAGE CLAMP spring connections - DIN-35 rail (35 x 15 / 35 x 7.5) mounting (8mm width) - equivalent to 281611

Specifications

• Primary brand: WAGO
• Functions: Feed-through/thru terminal block
• Design: 1-deck/level|fused-disconnect (lever type; 5x20mm)|center marking slot
• Poles: 1 disconnect feed-through pole (1P)
• Temperature: Processing temperature -35°C...+85°C|Continuous operating temperature -60°C...+105°C
• Rated current: (IEC) 10A|(UL) 10A|(CSA) 10A
• Color: Gray
• Connection capacity: 2-wires (1 clamp + 1 clamp) (1+1)
• Rated operating voltage (Ue): (IEC) 800V|(UL) 600V|(CSA) 600V
• Rated impulse voltage (Uimp): (IEC) 8kV
• Connection type: CAGE CLAMP spring connections
• Cross-section: for 0.08mm2...4mm2 fine stranded or solid conductors|for #28AWG...#12AWG fine stranded or solid conductors
• Mounting mode: DIN-35 rail (35 x 15 / 35 x 7.5)
• Dimensions: H60mm x W8mm x D60mm
• Net Width (mm): 8mm
• Material: Polyamide (PA) 66
• GTIN code: 4045454614591
• Customs Tariff Number: 85369095000
• eClass code: 27-14-11-16
• ETIM code: EC000899
• Order code / Manufacturer SKU: 281-611
• Manufacturer product status: Commercialized
• Equivalent to: 281611
• EAN code: 4045454614591
• Compliant with standard(s): General approvals|- CQC - CHINA QUALITY CERT. CENTRE - GB/T 13140.3 - certificate CQC03003003016|- CSA - CSA Group - C22.2 - certificate 1505034|- KEMA/KEUR - DEKRA Certification B.V. - EN 60947 - certificate 2160584.31|- KEMA/KEUR - DEKRA Certification B.V. - EN 60947 - certificate NTR NL-7135|- UR - UL International Germany GmbH - UL 1059 - certificate E45172|Declarations of conformity and manufacturer's declarations|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for marine applications|- ABS - American Bureau of Shipping - certificate 20-HG1941090-PDA|RoHS compliant|material group I|V-0 flammability rating
• Location of origin: India
• Level 1 category: Electrical components
• Level 2 category: Terminal blocks
• Product title: Feed-through/thru terminal block - 1-deck/level - WAGO

Commercial data

• Country of origin: IN
• Customs tariff number: 85369095000
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-14-11-16
• eCl@ss 9.0: 27-14-11-16
• ETIM 8.0: EC000899
• ETIM 9.0: EC000899
• GTIN: 4045454614591
• Packaging type: box
• Product Group: 1 (Rail Mounted Terminal Blocks)
• PU (SPU): 50 pcs

Connection data

• Clamping units: 2
• Connection 1 - Actuation type: Operating tool
• Connection 1 - Connectable conductor materials: Copper|Aluminum
• Connection 1 - Connectable conductor materials (note): Terminating Aluminum Conductors
  WAGO Spring-Clamp Terminal Blocks are suitable for solid aluminum conductors up to 4 mm²/12 AWG if WAGO “Alu-Plus” Contact Paste 249-130 is used for termination.

  “Alu-Plus” Contact Paste Advantages:

  • Automatically destroys the oxide film during clamping.
  • Prevents fresh oxidation at the clamping point.
  • Prevents electrolytic corrosion between aluminum and copper conductors (in the same terminal block).
  • Provides long-term protection against corrosion.


  Using terminal blocks with CAGE CLAMP^® Spring Pressure Connection Technology, aluminum conductors must first be cleaned with a blade and then immediately inserted into the clamping units filled with “Alu-Plus” contact paste.

  It is also possible to apply WAGO “Alu-Plus” additionally on the whole surface of the aluminum conductor before termination.

  Please note that the nominal currents must be adapted to the reduced conductivity of the aluminum conductors:
  2.5 mm² = 16 A
  4 mm² = 22 A
• Connection 1 - Connection technology: CAGE CLAMP^®
• Connection 1 - Fine-stranded conductor: 0.08 … 4 mm² / 28 … 12 AWG
• Connection 1 - Solid conductor: 0.08 … 4 mm² / 28 … 12 AWG
• Connection 1 - Strip length: 9 … 10 mm / 0.35 … 0.39 inches
• Connection 1 - Wiring direction: Front-entry wiring
• Number of levels: 1
• Total number of potentials: 2

Electrical data

• General information - Fuse receptacle: pivoting
• General information - Fuse type: Cylindrical fuse; 5 x 20 mm
• Power Loss - Power loss (max.) P_{l (max.)} (note): When selecting glass cartridge fuses, make sure that the maximum power loss listed below is not exceeded. The power loss is determined according to IEC or EN 60947-7-3/VDE 0611-6 at 23°C. The temperature rise of the terminal block must be checked according to their application and mounting. Higher ambient temperatures represent an additional impact on miniature fuses. Therefore, in such applications, the rated current must be reduced if necessary. More details are available from the manufacturers.
• Power Loss - Power loss P_l max. overload and short-circuit protection (group arrangement): 1.6W
• Power Loss - Power loss P_l max. overload and short-circuit protection (individual arrangement): 2.5W
• Power Loss - Power loss P_l max. short-circuit protection (group arrangement): 4W
• Power Loss - Power loss P_l max. short-circuit protection (individual arrangement): 4W
• Ratings per IEC/EN - Blown fuse indication: without blown fuse indication
• Ratings per IEC/EN - Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3
• Ratings per IEC/EN - Nominal voltage (III/3): 800V
• Ratings per IEC/EN - Operation status indicator: None
• Ratings per IEC/EN - Rated current: 10A
• Ratings per IEC/EN - Rated impulse withstand voltage (III / 3): 8kV
• Ratings per IEC/EN - Ratings per: IEC/EN 60947-7-3
• Ratings per IEC/EN – Notes - Ratings (note): Electrical ratings are given by the fuse.

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Continuous operating temperature: -60 … +105 °C
• Processing temperature: -35 … +85 °C

Material data

• Color: gray
• Fire load: 0.318MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Material group: I
• Note (material data):
  Information on material specifications can be found here

• Weight: 17g

Mechanical data

• Design: angled
• Marking level: Center marking
• Mounting type: DIN-35 rail

Physical data

• Depth from upper-edge of DIN-rail: 60 mm / 2.362 inches
• Height: 60 mm / 2.362 inches
• Width: 8 mm / 0.315 inches
