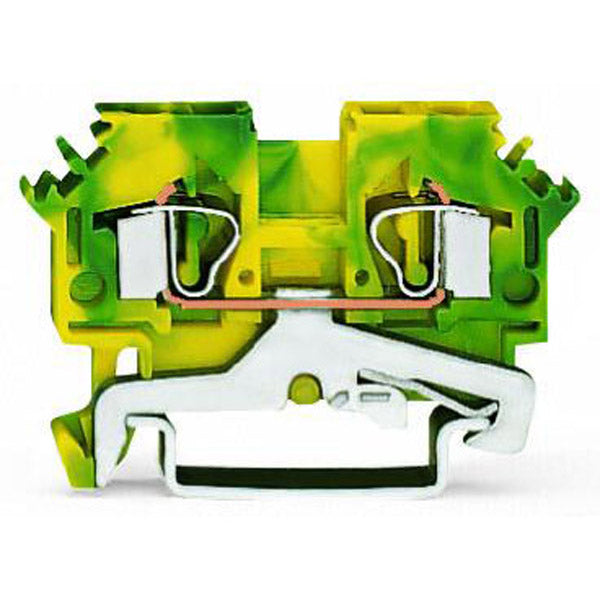

Wago - 281-607

Ground/earthing terminal block with 1-deck/level + side/lateral marking slots - WAGO (281 series) - Green-Yellow - 1 grounding / protective-earth (1PE) / 2-wires (1 clamp + 1 clamp) (1+1) - for 0.08mm2...4mm2 / for #28AWG...#12AWG - with CAGE CLAMP spring connections - DIN-35 rail (35 x 15 / 35 x 7.5) mounting (6mm width) - equivalent to 281607

Specifications

• Primary brand: WAGO
• Functions: Ground/earthing terminal block
• Design: 1-deck/level|side/lateral marking slots
• Poles: 1 grounding / protective-earth (1PE)
• Temperature: Processing temperature -35°C...+85°C|Continuous operating temperature -60°C...+105°C
• Color: Green-Yellow
• Connection capacity: 2-wires (1 clamp + 1 clamp) (1+1)
• Connection type: CAGE CLAMP spring connections
• Cross-section: for 0.08mm2...4mm2 fine stranded or solid conductors|for #28AWG...#12AWG fine stranded or solid conductors
• Mounting mode: DIN-35 rail (35 x 15 / 35 x 7.5)
• Dimensions: H53mm x W6mm x D29mm
• Net Width (mm): 6mm
• Material: Polyamide (PA) 66
• eClass code: 27-14-11-41
• ETIM code: EC000901
• Customs Tariff Number: 85369010000
• GTIN code: 4044918511971
• Order code / Manufacturer SKU: 281-607
• Manufacturer product status: Commercialized
• Equivalent to: 281607
• EAN code: 4044918511971
• Compliant with standard(s): General approvals|- CCA - DEKRA Certification B.V. - IEC 60947 - certificate NTR NL-7454/A1|- CQC - CHINA QUALITY CERT. CENTRE - GB/T 13140.3 - certificate CQC03003003016|- CSA - CSA Group - C22.2 - certificate 1505034|- KEMA/KEUR - DEKRA Certification B.V. - EN 60947 - certificate 71-107288|- UL - UL International Germany GmbH - UL 1059 - certificate E45172|Declarations of conformity and manufacturer's declarations|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for marine applications|- ABS - American Bureau of Shipping - certificate 20-HG1941090-PDA|- BV - Bureau Veritas S.A. - EN 60947 - certificate 07436/F0 BV|- DNV GL - Det Norske Veritas Germanischer Lloyd - certificate TAE00001V2|RoHS compliant|material group I|V-0 flammability rating
• Location of origin: Germany
• Level 1 category: Electrical components
• Level 2 category: Terminal blocks
• Product title: Ground/earthing terminal block - 1-deck/level - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85369010000
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-14-11-41
• eCl@ss 9.0: 27-14-11-41
• ETIM 8.0: EC000901
• ETIM 9.0: EC000901
• GTIN: 4044918511971
• Packaging type: box
• Product Group: 1 (Rail Mounted Terminal Blocks)
• PU (SPU): 50 pcs

Connection data

• Clamping units: 2
• Connection 1 - Actuation type: Operating tool
• Connection 1 - Connectable conductor materials: Copper|Aluminum
• Connection 1 - Connectable conductor materials (note): Terminating Aluminum Conductors
  WAGO Spring-Clamp Terminal Blocks are suitable for solid aluminum conductors up to 4 mm²/12 AWG if WAGO “Alu-Plus” Contact Paste 249-130 is used for termination.

  “Alu-Plus” Contact Paste Advantages:

  • Automatically destroys the oxide film during clamping.
  • Prevents fresh oxidation at the clamping point.
  • Prevents electrolytic corrosion between aluminum and copper conductors (in the same terminal block).
  • Provides long-term protection against corrosion.


  Using terminal blocks with CAGE CLAMP^® Spring Pressure Connection Technology, aluminum conductors must first be cleaned with a blade and then immediately inserted into the clamping units filled with “Alu-Plus” contact paste.

  It is also possible to apply WAGO “Alu-Plus” additionally on the whole surface of the aluminum conductor before termination.

  Please note that the nominal currents must be adapted to the reduced conductivity of the aluminum conductors:
  2.5 mm² = 16 A
  4 mm² = 22 A
• Connection 1 - Connection technology: CAGE CLAMP^®
• Connection 1 - Fine-stranded conductor: 0.08 … 4 mm² / 28 … 12 AWG
• Connection 1 - Solid conductor: 0.08 … 4 mm² / 28 … 12 AWG
• Connection 1 - Strip length: 9 … 10 mm / 0.35 … 0.39 inches
• Connection 1 - Wiring direction: Front-entry wiring
• Number of levels: 1
• Total number of potentials: 1

Electrical data

• Ratings per IEC/EN - Ratings per: IEC/EN 60947-7-2

Environmental Product Compliance

• CAS-No.: 7439-92-1
• REACH Candidate List Substance: Lead
• RoHS Compliance Status: Compliant,No Exemption
• SCIP notification number (Austria): cde857ac-9f5e-427c-a3ce-5750a9426d46
• SCIP notification number (Belgium): 13207e6e-08f6-48ee-a5af-5db0e3632a80
• SCIP notification number (Bulgaria): 27ba45f5-02f8-4106-9cca-e7966d0a1056
• SCIP notification number (Czech Republic): ca58af72-a944-4109-bb63-be2fa05b86d1
• SCIP notification number (Denmark): 66e4b624-eb59-4fc9-9499-11c25e290204
• SCIP notification number (Finland): c6beeb7d-4eed-4b49-bd4c-9e14409cd660
• SCIP notification number (France): a24bb8e4-14a6-4291-8484-bfdfd0dc0300
• SCIP notification number (Germany): acdc5dd8-0983-49fc-8073-cea882d7db1e
• SCIP notification number (Hungary): c42495f8-088a-4a50-b54a-4b2c61e2ae0d
• SCIP notification number (Italy): 09122bba-6fd4-407e-a07e-5b6bbb55508b
• SCIP notification number (Netherlands): 6b49152b-d73b-4aa2-93ab-a0745ce46107
• SCIP notification number (Poland): 1c901ba7-ca77-4eeb-b2f1-a5147838035d
• SCIP notification number (Romania): a68d889b-61ed-4a6d-bfea-ce80a3b5116c
• SCIP notification number (Sweden): a1fcb201-4d61-4a47-9743-b14436ba71fb

Environmental requirements

• Continuous operating temperature: -60 … +105 °C
• Processing temperature: -35 … +85 °C

Material data

• Color: green-yellow
• Fire load: 0.118MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Material group: I
• Note (material data):
  Information on material specifications can be found here

• Weight: 11.3g

Mechanical data

• Design: horizontal type
• Marking level: Side marking
• Mounting type: DIN-35 rail

Physical data

• Depth from upper-edge of DIN-rail: 29 mm / 1.142 inches
• Height: 53 mm / 2.087 inches
• Width: 6 mm / 0.236 inches
