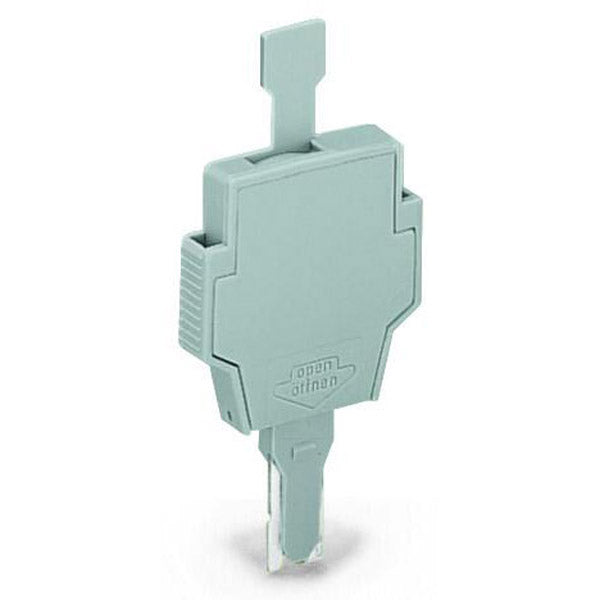

Wago - 281-512

Fuse plug with pull-tab + port for LED - WAGO (281 series) - Rated current 6.3A - Gray color - compatible with miniature metric fuses 5x20mm and 5mm x 25mm - equivalent to 281512

Specifications

• Primary brand: WAGO
• Functions: Fuse plug
• Design: pull-tab|port for LED
• Temperature: Processing temperature -35°C...+85°C|Continuous operating temperature -60°C...+105°C
• Rated current: 6.3A
• Color: Gray
• Rated operating voltage (Ue): 250V
• Dimensions: W5mm
• Material: Polyamide (PA) 66
• Technical compatibility with: miniature metric fuses 5x20mm and 5mm x 25mm
• ETIM code: EC002018
• Customs Tariff Number: 85366990990
• GTIN code: 4050821032557
• eClass code: 27-14-11-49
• Order code / Manufacturer SKU: 281-512
• Manufacturer product status: Commercialized
• Equivalent to: 281512
• EAN code: 4050821032557
• Compliant with standard(s): General approvals|- CCA - DEKRA Certification B.V. - EN 60947 - certificate 2160584.53|- CSA - CSA Group - C22.2 - certificate 1505034|- KEMA/KEUR - DEKRA Certification B.V. - EN 60947 - certificate NTR NL-7135|- UL - Underwriters Laboratories Inc. - UL 1059 - certificate 20170731-E45172|Declarations of conformity and manufacturer's declarations|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for marine applications|- ABS - American Bureau of Shipping - EN 60947 - certificate 20-HG1941090-PDA|- ABS - American Bureau of Shipping - certificate 20-HG1941090-PDA|RoHS compliant|material group I|V-0 flammability rating
• Location of origin: China
• Level 1 category: Electrical components
• Level 2 category: Electrical circuits protection
• Product title: Fuse plug - WAGO

Commercial data

• Country of origin: CN
• Customs tariff number: 85366990990
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-14-11-49
• eCl@ss 9.0: 27-14-11-49
• ETIM 8.0: EC002018
• ETIM 9.0: EC002018
• GTIN: 4050821032557
• Packaging type: box
• Product Group: 1 (Rail Mounted Terminal Blocks)
• PU (SPU): 50 pcs

Electrical data

• General information - Fuse type: Cylindrical fuse; 5 x 20 mm and 5 x 25 mm
• Power Loss - Power loss (max.) P_{l (max.)} (note): When selecting glass cartridge fuses, make sure that the maximum power loss listed below is not exceeded. The power loss is determined according to IEC or EN 60947-7-3/VDE 0611-6 at 23°C. The temperature rise of the terminal block must be checked according to their application and mounting. Higher ambient temperatures represent an additional impact on miniature fuses. Therefore, in such applications, the rated current must be reduced if necessary. More details are available from the manufacturers.
• Ratings per IEC/EN - Nominal voltage (III/3): 250V
• Ratings per IEC/EN - Operation status indicator: None
• Ratings per IEC/EN - Rated current: 6.3A
• Ratings per IEC/EN – Notes - Ratings (note): Electrical ratings are given by the fuse.

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Continuous operating temperature: -60 … +105 °C
• Processing temperature: -35 … +85 °C

Material data

• Color: gray
• Fire load: 0.076MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Material group: I
• Note (material data):
  Information on material specifications can be found here

• Weight: 6.1g

Mechanical data

• Marking level: Center marking

Physical data

• Width: 6 mm / 0.236 inches
