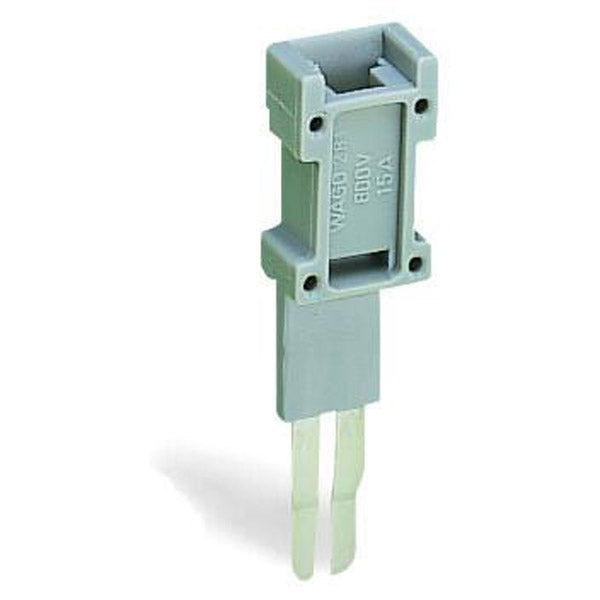

Wago - 281-418

Test plug module - WAGO (281 series) - 1-pole (1P) - Gray color - Plug-in mounting (6mm width) - equivalent to 281418

Specifications

• Primary brand: WAGO
• Functions: Test plug module
• Poles: 1-pole (1P)
• Color: Gray
• Mounting mode: Plug-in
• Dimensions: W6mm
• Net Width (mm): 6mm
• Material: Polyamide (PA) 66
• Technical compatibility with: 281 series|776 series|777 series|781 series
• GTIN code: 4044918276320
• eClass code: 27-14-11-48
• Customs Tariff Number: 85366990990
• ETIM code: EC002255
• Order code / Manufacturer SKU: 281-418
• Manufacturer product status: Commercialized
• Equivalent to: 281418
• EAN code: 4044918276320
• Compliant with standard(s): RoHS compliant|material group I|V-0 flammability rating
• Location of origin: Germany
• Level 1 category: Cabling systems
• Level 2 category: Connectors & Inserts
• Product title: Test plug module - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85366990990
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-14-11-48
• eCl@ss 9.0: 27-14-11-48
• ETIM 8.0: EC002255
• ETIM 9.0: EC002255
• GTIN: 4044918276320
• Packaging type: box
• Product Group: 1 (Rail Mounted Terminal Blocks)
• PU (SPU): 100 (25) pcs

Electrical data

• General information - Test current: 6A
• General information - Test voltage: 400V

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Material data

• Color: gray
• Fire load: 0.17MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Material group: I
• Note (material data):
  Information on material specifications can be found here

• Weight: 1.9g

Notes

• Safety Information: These test plugs are not suitable for Ex e applications.

Physical data

• Module width: 6 mm / 0.236 inches
• Width: 6 mm / 0.236 inches
