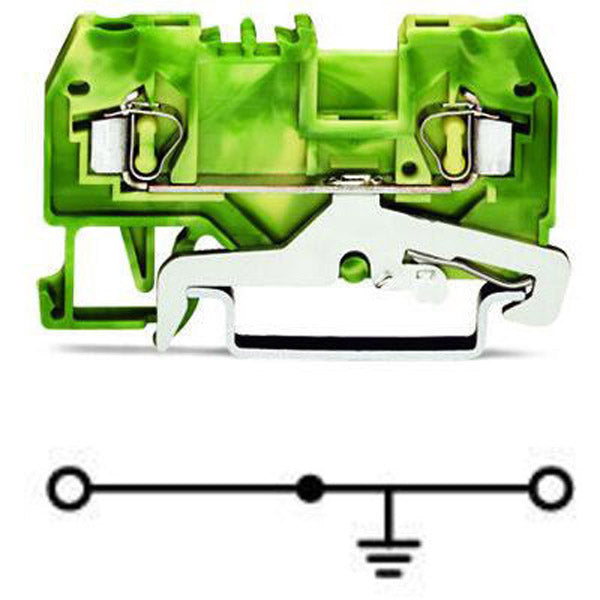

Wago - 280-907

Ground/earthing terminal block with 1-deck/level + center marking slot - WAGO (280 series) - Green-Yellow - 1 grounding / protective-earth (1PE) / 2-wires (1 clamp + 1 clamp) (1+1) - for 0.08mm2...2.5mm2 / for #28AWG...#12AWG - with CAGE CLAMP spring connections - DIN-35 rail (35 x 15 / 35 x 7.5) mounting (5mm width) - equivalent to 280907

Specifications

• Primary brand: WAGO
• Functions: Ground/earthing terminal block
• Design: 1-deck/level|center marking slot
• Poles: 1 grounding / protective-earth (1PE)
• Temperature: Processing temperature -35°C...+85°C|Continuous operating temperature -60°C...+105°C
• Color: Green-Yellow
• Connection capacity: 2-wires (1 clamp + 1 clamp) (1+1)
• Connection type: CAGE CLAMP spring connections
• Cross-section: for 0.08mm2...2.5mm2 fine stranded or solid conductors|for #28AWG...#12AWG fine stranded or solid conductors
• Mounting mode: DIN-35 rail (35 x 15 / 35 x 7.5)
• Dimensions: H54mm x W5mm x D28mm
• Net Width (mm): 5mm
• Material: Polyamide (PA) 66
• eClass code: 27-14-11-41
• ETIM code: EC000901
• GTIN code: 4045454100179
• Customs Tariff Number: 85369010000
• Order code / Manufacturer SKU: 280-907
• Manufacturer product status: Commercialized
• Equivalent to: 280907
• EAN code: 4045454100179
• Compliant with standard(s): General approvals|- CCA - DEKRA Certification B.V. - EN 60947 - certificate 2157201.01|- CQC - CHINA QUALITY CERT. CENTRE - GB/T 13140.3 - certificate CQC03003003015|- CSA - DEKRA Certification B.V. - C22.2 - certificate 1536071|- UL - UL International Germany GmbH - UL 1059 - certificate E45172|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for marine applications|- ABS - American Bureau of Shipping - EN 60947 - certificate 20-HG1941090-PDA|- BV - Bureau Veritas S.A. - EN 60947 - certificate 07436/F0 BV|- DNV GL - Det Norske Veritas Germanischer Lloyd - certificate TAE00001V2|- LR - Lloyds Register - EN 60947 - certificate 91/20112 (E9)|RoHS compliant|material group I|V-0 flammability rating
• Location of origin: Germany
• Level 1 category: Electrical components
• Level 2 category: Terminal blocks
• Product title: Ground/earthing terminal block - 1-deck/level - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85369010000
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-14-11-41
• eCl@ss 9.0: 27-14-11-41
• ETIM 8.0: EC000901
• ETIM 9.0: EC000901
• GTIN: 4045454100179
• Packaging type: box
• Product Group: 1 (Rail Mounted Terminal Blocks)
• PU (SPU): 100 pcs

Connection data

• Clamping units: 2
• Connection 1 - Actuation type: Operating tool
• Connection 1 - Connectable conductor materials: Copper|Aluminum
• Connection 1 - Connectable conductor materials (note): Terminating Aluminum Conductors
  WAGO Spring-Clamp Terminal Blocks are suitable for solid aluminum conductors up to 4 mm²/12 AWG if WAGO “Alu-Plus” Contact Paste 249-130 is used for termination.

  “Alu-Plus” Contact Paste Advantages:

  • Automatically destroys the oxide film during clamping.
  • Prevents fresh oxidation at the clamping point.
  • Prevents electrolytic corrosion between aluminum and copper conductors (in the same terminal block).
  • Provides long-term protection against corrosion.


  Using terminal blocks with CAGE CLAMP^® Spring Pressure Connection Technology, aluminum conductors must first be cleaned with a blade and then immediately inserted into the clamping units filled with “Alu-Plus” contact paste.

  It is also possible to apply WAGO “Alu-Plus” additionally on the whole surface of the aluminum conductor before termination.

  Please note that the nominal currents must be adapted to the reduced conductivity of the aluminum conductors:
  2.5 mm² = 16 A
  4 mm² = 22 A
• Connection 1 - Connection technology: CAGE CLAMP^®
• Connection 1 - Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Connection 1 - Note (conductor cross-section): 12 AWG: THHN, THWN
• Connection 1 - Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Connection 1 - Strip length: 8 … 9 mm / 0.31 … 0.35 inches
• Connection 1 - Wiring direction: Front-entry wiring
• Number of levels: 1
• Total number of potentials: 1

Electrical data

• Ratings per IEC/EN - Ratings per: IEC/EN 60947-7-2

Environmental Product Compliance

• CAS-No.: 7439-92-1
• REACH Candidate List Substance: Lead
• RoHS Compliance Status: Compliant,No Exemption
• SCIP notification number (Austria): 18e26855-91e8-4442-b705-f198d15e19e8
• SCIP notification number (Belgium): b600a6c6-1d3f-44db-9b23-212f7ec5ee10
• SCIP notification number (Bulgaria): 399d382a-08d7-48ae-ad0f-f8cebd3e1e13
• SCIP notification number (Czech Republic): d0ab3461-2d11-4bc7-bef1-28fdc7d09343
• SCIP notification number (Denmark): 94113d67-fe5a-44ed-903d-a17ce038737a
• SCIP notification number (Finland): 1bebf0c6-a0e4-4f47-b576-718db5f7dc14
• SCIP notification number (France): a8ca7f20-283c-463c-881b-dcda7e63d5a5
• SCIP notification number (Germany): deac4deb-204d-4b5a-a2ae-68dd97f23e9c
• SCIP notification number (Hungary): d246fe8b-2c66-48ef-b462-3e6036cda0d1
• SCIP notification number (Italy): ff80d485-6ecd-443b-acfd-b63ffed5e198
• SCIP notification number (Netherlands): 872333a5-6d95-449f-883f-4d391dadfedb
• SCIP notification number (Poland): 458bc002-4cf4-495e-9df1-5bc722412835
• SCIP notification number (Romania): b1d5698f-38e6-4e49-aee9-a4a691b3a8d7
• SCIP notification number (Sweden): 66ddfc38-1962-4b25-ab97-8d86982c64ed

Environmental requirements

• Continuous operating temperature: -60 … +105 °C
• Processing temperature: -35 … +85 °C

Material data

• Color: green-yellow
• Fire load: 0.09MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Material group: I
• Note (material data):
  Information on material specifications can be found here

• Weight: 9.2g

Mechanical data

• Design: horizontal type
• Marking level: Center marking
• Mounting type: DIN-35 rail

Physical data

• Depth from upper-edge of DIN-rail: 28 mm / 1.102 inches
• Height: 54 mm / 2.126 inches
• Width: 5 mm / 0.197 inches
