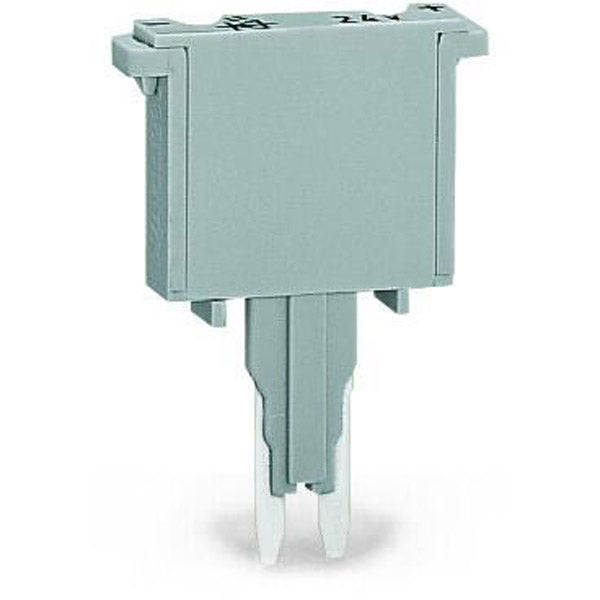

Wago - 280-850

Fuse plug with soldered miniature fuse (250mA FF) - WAGO (280 series) - Rated current 5A - Gray color - equivalent to 280850

Specifications

• Primary brand: WAGO
• Functions: Fuse plug
• Design: soldered miniature fuse (250mA FF)
• Temperature: Processing temperature -35°C...+85°C|Continuous operating temperature -60°C...+105°C
• Rated current: 5A
• Color: Gray
• Rated operating voltage (Ue): 125V
• Dimensions: W5mm
• Material: Polyamide (PA) 66
• Customs Tariff Number: 85366990990
• ETIM code: EC002018
• eClass code: 27-14-11-49
• GTIN code: 4045454196387
• Order code / Manufacturer SKU: 280-850
• Manufacturer product status: Commercialized
• Equivalent to: 280850
• EAN code: 4045454196387
• Compliant with standard(s): General approvals|- CCA - DEKRA Certification B.V. - EN 60947 - certificate 2160584.53|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for marine applications|- ABS - American Bureau of Shipping - EN 60947 - certificate 20-HG1941090-PDA|- DNV GL - Det Norske Veritas Germanischer Lloyd - certificate TAE00001V2|RoHS compliant|material group I|V-0 flammability rating
• Location of origin: Germany
• Level 1 category: Electrical components
• Level 2 category: Electrical circuits protection
• Product title: Fuse plug - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85366990990
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-14-11-49
• eCl@ss 9.0: 27-14-11-49
• ETIM 8.0: EC002018
• ETIM 9.0: EC002018
• GTIN: 4045454196387
• Packaging type: box
• Product Group: 1 (Rail Mounted Terminal Blocks)
• PU (SPU): 100 pcs

Electrical data

• General information - Fuse type: Miniature fuse; 250 mA FF
• Ratings per IEC/EN - Nominal voltage (III/3): 125V
• Ratings per IEC/EN - Operation status indicator: None
• Ratings per IEC/EN - Rated current: 5A
• Ratings per IEC/EN – Notes - Ratings (note): Electrical ratings are given by the fuse.

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Continuous operating temperature: -60 … +105 °C
• Processing temperature: -35 … +85 °C

Material data

• Color: gray
• Fire load: 0.099MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Material group: I
• Note (material data):
  Information on material specifications can be found here

• Weight: 2.7g

Mechanical data

• Marking level: without marking level

Physical data

• Width: 5 mm / 0.197 inches
