Wago - 280-804

Wago - 280-804

$6.07

$6.07

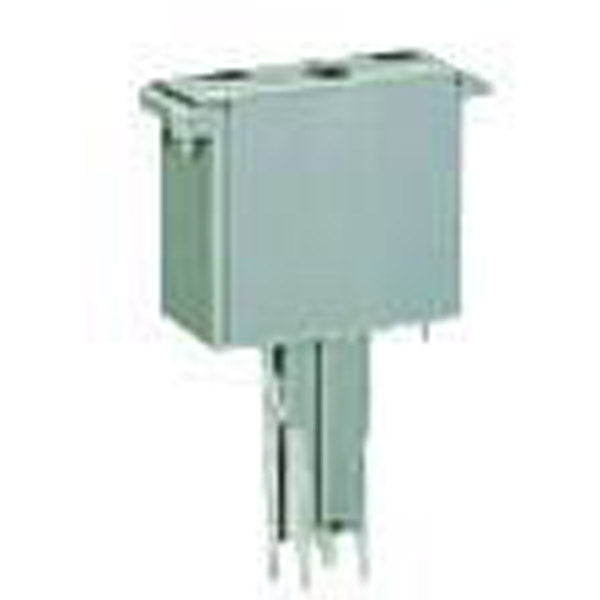

Empty component plug housing - type 3 - WAGO (280 series) - 4-poles (4P) - Rated current 6A - Gray color - Plug-in mounting - equivalent to 280804

Specifications

Primary brand: WAGO
Functions: Empty component plug housing
Design: type 3
Poles: 4-poles (4P)
Temperature: Processing temperature -35°C...+85°C
Rated current: 6A
Color: Gray
Rated operating voltage (Ue): 250V
Mounting mode: Plug-in
Dimensions: W10mm
Material: Polyamide (PA) 66
Customs Tariff Number: 85366990990
ETIM code: EC002018
GTIN code: 4044918270434
eClass code: 27-14-11-49
Order code / Manufacturer SKU: 280-804
Manufacturer product status: Commercialized
Equivalent to: 280804
EAN code: 4044918270434
Compliant with standard(s): RoHS compliant|material group I|V-0 flammability rating
Location of origin: Germany
Degree of pollution: 3
Level 1 category: Electrical components
Product title: Empty component plug housing - WAGO

Commercial data

Country of origin: DE
Customs tariff number: 85366990990
ECCN: NO US CLASSIFICATION
eCl@ss 10.0: 27-14-11-49
eCl@ss 9.0: 27-18-27-02
ETIM 8.0: EC002018
ETIM 9.0: EC002018
GTIN: 4044918270434
Packaging type: box
Product Group: 1 (Rail Mounted Terminal Blocks)
PU (SPU): 50 pcs

Connection data

Pole number: 4
Wiring direction: Front-entry wiring

Electrical data

Rated continuous current: 6A

Environmental Product Compliance

RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

Processing temperature: -35 … +85 °C

Material data

Color: gray
Fire load: 0.134MJ
Flammability class per UL94: V0
Insulation material (main housing): Polyamide (PA66)
Material group: I
Weight: 4g

Mechanical data

Housing design: Plug for carrier terminal blocks
Mounting type: Pluggable module for carrier terminal block

Notes

Note: Plug inside dimensions: W/H/L (8.2/15/15) mm

Physical data

Width: 10 mm / 0.394 inches

Safety and protection

Pollution degree: 3
Rated impulse withstand voltage: 4kV
Rated voltage: 250V
