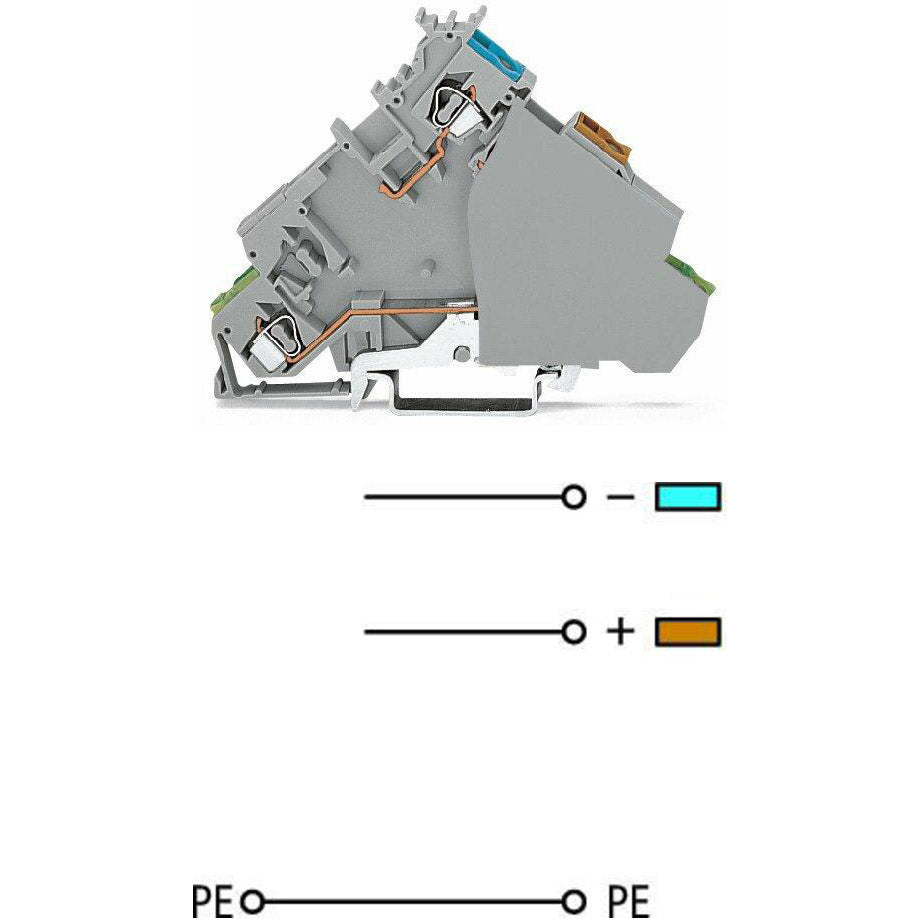

Wago - 280-577

Sensr. suppl. terminal block with 4-decks/levels (quadruple-deck) + ground contact + built-in end plate (terminal is closed on both sides) + center marking slot - WAGO (280 series) - Gray - 4-conductors / 4-wires (4 clamps) - for 0.08mm2...2.5mm2 / for #28AWG...#12AWG - Rated current 20A - with CAGE CLAMP spring connections - DIN-35 rail mounting (6mm width) - equivalent to 280577

Specifications

• Primary brand: WAGO
• Functions: Sensr. suppl. terminal block
• Design: 4-decks/levels (quadruple-deck)|ground contact|built-in end plate (terminal is closed on both sides)|center marking slot|colored wire entry
• Poles: 4-conductors
• Temperature: Processing temperature -35°C...+85°C|Continuous operating temperature -60°C...+105°C
• Rated current: (IEC) 20A
• Color: Gray
• Connection capacity: 4-wires (4 clamps)
• Rated operating voltage (Ue): (IEC) 400V
• Rated impulse voltage (Uimp): (IEC) 6kV
• Connection type: CAGE CLAMP spring connections
• Cross-section: for 0.08mm2...2.5mm2 fine stranded or solid conductors|for #28AWG...#12AWG fine stranded or solid conductors
• Mounting mode: DIN-35 rail
• Dimensions: H90.5mm x W6mm x D63.5mm
• Net Width (mm): 6mm
• Material: Polyamide (PA) 66
• GTIN code: 4045454093891
• eClass code: 27-14-11-28
• ETIM code: EC000900
• Customs Tariff Number: 85369010000
• Order code / Manufacturer SKU: 280-577
• Manufacturer product status: Commercialized
• Equivalent to: 280577
• EAN code: 4045454093891
• Compliant with standard(s): General approvals|- CCA - DEKRA Certification B.V. - EN 60947 - certificate 2160584.53|- CSA - DEKRA Certification B.V. - C22.2 - certificate 1536071|- UR - Underwriters Laboratories Inc. - UL 1059 - certificate E45172|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for marine applications|- ABS - American Bureau of Shipping - EN 60947 - certificate 20-HG1941090-PDA|- DNV GL - Det Norske Veritas Germanischer Lloyd - certificate TAE00001V2|RoHS compliant|material group I|V-0 flammability rating
• Location of origin: Germany
• Level 1 category: Electrical components
• Level 2 category: Terminal blocks
• Product title: Sensr. suppl. terminal block - 4-decks/levels (quadruple-deck) - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85369010000
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-14-11-28
• eCl@ss 9.0: 27-14-11-28
• ETIM 8.0: EC000900
• ETIM 9.0: EC000900
• GTIN: 4045454093891
• Packaging type: box
• Product Group: 1 (Rail Mounted Terminal Blocks)
• PU (SPU): 20 pcs

Connection data

• Clamping units: 4
• Connection 1 - Actuation type: Operating tool
• Connection 1 - Connectable conductor materials: Copper|Aluminum
• Connection 1 - Connectable conductor materials (note): Terminating Aluminum Conductors
  WAGO Spring-Clamp Terminal Blocks are suitable for solid aluminum conductors up to 4 mm²/12 AWG if WAGO “Alu-Plus” Contact Paste 249-130 is used for termination.

  “Alu-Plus” Contact Paste Advantages:

  • Automatically destroys the oxide film during clamping.
  • Prevents fresh oxidation at the clamping point.
  • Prevents electrolytic corrosion between aluminum and copper conductors (in the same terminal block).
  • Provides long-term protection against corrosion.


  Using terminal blocks with CAGE CLAMP^® Spring Pressure Connection Technology, aluminum conductors must first be cleaned with a blade and then immediately inserted into the clamping units filled with “Alu-Plus” contact paste.

  It is also possible to apply WAGO “Alu-Plus” additionally on the whole surface of the aluminum conductor before termination.

  Please note that the nominal currents must be adapted to the reduced conductivity of the aluminum conductors:
  2.5 mm² = 16 A
  4 mm² = 22 A
• Connection 1 - Connection technology: CAGE CLAMP^®
• Connection 1 - Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Connection 1 - Note (conductor cross-section): 12 AWG: THHN, THWN
• Connection 1 - Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Connection 1 - Strip length: 8 … 9 mm / 0.31 … 0.35 inches
• Connection 1 - Wiring direction: Front-entry wiring
• Number of levels: 4
• Total number of potentials: 3

Electrical data

• Power Loss - Power loss, per pole (potential): 0.532W
• Power Loss - Rated current I_N for specified power loss: 20A
• Power Loss - Resistance value for specified, current-dependent power loss: 0.001Ω
• Ratings per IEC/EN - Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3
• Ratings per IEC/EN - Nominal voltage (III/3): 400V
• Ratings per IEC/EN - Rated current: 20A
• Ratings per IEC/EN - Rated impulse withstand voltage (III / 3): 6kV

Environmental Product Compliance

• CAS-No.: 7439-92-1
• REACH Candidate List Substance: Lead
• RoHS Compliance Status: Compliant,No Exemption
• SCIP notification number (Austria): 9520f455-4efd-4344-a152-bc9379f88c42
• SCIP notification number (Belgium): 741457ef-1b95-4b70-890d-dd787cfdcf37
• SCIP notification number (Bulgaria): 04bf4b22-9450-4202-80c3-aa5e76ada93f
• SCIP notification number (Czech Republic): 6aee7f51-a90a-42d6-b16b-7100f21a71dc
• SCIP notification number (Denmark): a1318be2-cece-4be6-9963-3b6467e8f76f
• SCIP notification number (Finland): 8b2755dc-164a-44a8-9ca3-07d9b94bd381
• SCIP notification number (France): 6b74a0e5-62f2-4863-8839-1cf7b2980580
• SCIP notification number (Germany): fe00c0b7-443b-40a9-ada4-a291cc689d32
• SCIP notification number (Hungary): 23dc1ed7-75e6-40fb-bf28-95e05fe1fe8b
• SCIP notification number (Italy): 306625e0-2041-42c3-a31b-06422a41e3d8
• SCIP notification number (Netherlands): 5d171a93-790a-4476-8d45-6ee1c7b64ff6
• SCIP notification number (Poland): a322291e-3680-4111-89fd-d19dfd4685e3
• SCIP notification number (Romania): fbab35aa-a49f-4ab1-93aa-770fa3452074
• SCIP notification number (Sweden): f005e2c3-5a0f-4843-b092-2d010424e337

Environmental requirements

• Continuous operating temperature: -60 … +105 °C
• Processing temperature: -35 … +85 °C

Material data

• Color: gray
• Fire load: 0.433MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Material group: I
• Note (material data):
  Information on material specifications can be found here

• Weight: 20g

Mechanical data

• Design: angled
• Marking level: Center marking
• Mounting type: DIN-35 rail

Physical data

• Depth from upper-edge of DIN-rail: 63.5 mm / 2.5 inches
• Height: 90.5 mm / 3.563 inches
• Width: 6 mm / 0.236 inches
