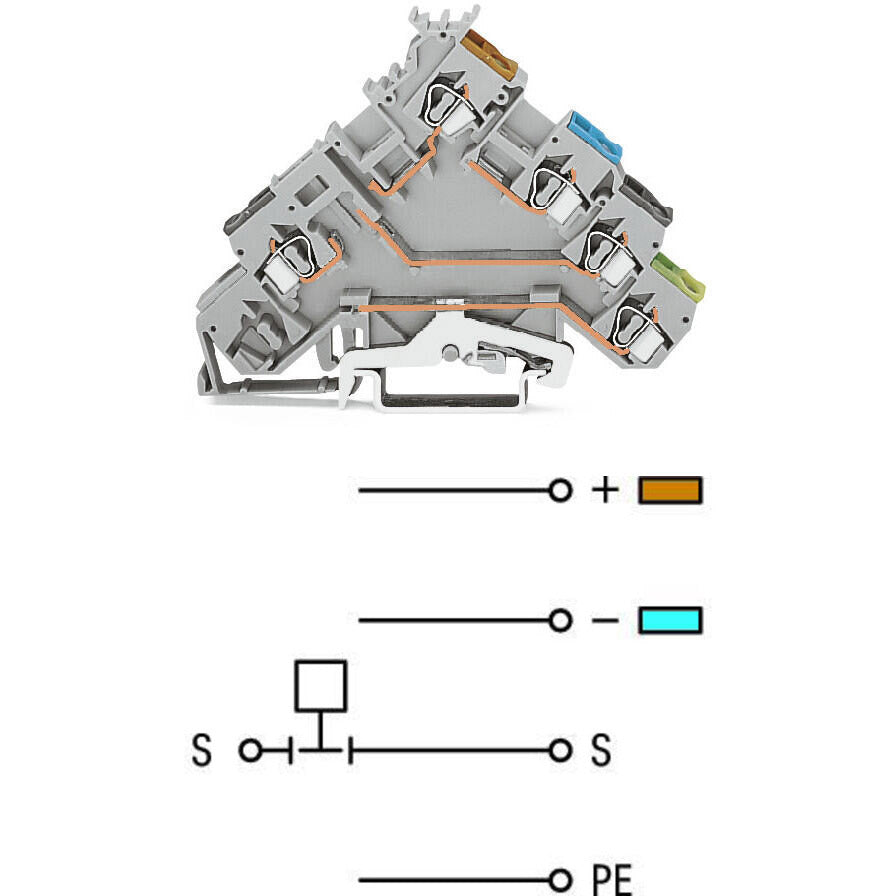

Sensr. terminal block with 4-decks/levels (quadruple-deck) + pluggable-disconnect + ground contact + center marking slot - WAGO (280 series) - Gray - 4-conductors / 5-wires (5 clamps) - for 0.08mm2...2.5mm2 / for #28AWG...#12AWG - Rated current 6A - with CAGE CLAMP spring connections - DIN-35 rail mounting (5mm width) - equivalent to 280571

Specifications

• Primary brand: WAGO
• Functions: Sensr. terminal block
• Design: 4-decks/levels (quadruple-deck)|pluggable-disconnect|ground contact|center marking slot|colored wire entry
• Poles: 4-conductors
• Temperature: Processing temperature -35°C...+85°C|Continuous operating temperature -60°C...+105°C
• Rated current: (IEC) 6A|(UL) 6A|(CSA) 15A
• Color: Gray
• Connection capacity: 5-wires (5 clamps)
• Rated operating voltage (Ue): (IEC) 250V|(UL) 300V|(CSA) 300V
• Rated impulse voltage (Uimp): (IEC) 4kV
• Connection type: CAGE CLAMP spring connections
• Cross-section: for 0.08mm2...2.5mm2 fine stranded or solid conductors|for #28AWG...#12AWG fine stranded or solid conductors
• Mounting mode: DIN-35 rail
• Dimensions: H90.5mm x W5mm x D63.5mm
• Net Width (mm): 5mm
• Material: Polyamide (PA) 66
• ETIM code: EC000900
• Customs Tariff Number: 85369010000
• GTIN code: 4045454093716
• eClass code: 27-14-11-28
• Order code / Manufacturer SKU: 280-571
• Manufacturer product status: Commercialized
• Equivalent to: 280571
• EAN code: 4045454093716
• Compliant with standard(s): General approvals|- CCA - DEKRA Certification B.V. - EN 60947 - certificate 2160584.53|- CSA - DEKRA Certification B.V. - C22.2 - certificate 1536071|- UR - Underwriters Laboratories Inc. - UL 1059 - certificate E45172|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for marine applications|- ABS - American Bureau of Shipping - EN 60947 - certificate 20-HG1941090-PDA|- DNV GL - Det Norske Veritas Germanischer Lloyd - certificate TAE00001V2|RoHS compliant|material group I|V-0 flammability rating
• Location of origin: Germany
• Level 1 category: Electrical components
• Level 2 category: Terminal blocks
• Product title: Sensr. terminal block - 4-decks/levels (quadruple-deck) - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85369010000
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-14-11-28
• eCl@ss 9.0: 27-14-11-28
• ETIM 8.0: EC000900
• ETIM 9.0: EC000900
• GTIN: 4045454093716
• Packaging type: box
• Product Group: 1 (Rail Mounted Terminal Blocks)
• PU (SPU): 50 pcs

Connection data

• Clamping units: 5
• Connection 1 - Actuation type: Operating tool
• Connection 1 - Connectable conductor materials: Copper|Aluminum
• Connection 1 - Connectable conductor materials (note): Terminating Aluminum Conductors
  WAGO Spring-Clamp Terminal Blocks are suitable for solid aluminum conductors up to 4 mm²/12 AWG if WAGO “Alu-Plus” Contact Paste 249-130 is used for termination.

  “Alu-Plus” Contact Paste Advantages:

  • Automatically destroys the oxide film during clamping.
  • Prevents fresh oxidation at the clamping point.
  • Prevents electrolytic corrosion between aluminum and copper conductors (in the same terminal block).
  • Provides long-term protection against corrosion.


  Using terminal blocks with CAGE CLAMP^® Spring Pressure Connection Technology, aluminum conductors must first be cleaned with a blade and then immediately inserted into the clamping units filled with “Alu-Plus” contact paste.

  It is also possible to apply WAGO “Alu-Plus” additionally on the whole surface of the aluminum conductor before termination.

  Please note that the nominal currents must be adapted to the reduced conductivity of the aluminum conductors:
  2.5 mm² = 16 A
  4 mm² = 22 A
• Connection 1 - Connection technology: CAGE CLAMP^®
• Connection 1 - Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Connection 1 - Note (conductor cross-section): 12 AWG: THHN, THWN
• Connection 1 - Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Connection 1 - Strip length: 8 … 9 mm / 0.31 … 0.35 inches
• Connection 1 - Wiring direction: Front-entry wiring
• Number of levels: 4
• Total number of potentials: 5

Electrical data

• Power Loss - Power loss, per pole (potential): 0.048W
• Power Loss - Rated current I_N for specified power loss: 6A
• Power Loss - Resistance value for specified, current-dependent power loss: 0.001Ω
• Ratings per IEC/EN - Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3
• Ratings per IEC/EN - Nominal voltage (III/3): 250V
• Ratings per IEC/EN - Rated current: 6A
• Ratings per IEC/EN - Rated impulse withstand voltage (III / 3): 4kV
• Ratings per IEC/EN – Notes - Ratings (note): Electrical ratings are given by the fuse plug or empty component plug housing.

Environmental Product Compliance

• CAS-No.: 7439-92-1
• REACH Candidate List Substance: Lead
• RoHS Compliance Status: Compliant,No Exemption
• SCIP notification number (Austria): 09549142-afdc-42a6-867e-0620b4031d17
• SCIP notification number (Belgium): fd10fdfd-5d7a-4177-a9a2-67271164e71c
• SCIP notification number (Bulgaria): 31eca16d-58c8-4fe0-9455-3dae4b2ed043
• SCIP notification number (Czech Republic): c08a9fd1-3ce4-40b0-b1e6-5897b02b7980
• SCIP notification number (Denmark): f1107dce-a018-4e81-857a-05309cda53be
• SCIP notification number (Finland): 9232e883-e6f7-418b-a40c-193520fdf0cf
• SCIP notification number (France): 4c08e2f5-ceab-43f2-9d5b-7c490b2117ca
• SCIP notification number (Germany): e34e0dcc-33ad-43ec-9bb6-e18892590a69
• SCIP notification number (Hungary): 40f954e8-33eb-493a-bdf4-3620bce50eb1
• SCIP notification number (Italy): 276e746d-386b-4392-bc28-d185a0d401a1
• SCIP notification number (Netherlands): 1c0907e1-05d5-41ba-b80e-e73cb3c3a3d4
• SCIP notification number (Poland): 9a1385fb-1a57-4dd4-9697-f7dc0bf77325
• SCIP notification number (Romania): 411d57b8-cd42-4011-9131-759f5e09ca46
• SCIP notification number (Sweden): ff8238f7-b05b-4097-8ae2-14ce7164e7c9

Environmental requirements

• Continuous operating temperature: -60 … +105 °C
• Processing temperature: -35 … +85 °C

Material data

• Color: gray
• Fire load: 0.321MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Material group: I
• Note (material data):
  Information on material specifications can be found here

• Weight: 18.1g

Mechanical data

• Design: angled
• Marking level: Center marking
• Mounting type: DIN-35 rail

Physical data

• Depth from upper-edge of DIN-rail: 63.5 mm / 2.5 inches
• Height: 90.5 mm / 3.563 inches
• Width: 5 mm / 0.197 inches
