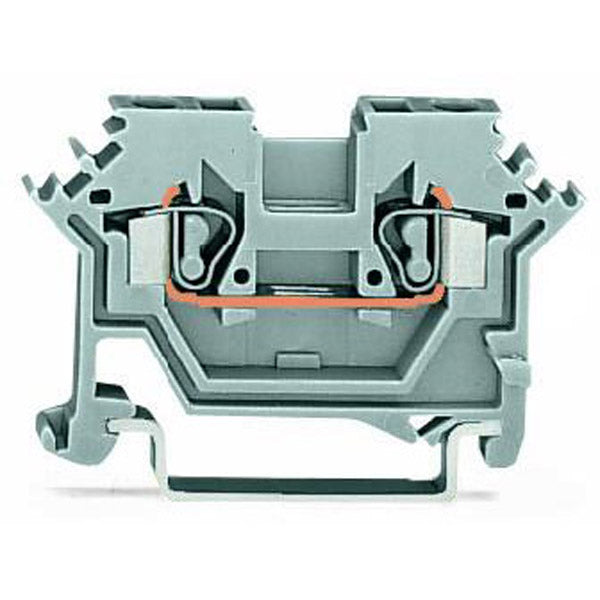

Wago - 280-691

Feed-through/thru terminal block with 1-deck/level + side/lateral marking slots - Suitable for Ex e II applications - WAGO (280 series) - Light Gray - 1 feed-through pole (1P) / 2-wires (1 clamp + 1 clamp) (1+1) - for 0.08mm2...2.5mm2 / for #28AWG...#12AWG - Rated current 23A - with CAGE CLAMP spring connections - DIN-35 rail (35 x 15 / 35 x 7.5) mounting (5mm width) - equivalent to 280691

Specifications

• Primary brand: WAGO
• Functions: Feed-through/thru terminal block
• Design: 1-deck/level|side/lateral marking slots|Suitable for Ex e II applications
• Poles: 1 feed-through pole (1P)
• Temperature: Processing temperature -35°C...+85°C|Continuous operating temperature -60°C...+105°C
• Rated current: (Ex e II) 23A|(UL) 20A|(CSA) 24A
• Color: Light Gray
• Connection capacity: 2-wires (1 clamp + 1 clamp) (1+1)
• Rated operating voltage (Ue): (UL) 600V|(CSA) 600V|(Ex e II) 550V
• Connection type: CAGE CLAMP spring connections
• Cross-section: for 0.08mm2...2.5mm2 fine stranded or solid conductors|for #28AWG...#12AWG fine stranded or solid conductors
• Mounting mode: DIN-35 rail (35 x 15 / 35 x 7.5)
• Dimensions: H50mm x W5mm x D28mm
• Net Width (mm): 5mm
• Material: Polyamide (PA) 66
• Customs Tariff Number: 85369010000
• eClass code: 27-14-11-20
• ETIM code: EC000897
• GTIN code: 4044918467834
• Order code / Manufacturer SKU: 280-691
• Manufacturer product status: Commercialized
• Equivalent to: 280691
• EAN code: 4044918467834
• Compliant with standard(s): General approvals|- CCA - DEKRA Certification B.V. - EN 60947 - certificate 2157201.01|- CSA - DEKRA Certification B.V. - C22.2 - certificate 1536071|- UL - Underwriters Laboratories Inc. - UL 1059 - certificate E45172|Declarations of conformity and manufacturer's declarations|- ATEX-Attestation of Conformity - WAGO GmbH & Co. KG|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for marine applications|- ABS - American Bureau of Shipping - EN 60947 - certificate 20-HG1941090-PDA|- BV - Bureau Veritas S.A. - EN 60947 - certificate 07436/F0 BV|- DNV GL - Det Norske Veritas Germanischer Lloyd - certificate TAE00001V2|Approvals for hazardous areas|- AEx - UL International Germany GmbH c/o Physikalisch Technische Bundesanstalt - UL 60079 - certificate E185892 (AEx e II resp. Ex e II)|- ATEX - Physikalisch Technische Bundesanstalt - IEC 60079-0 - certificate PTB 99 ATEX 3109 U (Ex eb IIC / IM 2 Ex eb IMb)|- IECEx - Physikalisch Technische Bundesanstalt - IEC 60079-0 - certificate IECEx PTB 03.0004U (Ex eb IIC Gb or Ex eb I Mb)|RoHS compliant|material group I|V-0 flammability rating
• Location of origin: Germany
• Level 1 category: Electrical components
• Level 2 category: Terminal blocks
• Product title: Feed-through/thru terminal block - 1-deck/level - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85369010000
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-14-11-20
• eCl@ss 9.0: 27-14-11-20
• ETIM 8.0: EC000897
• ETIM 9.0: EC000897
• GTIN: 4044918467834
• Packaging type: box
• Product Group: 1 (Rail Mounted Terminal Blocks)
• PU (SPU): 100 pcs

Connection data

• Clamping units: 2
• Connection 1 - Actuation type: Operating tool
• Connection 1 - Connectable conductor materials: Copper
• Connection 1 - Connection technology: CAGE CLAMP^®
• Connection 1 - Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Connection 1 - Note (conductor cross-section): 12 AWG: THHN, THWN
• Connection 1 - Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Connection 1 - Strip length: 8 … 9 mm / 0.31 … 0.35 inches
• Connection 1 - Wiring direction: Front-entry wiring
• Number of levels: 1
• Total number of potentials: 1

Electrical data

• Ex information - Note (rated voltage): Using staggered jumpers reduces the maximum rated voltage to 275 V.
• Ex information - Rated current (Ex e II): 23A
• Ex information - Rated voltage EN (Ex e II): 550V
• Ex information - Reference hazardous areas: See application instructions in section “Knowledge and
  Downloads – Documentation – Additional Information: Technical Section; Technical Explications”
• Power Loss - Power loss, per pole (potential): 0.704W
• Power Loss - Rated current I_N for specified power loss: 23A
• Power Loss - Resistance value for specified, current-dependent power loss: 0.001Ω
• Ratings per CSA - Approvals per: CSA 22.2 No 158
• Ratings per CSA - Rated current CSA (Use Group C): 24A
• Ratings per CSA - Rated voltage CSA (Use Group C): 600V
• Ratings per IEC/EN - Ratings per: IEC/EN 60947-7-1
• Ratings per UL - Approvals per: UL 1059
• Ratings per UL - Rated current UL (Use Group C): 20A
• Ratings per UL - Rated voltage UL (Use Group C): 600V

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Continuous operating temperature: -60 … +105 °C
• Processing temperature: -35 … +85 °C

Material data

• Color: light gray
• Fire load: 0.093MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Material group: I
• Note (material data):
  Information on material specifications can be found here

• Weight: 4.8g

Mechanical data

• Marking level: Side marking
• Mounting type: DIN-35 rail

Physical data

• Depth from upper-edge of DIN-rail: 28 mm / 1.102 inches
• Height: 50 mm / 1.969 inches
• Width: 5 mm / 0.197 inches
