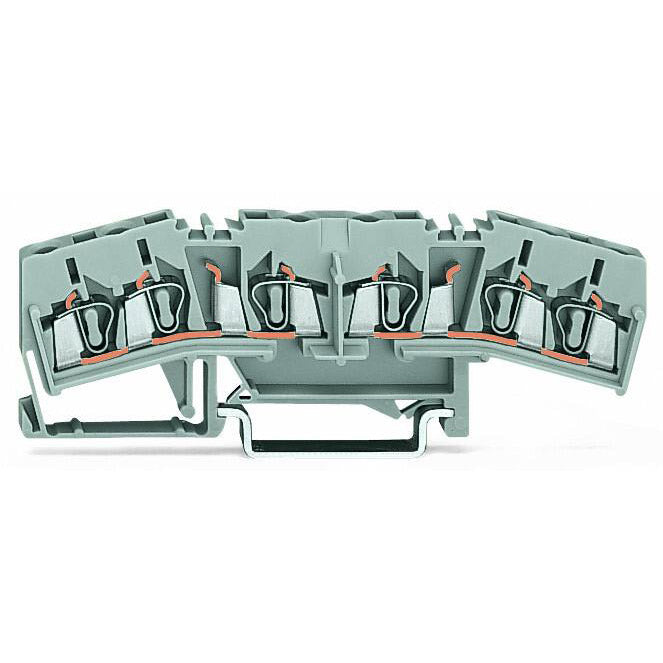

Wago - 280-675

Double potential feed-through/thru terminal block with 1-deck/level + center marking slot - WAGO (280 series) - Gray - 2 feed-through poles (2P) / 6-wires (3 clamps + 3 clamps) (3+3) - for 0.08mm2...2.5mm2 / for #28AWG...#12AWG - Rated current 18A - with CAGE CLAMP spring connections - DIN-35 rail (35 x 15 / 35 x 7.5) mounting (5mm width) - equivalent to 280675

Specifications

• Primary brand: WAGO
• Functions: Double potential feed-through/thru terminal block
• Design: 1-deck/level|center marking slot
• Poles: 2 feed-through poles (2P)
• Temperature: Processing temperature -35°C...+85°C|Continuous operating temperature -60°C...+105°C
• Rated current: (IEC) 18A
• Color: Gray
• Connection capacity: 6-wires (3 clamps + 3 clamps) (3+3)
• Rated operating voltage (Ue): (IEC) 800V
• Rated impulse voltage (Uimp): (IEC) 8kV
• Connection type: CAGE CLAMP spring connections
• Cross-section: for 0.08mm2...2.5mm2 fine stranded or solid conductors|for #28AWG...#12AWG fine stranded or solid conductors
• Mounting mode: DIN-35 rail (35 x 15 / 35 x 7.5)
• Dimensions: H93mm x W5mm x D28mm
• Net Width (mm): 5mm
• Material: Polyamide (PA) 66
• eClass code: 27-14-11-20
• ETIM code: EC000897
• GTIN code: 4044918465069
• Customs Tariff Number: 85369010000
• Order code / Manufacturer SKU: 280-675
• Manufacturer product status: Commercialized
• Equivalent to: 280675
• EAN code: 4044918465069
• Compliant with standard(s): General approvals|- UL - Underwriters Laboratories Inc. - UL 1059 - certificate E45172|RoHS compliant|material group I|V-0 flammability rating
• Location of origin: Germany
• Level 1 category: Electrical components
• Level 2 category: Terminal blocks
• Product title: Double potential feed-through/thru terminal block - 1-deck/level - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85369010000
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-14-11-20
• eCl@ss 9.0: 27-14-11-20
• ETIM 8.0: EC000897
• ETIM 9.0: EC000897
• GTIN: 4044918465069
• Packaging type: box
• Product Group: 1 (Rail Mounted Terminal Blocks)
• PU (SPU): 50 pcs

Connection data

• Clamping units: 6
• Connection 1 - Actuation type: Operating tool
• Connection 1 - Connectable conductor materials: Copper|Aluminum
• Connection 1 - Connectable conductor materials (note): Terminating Aluminum Conductors
  WAGO Spring-Clamp Terminal Blocks are suitable for solid aluminum conductors up to 4 mm²/12 AWG if WAGO “Alu-Plus” Contact Paste 249-130 is used for termination.

  “Alu-Plus” Contact Paste Advantages:

  • Automatically destroys the oxide film during clamping.
  • Prevents fresh oxidation at the clamping point.
  • Prevents electrolytic corrosion between aluminum and copper conductors (in the same terminal block).
  • Provides long-term protection against corrosion.


  Using terminal blocks with CAGE CLAMP^® Spring Pressure Connection Technology, aluminum conductors must first be cleaned with a blade and then immediately inserted into the clamping units filled with “Alu-Plus” contact paste.

  It is also possible to apply WAGO “Alu-Plus” additionally on the whole surface of the aluminum conductor before termination.

  Please note that the nominal currents must be adapted to the reduced conductivity of the aluminum conductors:
  2.5 mm² = 16 A
  4 mm² = 22 A
• Connection 1 - Connection technology: CAGE CLAMP^®
• Connection 1 - Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Connection 1 - Note (conductor cross-section): 12 AWG: THHN, THWN
• Connection 1 - Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Connection 1 - Strip length: 8 … 9 mm / 0.31 … 0.35 inches
• Connection 1 - Wiring direction: Front-entry wiring
• Number of levels: 1
• Total number of potentials: 2

Electrical data

• Power Loss - Power loss, per pole (potential): 0.431W
• Power Loss - Rated current I_N for specified power loss: 18A
• Power Loss - Resistance value for specified, current-dependent power loss: 0.001Ω
• Ratings per IEC/EN - Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3
• Ratings per IEC/EN - Nominal voltage (III/3): 800V
• Ratings per IEC/EN - Rated current: 18A
• Ratings per IEC/EN - Rated impulse withstand voltage (III / 3): 8kV

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Continuous operating temperature: -60 … +105 °C
• Processing temperature: -35 … +85 °C

Material data

• Color: gray
• Fire load: 0.237MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Material group: I
• Note (material data):
  Information on material specifications can be found here

• Weight: 12.4g

Mechanical data

• Design: horizontal type
• Marking level: Center marking
• Mounting type: DIN-35 rail

Notes

• Safety Information: Notice: This 3-conductor double-potential terminal block cannot be commoned via adjacent jumpers.
• Safety information 2: When used as disconnect terminal block or 500V/6kV/3 potential multiplier between the current bars

Physical data

• Depth from upper-edge of DIN-rail: 28 mm / 1.102 inches
• Height: 93 mm / 3.661 inches
• Width: 5 mm / 0.197 inches
