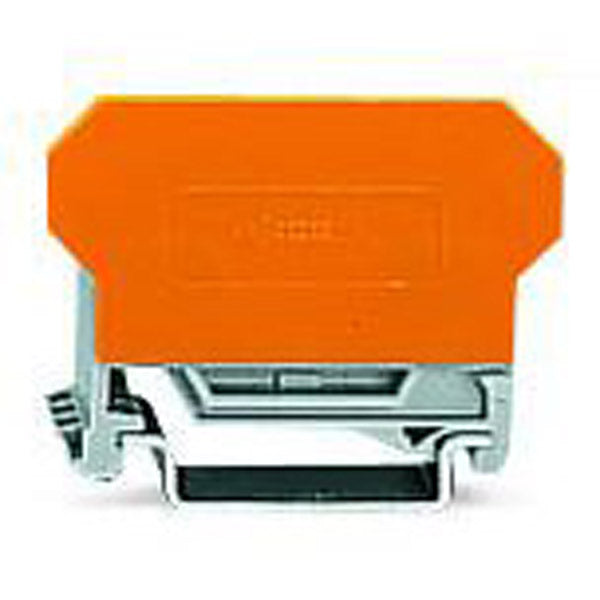

Wago - 280-638

Feed-through/thru terminal block with 1-deck/level + pluggable-disconnect + built-in orange separator (terminal is closed on both sides) - WAGO (280 series) - Gray - 8 feed-through poles (8P) / 2-wires (1 clamp + 1 clamp) (1+1) - for 0.08mm2...2.5mm2 / for #28AWG...#14AWG - Rated current 10A - with CAGE CLAMP spring connections - DIN-35 rail (35 x 15 / 35 x 7.5) mounting (22mm width) - equivalent to 280638

Specifications

• Primary brand: WAGO
• Functions: Feed-through/thru terminal block
• Design: 1-deck/level|pluggable-disconnect|built-in orange separator (terminal is closed on both sides)
• Poles: 8 feed-through poles (8P)
• Temperature: Processing temperature -35°C...+85°C
• Rated current: (IEC) 10A
• Color: Gray
• Connection capacity: 2-wires (1 clamp + 1 clamp) (1+1)
• Rated operating voltage (Ue): (IEC) 400V
• Connection type: CAGE CLAMP spring connections
• Cross-section: for 0.08mm2...2.5mm2 fine stranded or solid conductors|for #28AWG...#14AWG fine stranded or solid conductors
• Mounting mode: DIN-35 rail (35 x 15 / 35 x 7.5)
• Dimensions: H50mm x W22mm x D28mm
• Net Width (mm): 22mm
• Material: Polyamide (PA) 66
• GTIN code: 4044918538794
• Customs Tariff Number: 85369010000
• ETIM code: EC000897
• eClass code: 27-14-11-20
• Order code / Manufacturer SKU: 280-638
• Manufacturer product status: Commercialized
• Equivalent to: 280638
• EAN code: 4044918538794
• Compliant with standard(s): RoHS compliant|material group I|V-0 flammability rating
• Location of origin: Germany
• Degree of pollution: 3
• Level 1 category: Electrical components
• Level 2 category: Terminal blocks
• Product title: Feed-through/thru terminal block - 1-deck/level - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85369010000
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-14-11-20
• eCl@ss 9.0: 27-14-11-20
• ETIM 8.0: EC000897
• ETIM 9.0: EC000897
• GTIN: 4044918538794
• Packaging type: box
• Product Group: 1 (Rail Mounted Terminal Blocks)
• PU (SPU): 20 (1) pcs

Connection data

• Connection technology: CAGE CLAMP^®
• Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Number of connection types: 2
• Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Strip length: 8 … 9 mm / 0.31 … 0.35 inches
• Total number of potentials: 2
• Wiring direction: Front-entry wiring

Electrical data

• Rated continuous current: 10A

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Processing temperature: -35 … +85 °C

Material data

• Color: gray
• Fire load: 0.647MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Material group: I
• Weight: 20.9g

Mechanical data

• Mounting type: DIN-35 rail

Physical data

• Depth from upper-edge of DIN-rail: 28 mm / 1.102 inches
• Height: 50 mm / 1.969 inches
• Width: 22 mm / 0.866 inches

Safety and protection

• Pollution degree: 3
• Rated impulse withstand voltage: 6kV
• Rated voltage: 400V
