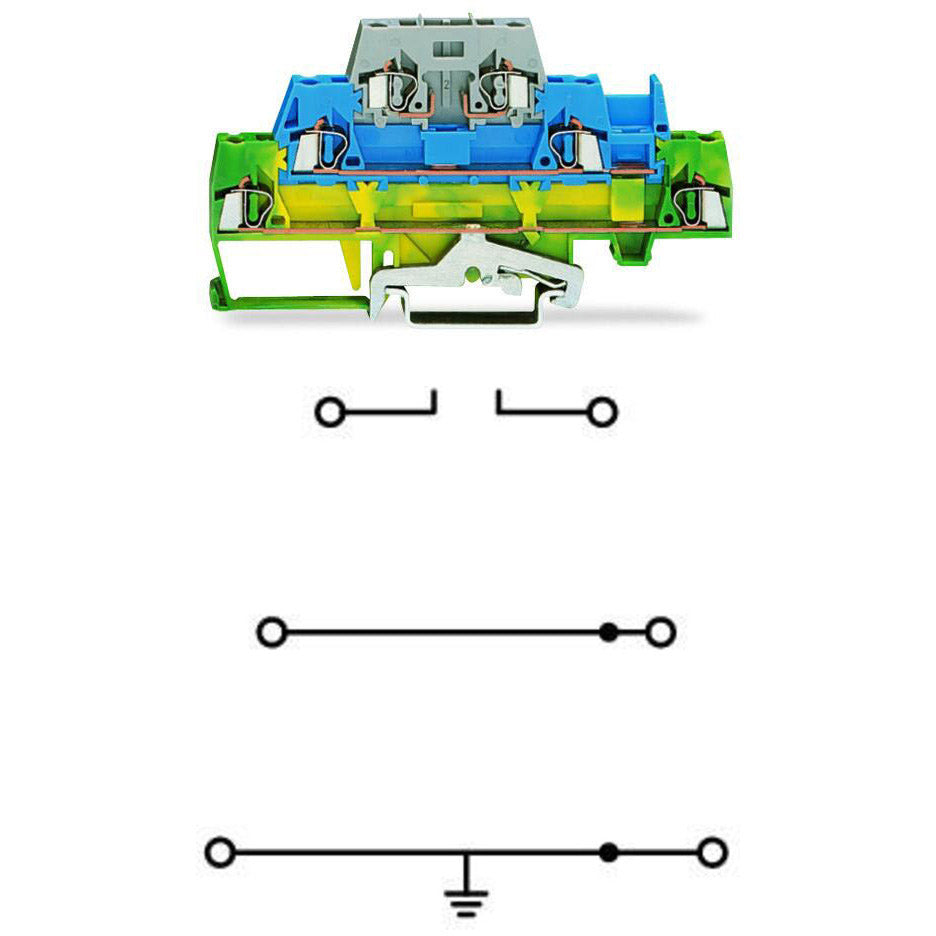

Feed-through/thru + neutral-through + ground/earthing terminal block with 3-decks/levels (triple-deck) + pluggable-disconnect - WAGO (280 series) - Green-Yellow / Blue / Gray - 1 feed-through pole + neutral-through + protective-earth (1P+N+PE) / 3 x 2-wires (3 clamps + 3 clamps) (3+3) - for 0.08mm2...2.5mm2 / for #28AWG...#12AWG - Rated current 20A - with CAGE CLAMP spring connections - DIN-35 rail (35 x 15 / 35 x 7.5) mounting (5mm width) - equivalent to 280510
Specifications
- Primary brand: WAGO
- Functions: Feed-through/thru + neutral-through + ground/earthing terminal block
- Design: 3-decks/levels (triple-deck)|pluggable-disconnect
- Poles: 1 feed-through pole + neutral-through + protective-earth (1P+N+PE)
- Temperature: Processing temperature -35°C...+85°C|Continuous operating temperature -60°C...+105°C
- Rated current: (IEC) 20A|(UL) 15A|(CSA) 20A
- Color: Green-Yellow / Blue / Gray
- Connection capacity: 3 x 2-wires (3 clamps + 3 clamps) (3+3)
- Rated operating voltage (Ue): (IEC) 400V|(UL) 300V|(CSA) 300V
- Rated impulse voltage (Uimp): (IEC) 6kV
- Connection type: CAGE CLAMP spring connections
- Cross-section: for 0.08mm2...2.5mm2 fine stranded or solid conductors|for #28AWG...#12AWG fine stranded or solid conductors
- Mounting mode: DIN-35 rail (35 x 15 / 35 x 7.5)
- Dimensions: H103mm x W5mm x D49.5mm
- Net Width (mm): 5mm
- Material: Polyamide (PA) 66
- GTIN code: 4050821293552
- Customs Tariff Number: 85369010000
- eClass code: 27-14-11-41
- ETIM code: EC000901
- Order code / Manufacturer SKU: 280-510
- Manufacturer product status: Commercialized
- Equivalent to: 280510
- EAN code: 4050821293552
- Compliant with standard(s): General approvals|- CCA - DEKRA Certification B.V. - EN 60947 - certificate 2157201.01|- CSA - DEKRA Certification B.V. - C22.2 - certificate 1536071|- UR - Underwriters Laboratories Inc. - UL 1059 - certificate E45172|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for marine applications|- ABS - American Bureau of Shipping - EN 60947 - certificate 20-HG1941090-PDA|- BV - Bureau Veritas S.A. - EN 60947 - certificate 07436/F0 BV|- DNV GL - Det Norske Veritas Germanischer Lloyd - certificate TAE00001V2|RoHS compliant|material group I|V-0 flammability rating
- Location of origin: China
- Level 1 category: Electrical components
- Level 2 category: Terminal blocks
- Product title: Feed-through/thru + neutral-through + ground/earthing terminal block - 3-decks/levels (triple-deck) - WAGO
Commercial data
- Country of origin: CN
- Customs tariff number: 85369010000
- ECCN: NO US CLASSIFICATION
- eCl@ss 10.0: 27-14-11-41
- eCl@ss 9.0: 27-14-11-41
- ETIM 8.0: EC000901
- ETIM 9.0: EC000901
- GTIN: 4050821293552
- Packaging type: box
- Product Group: 1 (Rail Mounted Terminal Blocks)
- PU (SPU): 50 pcs
Connection data
- Clamping units: 6
- Connection 1 - Actuation type: Operating tool
- Connection 1 - Connectable conductor materials: Copper|Aluminum
-
Connection 1 - Connectable conductor materials (note): Terminating Aluminum Conductors
WAGO Spring-Clamp Terminal Blocks are suitable for solid aluminum conductors up to 4 mm²/12 AWG if WAGO “Alu-Plus” Contact Paste 249-130 is used for termination.
“Alu-Plus” Contact Paste Advantages:- Automatically destroys the oxide film during clamping.
- Prevents fresh oxidation at the clamping point.
- Prevents electrolytic corrosion between aluminum and copper conductors (in the same terminal block).
- Provides long-term protection against corrosion.
Using terminal blocks with CAGE CLAMP® Spring Pressure Connection Technology, aluminum conductors must first be cleaned with a blade and then immediately inserted into the clamping units filled with “Alu-Plus” contact paste.
It is also possible to apply WAGO “Alu-Plus” additionally on the whole surface of the aluminum conductor before termination.
Please note that the nominal currents must be adapted to the reduced conductivity of the aluminum conductors:
2.5 mm² = 16 A
4 mm² = 22 A - Connection 1 - Connection technology: CAGE CLAMP®
- Connection 1 - Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
- Connection 1 - Note (conductor cross-section): 12 AWG: THHN, THWN
- Connection 1 - Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
- Connection 1 - Strip length: 8 … 9 mm / 0.31 … 0.35 inches
- Connection 1 - Wiring direction: Front-entry wiring
- Number of levels: 3
- Total number of potentials: 3
Electrical data
- Power Loss - Power loss, per pole (potential): 0.532W
- Power Loss - Rated current IN for specified power loss: 20A
- Power Loss - Resistance value for specified, current-dependent power loss: 0.001Ω
- Ratings per IEC/EN - Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3
- Ratings per IEC/EN - Nominal voltage (III/3): 400V
- Ratings per IEC/EN - Rated current: 20A
- Ratings per IEC/EN - Rated impulse withstand voltage (III / 3): 6kV
- Ratings per IEC/EN - Ratings per: IEC/EN 60947-7-1
Environmental Product Compliance
- CAS-No.: 7439-92-1
- REACH Candidate List Substance: Lead
- RoHS Compliance Status: Compliant,No Exemption
- SCIP notification number (Austria): 6ed98591-756f-4f94-9c0b-debd0a59ee07
- SCIP notification number (Belgium): 1474dd91-4d99-44bb-8ba4-46e16c36ae78
- SCIP notification number (Bulgaria): 97f75d78-4439-4a94-9cfd-74f978460604
- SCIP notification number (Czech Republic): d5fc19bf-567e-4dd0-b56e-2e20caf01d0e
- SCIP notification number (Denmark): 0442b196-1414-476a-9fe4-75c635605326
- SCIP notification number (Finland): 70b18fd2-4201-4ea0-a076-1adfc7fa8699
- SCIP notification number (France): 424c9ee6-29c7-4292-a120-026cede32c4c
- SCIP notification number (Germany): 4ff53ca3-4137-459b-adc3-9d5c087415f7
- SCIP notification number (Hungary): 820fafcf-3a67-486a-af31-0273c3b376ec
- SCIP notification number (Italy): 892280af-3b6d-4292-95aa-3112ddf9437a
- SCIP notification number (Netherlands): 2aae21cb-3cd3-4ccb-b992-d0427a7d8f29
- SCIP notification number (Poland): 3fd85a4f-eea2-4242-a886-7678a5f951a3
- SCIP notification number (Romania): 5b865202-f7a3-4fa3-8160-5367a02f566d
- SCIP notification number (Sweden): 1d6fb3dd-6512-41dc-ac30-879c9b226a47
Environmental requirements
- Continuous operating temperature: -60 … +105 °C
- Processing temperature: -35 … +85 °C
Material data
- Color: green-yellow/blue/gray
- Fire load: 0.313MJ
- Flammability class per UL94: V0
- Insulation material (main housing): Polyamide (PA66)
- Material group: I
-
Note (material data):
Information on material specifications can be found here
- Weight: 21.3g
Mechanical data
- Design: horizontal type
- Marking level: without marking level
- Mounting type: DIN-35 rail
Physical data
- Depth from upper-edge of DIN-rail: 49.5 mm / 1.949 inches
- Height: 103 mm / 4.055 inches
- Width: 5 mm / 0.197 inches
