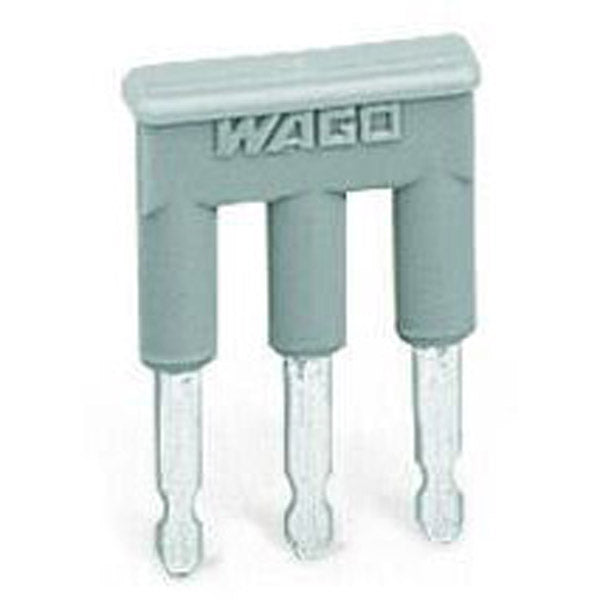

Wago - 280-483

Insulated push-in type comb-style jumper bar - 3-way - WAGO (280 series) - 3-poles (3P) - Rated current 24A - Gray color - Dimensions W15mm x D4mm - equivalent to 280483

Specifications

• Primary brand: WAGO
• Functions: Insulated push-in type comb-style jumper bar
• Design: 3-way
• Poles: 3-poles (3P)
• Rated current: 24A
• Color: Gray
• Dimensions: W15mm x D4mm
• Material: Polyamide (PA) 66
• eClass code: 27-14-11-40
• ETIM code: EC000489
• Customs Tariff Number: 85366990990
• GTIN code: 4044918787147
• Order code / Manufacturer SKU: 280-483
• Manufacturer product status: Commercialized
• Equivalent to: 280483
• EAN code: 4044918787147
• Compliant with standard(s): RoHS compliant
• Location of origin: Germany
• Level 1 category: Electrical components
• Product title: Insulated push-in type comb-style jumper bar - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85366990990
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-14-11-40
• eCl@ss 9.0: 27-14-11-40
• ETIM 8.0: EC000489
• ETIM 9.0: EC000489
• GTIN: 4044918787147
• Packaging type: box
• PU (SPU): 200 (25) pcs

Electrical data

• Ratings per IEC/EN - Rated current: 24A

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Material data

• Color: gray
• Fire load: 0.011MJ
• Insulation material (main housing): Polyamide (PA66)
• Note (material data):
  Information on material specifications can be found here

• Weight: 1.4g

Physical data

• Depth: 19.2 mm / 0.756 inches
• Height: 4 mm / 0.157 inches
• Jumper assignment: 1-2-3
• Width: 15 mm / 0.591 inches
