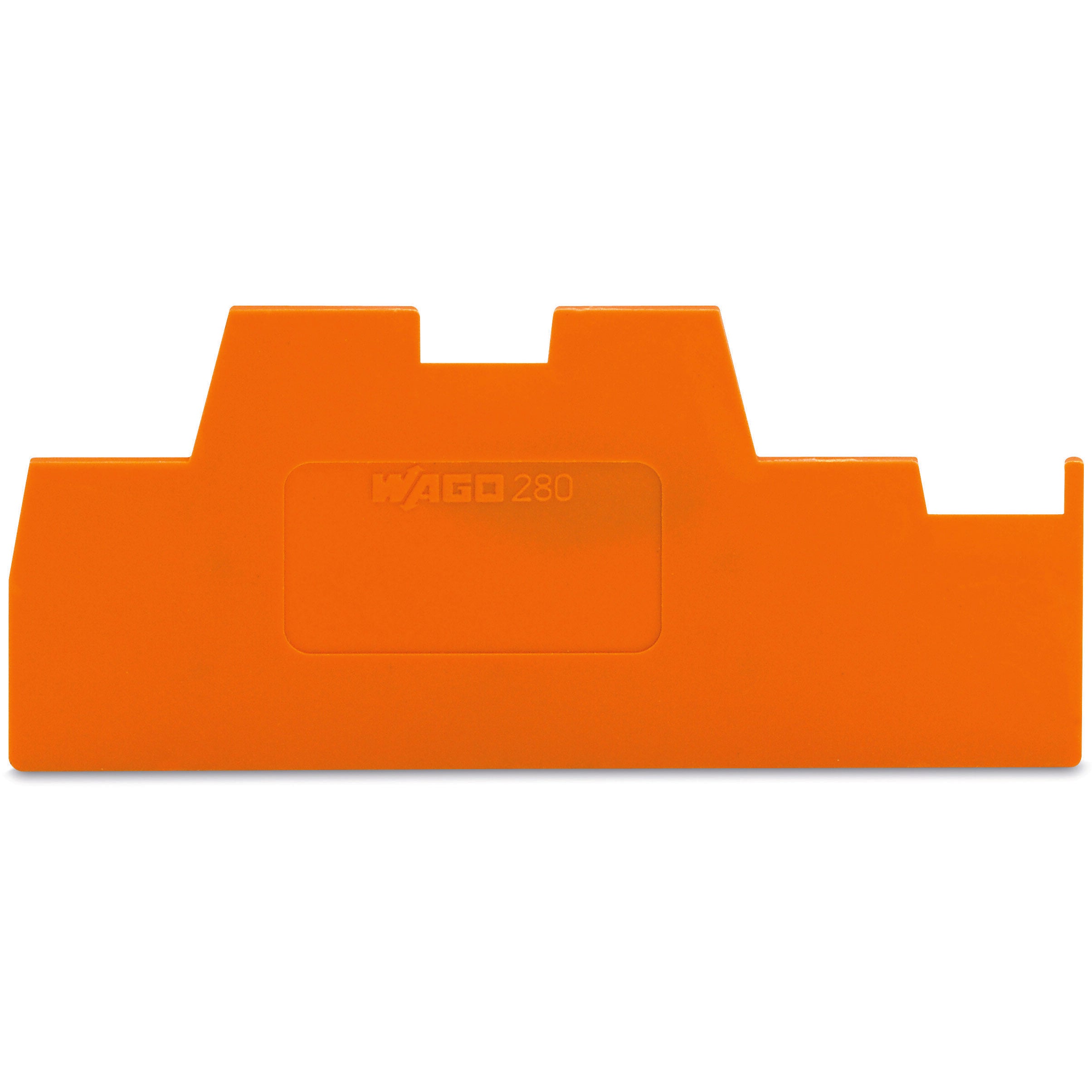

Wago - 280-369

Intermediate plate - WAGO (280 series) - Orange color - equivalent to 280369

Specifications

• Primary brand: WAGO
• Functions: Intermediate plate
• Temperature: Processing temperature -35°C...+85°C|Continuous operating temperature -60°C...+105°C
• Color: Orange
• Dimensions: H74mm x W1.1mm x D33.5mm
• Material: Polyamide (PA) 66
• GTIN code: 4017332226561
• eClass code: 27-14-11-33
• Customs Tariff Number: 85389099990
• ETIM code: EC000886
• Order code / Manufacturer SKU: 280-369
• Manufacturer product status: Commercialized
• Equivalent to: 280369
• EAN code: 4017332226561
• Compliant with standard(s): RoHS compliant|material group I|V-0 flammability rating
• Location of origin: Germany
• Level 1 category: Electrical components
• Product title: Intermediate plate - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85389099990
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-14-11-33
• eCl@ss 9.0: 27-14-11-33
• ETIM 8.0: EC000886
• ETIM 9.0: EC000886
• GTIN: 4017332226561
• Packaging type: box
• Product Group: 1 (Rail Mounted Terminal Blocks)
• PU (SPU): 100 (25) pcs

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Continuous operating temperature: -60 … +105 °C
• Processing temperature: -35 … +85 °C

Material data

• Color: orange
• Fire load: 0.074MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Material group: I
• Note (material data):
  Information on material specifications can be found here

• Weight: 2.6g

Physical data

• Depth: 33.5 mm / 1.319 inches
• Height: 74 mm / 2.913 inches
• Width: 1.1 mm / 0.043 inches
