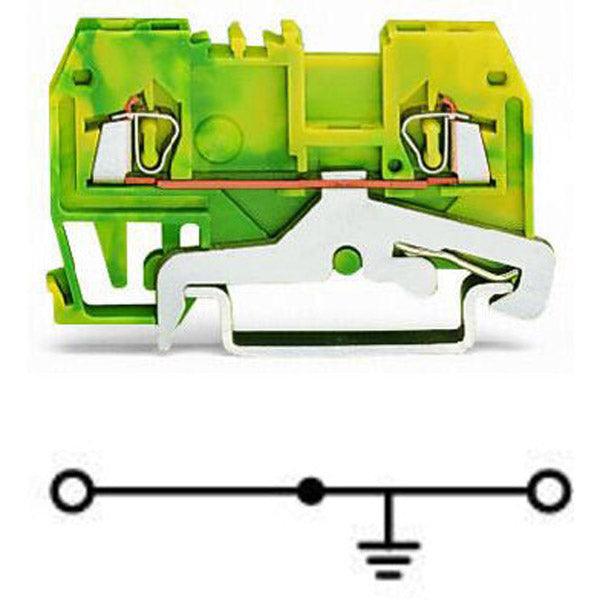

Wago - 279-907

Ground/earthing terminal block with 1-deck/level + center marking slot - WAGO (279 series) - Green-Yellow - 1 grounding / protective-earth (1PE) / 2-wires (1 clamp + 1 clamp) (1+1) - for 0.08mm2...1.5mm2 / for #28AWG...#16AWG - with CAGE CLAMP spring connections - DIN-35 rail (35 x 15 / 35 x 7.5) mounting (4mm width) - equivalent to 279907

Specifications

• Primary brand: WAGO
• Functions: Ground/earthing terminal block
• Design: 1-deck/level|center marking slot
• Poles: 1 grounding / protective-earth (1PE)
• Temperature: Processing temperature -35°C...+85°C|Continuous operating temperature -60°C...+105°C
• Color: Green-Yellow
• Connection capacity: 2-wires (1 clamp + 1 clamp) (1+1)
• Connection type: CAGE CLAMP spring connections
• Cross-section: for 0.08mm2...1.5mm2 fine stranded or solid conductors|for #28AWG...#16AWG fine stranded or solid conductors
• Mounting mode: DIN-35 rail (35 x 15 / 35 x 7.5)
• Dimensions: H54mm x W4mm x D27mm
• Net Width (mm): 4mm
• Material: Polyamide (PA) 66
• ETIM code: EC000901
• Customs Tariff Number: 85369010000
• GTIN code: 4045454084479
• eClass code: 27-14-11-41
• Order code / Manufacturer SKU: 279-907
• Manufacturer product status: Commercialized
• Equivalent to: 279907
• EAN code: 4045454084479
• Compliant with standard(s): General approvals|- CCA - DEKRA Certification B.V. - EN 60947 - certificate NTR NL-7081|- KEMA/KEUR - DEKRA Certification B.V. - EN 60947 - certificate 2160584.04|- UL - Underwriters Laboratories Inc. - UL 1059 - certificate E45172|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for marine applications|- BV - Bureau Veritas S.A. - EN 60947 - certificate 07436/F0 BV|- DNV GL - Det Norske Veritas Germanischer Lloyd - certificate TAE00001V2|- LR - Lloyds Register - EN 60947 - certificate 91/20112 (E9)|RoHS compliant|material group I|V-0 flammability rating
• Location of origin: Germany
• Level 1 category: Electrical components
• Level 2 category: Terminal blocks
• Product title: Ground/earthing terminal block - 1-deck/level - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85369010000
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-14-11-41
• eCl@ss 9.0: 27-14-11-41
• ETIM 8.0: EC000901
• ETIM 9.0: EC000901
• GTIN: 4045454084479
• Packaging type: box
• PU (SPU): 100 pcs

Connection data

• Clamping units: 2
• Connection 1 - Actuation type: Operating tool
• Connection 1 - Connectable conductor materials: Copper
• Connection 1 - Connection technology: CAGE CLAMP^®
• Connection 1 - Fine-stranded conductor: 0.08 … 1.5 mm² / 28 … 16 AWG
• Connection 1 - Solid conductor: 0.08 … 1.5 mm² / 28 … 16 AWG
• Connection 1 - Strip length: 8 … 9 mm / 0.31 … 0.35 inches
• Connection 1 - Wiring direction: Front-entry wiring
• Number of levels: 1
• Total number of potentials: 1

Electrical data

• Ratings per IEC/EN - Ratings per: IEC/EN 60947-7-2

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Continuous operating temperature: -60 … +105 °C
• Processing temperature: -35 … +85 °C

Material data

• Color: green-yellow
• Fire load: 0.074MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Material group: I
• Note (material data):
  Information on material specifications can be found here

• Weight: 7.9g

Mechanical data

• Design: horizontal type
• Marking level: Center marking
• Mounting type: DIN-35 rail

Physical data

• Depth from upper-edge of DIN-rail: 27 mm / 1.063 inches
• Height: 54 mm / 2.126 inches
• Width: 4 mm / 0.157 inches
