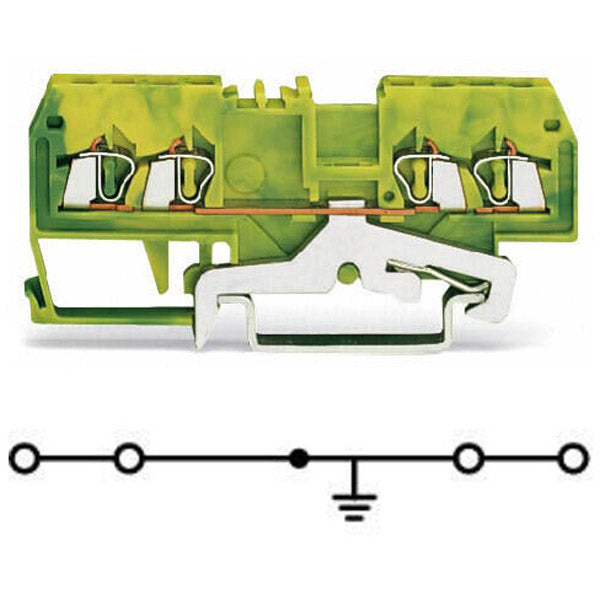

Wago - 279-837

Ground/earthing terminal block with 1-deck/level + center marking slot - WAGO (279 series) - Green-Yellow - 1 grounding / protective-earth (1PE) / 4-wires (2 clamps + 2 clamps) (2+2) - for 0.08mm2...1.5mm2 / for #28AWG...#16AWG - with CAGE CLAMP spring connections - DIN-35 rail (35 x 15 / 35 x 7.5) mounting (4mm width) - equivalent to 279837

Specifications

• Primary brand: WAGO
• Functions: Ground/earthing terminal block
• Design: 1-deck/level|center marking slot
• Poles: 1 grounding / protective-earth (1PE)
• Temperature: Processing temperature -35°C...+85°C|Continuous operating temperature -60°C...+105°C
• Color: Green-Yellow
• Connection capacity: 4-wires (2 clamps + 2 clamps) (2+2)
• Connection type: CAGE CLAMP spring connections
• Cross-section: for 0.08mm2...1.5mm2 fine stranded or solid conductors|for #28AWG...#16AWG fine stranded or solid conductors
• Mounting mode: DIN-35 rail (35 x 15 / 35 x 7.5)
• Dimensions: H73mm x W4mm x D27mm
• Net Width (mm): 4mm
• Material: Polyamide (PA) 66
• eClass code: 27-14-11-41
• Customs Tariff Number: 85369010000
• GTIN code: 4045454084455
• ETIM code: EC000901
• Order code / Manufacturer SKU: 279-837
• Manufacturer product status: Commercialized
• Equivalent to: 279837
• EAN code: 4045454084455
• Compliant with standard(s): General approvals|- CCA - DEKRA Certification B.V. - EN 60947 - certificate NTR NL-7081|- CSA - DEKRA Certification B.V. - C22.2 No. 158 - certificate 70133738|- KEMA/KEUR - DEKRA Certification B.V. - EN 60947 - certificate 2160584.04|- UL - Underwriters Laboratories Inc. - UL 1059 - certificate E45172|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for marine applications|- ABS - American Bureau of Shipping - certificate 20-HG1941090-PDA|- BV - Bureau Veritas S.A. - EN 60947 - certificate 07436/F0 BV|- DNV GL - Det Norske Veritas Germanischer Lloyd - certificate TAE00001V2|- LR - Lloyds Register - EN 60947 - certificate 91/20112 (E9)|RoHS compliant|material group I|V-0 flammability rating
• Location of origin: Germany
• Level 1 category: Electrical components
• Level 2 category: Terminal blocks
• Product title: Ground/earthing terminal block - 1-deck/level - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85369010000
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-14-11-41
• eCl@ss 9.0: 27-14-11-41
• ETIM 8.0: EC000901
• ETIM 9.0: EC000901
• GTIN: 4045454084455
• Packaging type: box
• Product Group: 1 (Rail Mounted Terminal Blocks)
• PU (SPU): 100 pcs

Connection data

• Clamping units: 4
• Connection 1 - Actuation type: Operating tool
• Connection 1 - Connectable conductor materials: Copper
• Connection 1 - Connection technology: CAGE CLAMP^®
• Connection 1 - Fine-stranded conductor: 0.08 … 1.5 mm² / 28 … 16 AWG
• Connection 1 - Solid conductor: 0.08 … 1.5 mm² / 28 … 16 AWG
• Connection 1 - Strip length: 8 … 9 mm / 0.31 … 0.35 inches
• Connection 1 - Wiring direction: Front-entry wiring
• Number of levels: 1
• Total number of potentials: 1

Electrical data

• Ratings per IEC/EN - Ratings per: IEC/EN 60947-7-2

Environmental Product Compliance

• CAS-No.: 7439-92-1
• REACH Candidate List Substance: Lead
• RoHS Compliance Status: Compliant,No Exemption
• SCIP notification number (Austria): dc6237ce-62af-46e8-b0d8-af258fd7a79c
• SCIP notification number (Belgium): 9ea35831-0761-49c1-a077-a2fe79cb00c5
• SCIP notification number (Bulgaria): 23cbd304-d4ed-46d2-be95-377184d9d68e
• SCIP notification number (Czech Republic): 53f87003-d0e5-4984-8b04-164f3635feae
• SCIP notification number (Denmark): 987c8773-2e7f-4b38-ada7-6517ee4fec6a
• SCIP notification number (Finland): cc006f0f-b629-415e-b611-c8feba471066
• SCIP notification number (France): 57e0b3b2-e5fb-492d-8b14-1c8bda4444b0
• SCIP notification number (Germany): 6a0978bd-24ae-4a44-9087-1f5bcc5de09f
• SCIP notification number (Hungary): 4882fd3b-d1f4-44f8-bdd9-263dc17d330e
• SCIP notification number (Italy): cddd4cf7-8174-4694-bb2e-de3e04e78391
• SCIP notification number (Netherlands): 48fe4c8e-1579-4629-a597-91e3e3a5ddaa
• SCIP notification number (Poland): a80a293e-9ff9-492b-b9a9-a19367f4a73b
• SCIP notification number (Romania): faac2e13-2f59-4482-9fce-2a8f9c4de252
• SCIP notification number (Sweden): daabcbae-7159-4ad4-8723-ae645596854c

Environmental requirements

• Continuous operating temperature: -60 … +105 °C
• Processing temperature: -35 … +85 °C

Material data

• Color: green-yellow
• Fire load: 0.104MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Material group: I
• Note (material data):
  Information on material specifications can be found here

• Weight: 9.9g

Mechanical data

• Design: horizontal type
• Marking level: Center marking
• Mounting type: DIN-35 rail

Physical data

• Depth from upper-edge of DIN-rail: 27 mm / 1.063 inches
• Height: 73 mm / 2.874 inches
• Width: 4 mm / 0.157 inches
