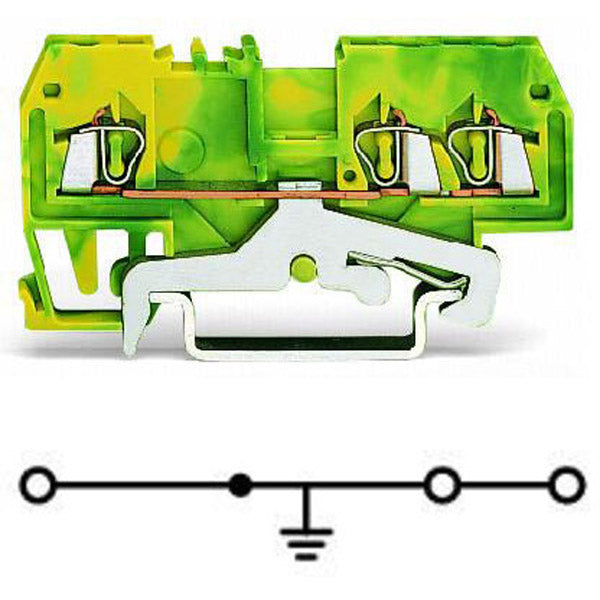

Wago - 279-687

Ground/earthing terminal block with 1-deck/level + center marking slot - WAGO (279 series) - Green-Yellow - 1 grounding / protective-earth (1PE) / 3-wires (1 clamp + 2 clamps) (1+2) - for 0.08mm2...1.5mm2 / for #28AWG...#16AWG - with CAGE CLAMP spring connections - DIN-35 rail (35 x 15 / 35 x 7.5) mounting (4mm width) - equivalent to 279687

Specifications

• Primary brand: WAGO
• Functions: Ground/earthing terminal block
• Design: 1-deck/level|center marking slot
• Poles: 1 grounding / protective-earth (1PE)
• Temperature: Processing temperature -35°C...+85°C|Continuous operating temperature -60°C...+105°C
• Color: Green-Yellow
• Connection capacity: 3-wires (1 clamp + 2 clamps) (1+2)
• Connection type: CAGE CLAMP spring connections
• Cross-section: for 0.08mm2...1.5mm2 fine stranded or solid conductors|for #28AWG...#16AWG fine stranded or solid conductors
• Mounting mode: DIN-35 rail (35 x 15 / 35 x 7.5)
• Dimensions: H62.5mm x W4mm x D27mm
• Net Width (mm): 4mm
• Material: Polyamide (PA) 66
• Customs Tariff Number: 85369010000
• eClass code: 27-14-11-41
• GTIN code: 4045454084448
• ETIM code: EC000901
• Order code / Manufacturer SKU: 279-687
• Manufacturer product status: Commercialized
• Equivalent to: 279687
• EAN code: 4045454084448
• Compliant with standard(s): General approvals|- CCA - DEKRA Certification B.V. - EN 60947 - certificate NTR NL-7081|- CQC - CHINA QUALITY CERT. CENTRE - GB/T 13140.3 - certificate CQC04003010761|- CSA - DEKRA Certification B.V. - C22.2 No. 158 - certificate 70133738|- KEMA/KEUR - DEKRA Certification B.V. - EN 60947 - certificate 2160584.04|- UL - Underwriters Laboratories Inc. - UL 1059 - certificate E45172|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for marine applications|- ABS - American Bureau of Shipping - certificate 20-HG1941090-PDA|- BV - Bureau Veritas S.A. - EN 60947 - certificate 07436/F0 BV|- DNV GL - Det Norske Veritas Germanischer Lloyd - certificate TAE00001V2|- LR - Lloyds Register - EN 60947 - certificate 91/20112 (E9)|RoHS compliant|material group I|V-0 flammability rating
• Location of origin: Germany
• Level 1 category: Electrical components
• Level 2 category: Terminal blocks
• Product title: Ground/earthing terminal block - 1-deck/level - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85369010000
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-14-11-41
• eCl@ss 9.0: 27-14-11-41
• ETIM 8.0: EC000901
• ETIM 9.0: EC000901
• GTIN: 4045454084448
• Packaging type: box
• PU (SPU): 100 pcs

Connection data

• Clamping units: 3
• Connection 1 - Actuation type: Operating tool
• Connection 1 - Connectable conductor materials: Copper
• Connection 1 - Connection technology: CAGE CLAMP^®
• Connection 1 - Fine-stranded conductor: 0.08 … 1.5 mm² / 28 … 16 AWG
• Connection 1 - Solid conductor: 0.08 … 1.5 mm² / 28 … 16 AWG
• Connection 1 - Strip length: 8 … 9 mm / 0.31 … 0.35 inches
• Connection 1 - Wiring direction: Front-entry wiring
• Number of levels: 1
• Total number of potentials: 1

Electrical data

• Ratings per IEC/EN - Ratings per: IEC/EN 60947-7-2

Environmental Product Compliance

• CAS-No.: 7439-92-1
• REACH Candidate List Substance: Lead
• RoHS Compliance Status: Compliant,No Exemption
• SCIP notification number (Austria): 8d137da3-1f23-470c-b289-c95c8bb99796
• SCIP notification number (Belgium): b58da6c9-7fdc-4f6f-a2d3-2aca8efea4e4
• SCIP notification number (Bulgaria): 1a5032e8-160f-4c4d-a2f1-55eb973e10fc
• SCIP notification number (Czech Republic): f1e66be0-6592-4371-bbbf-3bba9dd749b6
• SCIP notification number (Denmark): 46f29a65-d811-4fd7-aa38-90de78bf73af
• SCIP notification number (Finland): c1555754-40a3-42b1-b608-b6227b85d6a8
• SCIP notification number (France): ac43189a-9c60-4c7e-993c-2da1c16fd7c4
• SCIP notification number (Germany): d34b5776-056d-483f-8e42-c14c65eaa07d
• SCIP notification number (Hungary): e36e2841-a734-407a-9dde-0ed819abfb0b
• SCIP notification number (Italy): 329f5031-14bf-4769-aaf2-6f605300666f
• SCIP notification number (Netherlands): 357b657e-0acf-496b-aafc-f5fb0d01c157
• SCIP notification number (Poland): 4b5afe33-f306-489a-9881-dafa7e676c02
• SCIP notification number (Romania): 3e2e3ebd-6f4a-409d-aa0a-5e85702686c0
• SCIP notification number (Sweden): 5a9974b9-8e46-44aa-958a-8998fa57c943

Environmental requirements

• Continuous operating temperature: -60 … +105 °C
• Processing temperature: -35 … +85 °C

Material data

• Color: green-yellow
• Fire load: 0.088MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Material group: I
• Note (material data):
  Information on material specifications can be found here

• Weight: 8.9g

Mechanical data

• Design: horizontal type
• Marking level: Center marking
• Mounting type: DIN-35 rail

Physical data

• Depth from upper-edge of DIN-rail: 27 mm / 1.063 inches
• Height: 62.5 mm / 2.461 inches
• Width: 4 mm / 0.157 inches
