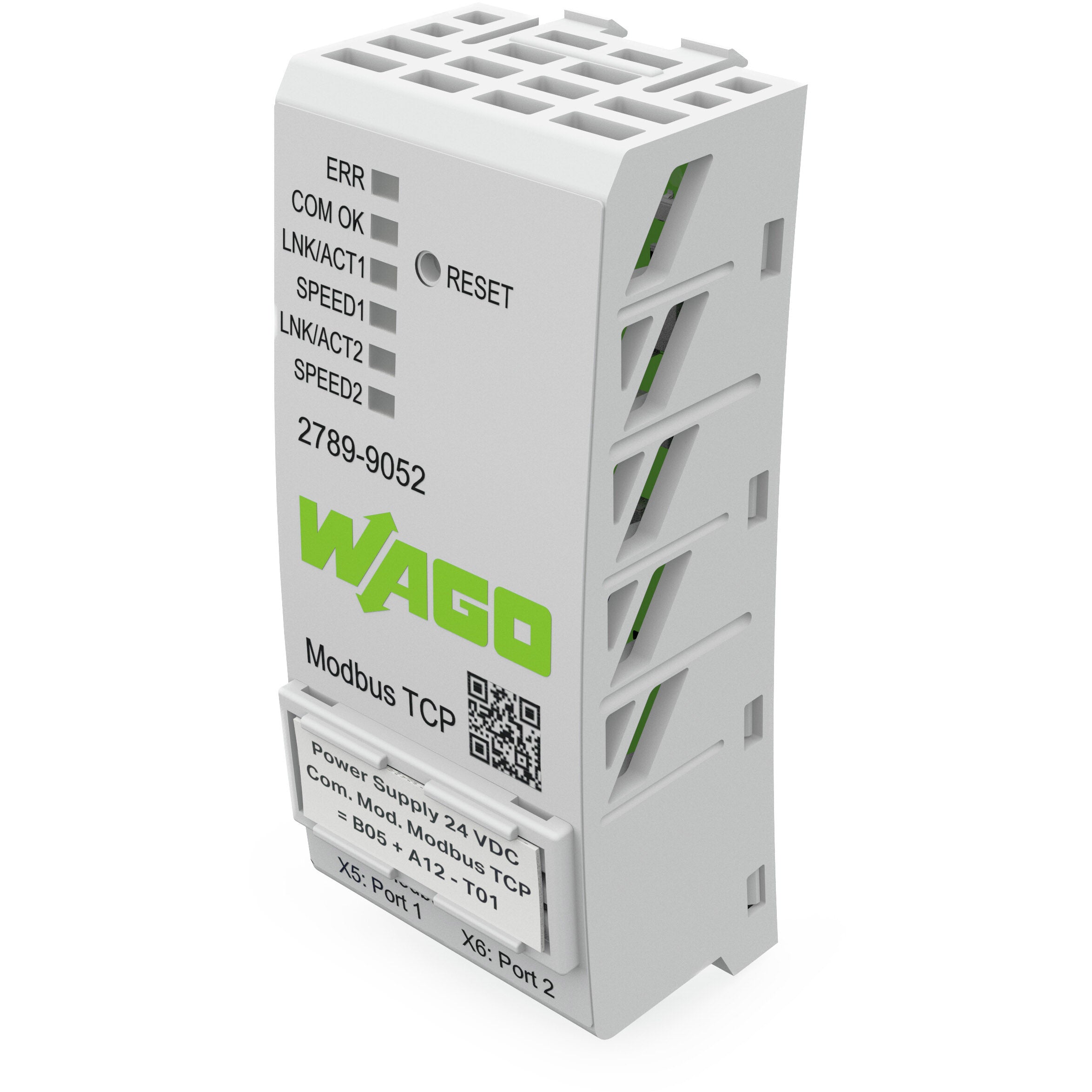

Wago - 2789-9052

Communication module for P.S.U. - WAGO (2789 series) - with Modbus TCP communication capability - supply voltage 5Vdc (SELV) - with 2 x RJ45 connectors - IP20 - rated for -40°C...+55°C ambient - equivalent to 27899052

Specifications

• Primary brand: WAGO
• Functions: Communication module for P.S.U.
• Supply voltage (DC): 5Vdc (SELV)
• Connection type: 2 x RJ45 connectors
• Mounting mode: Snaps onto a Pro 2 Power Supply's communication interface (X4)
• Dimensions: H80mm x W35mm x D22mm
• Ambient air temperature for operation: -40°C...+55°C
• Ambient air temperature for storage: -40°C...+85°C
• Humidity: 5-95% relative humidity (RH; non-condensing)
• Technical compatibility with: Pro 2 series PSUs
• Customs Tariff Number: 85176200000
• ETIM code: EC002498
• Order code / Manufacturer SKU: 2789-9052
• Manufacturer product status: Commercialized
• Equivalent to: 27899052
• EAN code: 4055144095654
• Compliant with standard(s): Safety and protection|- Overvoltage category -- III|CE|EN 61010-1|EN 61010-2-201|EN 61204-3|UL 61010-1|UL 61010-2-201|General approvals|- EAC - GZO Almaty Standart - TP TC 020/2011 - certificate EAC CoC 03081|- UL - Underwriters Laboratories Inc. - UL 61010-2-201 - certificate UL-US-L175199-14-42709102-1_UL-CA-L175199-44-42709102-2|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for hazardous areas|- UL - Underwriters Laboratories Inc. (HAZARDOUS LOCATIONS) - UL 121201 - certificate E198726|RoHS compliant with exemption (6(c) / 7(a) / 7(c)-I / 7(c)-II)
• Location of origin: Germany
• Degree of pollution: 2
• Benefits: This communication module snaps onto the communication interface of Pro 2 Power Supplies|Modbus TCP/UDP|Suitable for monitoring the subordinate power supply|Function blocks for standard control systems available upon request.|Integrated ETHERNET switch for convenient wiring|Marker slot for WAGO marking cards (WMB) and WAGO marking strips
• Level 1 category: Automation components
• Product title: Communication module for P.S.U. - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85176200000
• ECCN: NO US CLASSIFICATION
• ETIM 8.0: EC002498
• ETIM 9.0: EC002498
• Packaging type: Box
• PU (SPU): 1 pcs

Connection data

• Cable length (max.): 100 m
• Connection type 1: Modbus TCP/UDP
• Pluggable connector: 2 x RJ-45
• Transmission medium: ETHERNET: Twisted pair S-UTP; 100 Ω; Cat. 5

Environmental Product Compliance

• CAS-No.: 1303-86-2|1317-36-8|7439-92-1
• REACH Candidate List Substance: Diboron trioxide|Lead|Lead monoxide
• RoHS Compliance Status: Compliant,With Exemption
• RoHS Exemption: 6(c)|7(a)|7(c)-I|7(c)-II
• SCIP notification number (Austria): acbc0842-2ce0-4cb5-8937-58ec4dcf0201
• SCIP notification number (Belgium): 323751ce-369b-4540-9255-6391886239f1
• SCIP notification number (Bulgaria): 55cae6ed-f4d9-473c-81f5-d84e5f9d8cbe
• SCIP notification number (Czech Republic): ac32af1c-e59c-44f7-95b1-3069a891362b
• SCIP notification number (Denmark): 05d8d292-9bdc-4f63-8ed6-340a570c96f5
• SCIP notification number (Finland): c23f4e18-e1f6-4b32-b790-f1329545fbd2
• SCIP notification number (France): 8786d695-c1bb-48c0-8db9-ae73a81863dc
• SCIP notification number (Germany): 951e6b14-80f4-413e-be75-86b589d7ef70
• SCIP notification number (Hungary): 6ac748de-366b-4fde-ae16-b4ec1a9dae6f
• SCIP notification number (Italy): 69f1b12f-a721-4305-96a8-be7453ae705d
• SCIP notification number (Netherlands): 9156a981-d436-406b-94e7-77018ef57636
• SCIP notification number (Poland): 0b277272-cc14-414d-87c1-07780443d0f0
• SCIP notification number (Romania): d016d543-b96c-4cf9-83f3-0342cff692fb
• SCIP notification number (Sweden): 6f81c7fa-cbd1-4438-abc6-d0a2a8c69ba8

Environmental requirements

• Ambient temperature (operation): -40 … +55 °C
• Ambient temperature (storage): -40 … +85 °C
• Operating altitude (max.): 5000m
• Relative humidity: 5 … 95 % (no condensation permissible)

Material data

• Weight: 45g

Mechanical data

• Mounting type: Snaps onto a Pro 2 Power Supply's communication interface (X4)

Physical data

• Depth: 22 mm / 0.866 inches
• Height: 80 mm / 3.15 inches
• Note (dimensions): Depth in mounted state
• Width: 35 mm / 1.378 inches

Safety and protection

• Insulation type: Functional insulation
• Overvoltage category: III
• Pollution degree: 2
• Protection class: III
• Protection type: IP20; per EN 60529
• Test voltage (fieldbus): 0.775 kVAC; 50 Hz; 1 min

Standards and specifications

• Conformity marking: CE
• Standards/specifications: EN 61010-1|EN 61010-2-201|EN 61204-3|UL 61010-1|UL 61010-2-201

Technical data

• Input - Nominal input current at U_N: 210 mA (typ.)
• Input - Nominal input voltage U_{i nom}: 5 VDC (SELV)
• Signaling and communication - Communications: Modbus (TCP, UDP)
• Signaling and communication - Configuration options: Web-Based Management
• Signaling and communication - ETHERNET protocols: HTTP(S)|BootP|DHCP|SNTP
• Signaling and communication - Signaling: 1 x ERR LED (red)|1 x COM OK LED (green)|1 x LED LNK/ACTx (green)|1 x LED SPEEDx (orange)
• Signaling and communication - Transmission medium (communication/fieldbus): ETHERNET: Twisted pair S-UTP; 100 Ω; Cat. 5
• Signaling and communication - Transmission rate: 100 MBd ( (ETHERNET: 10/100 Mbit/s))
• Signaling and communication - Visualization: Web-Visu
