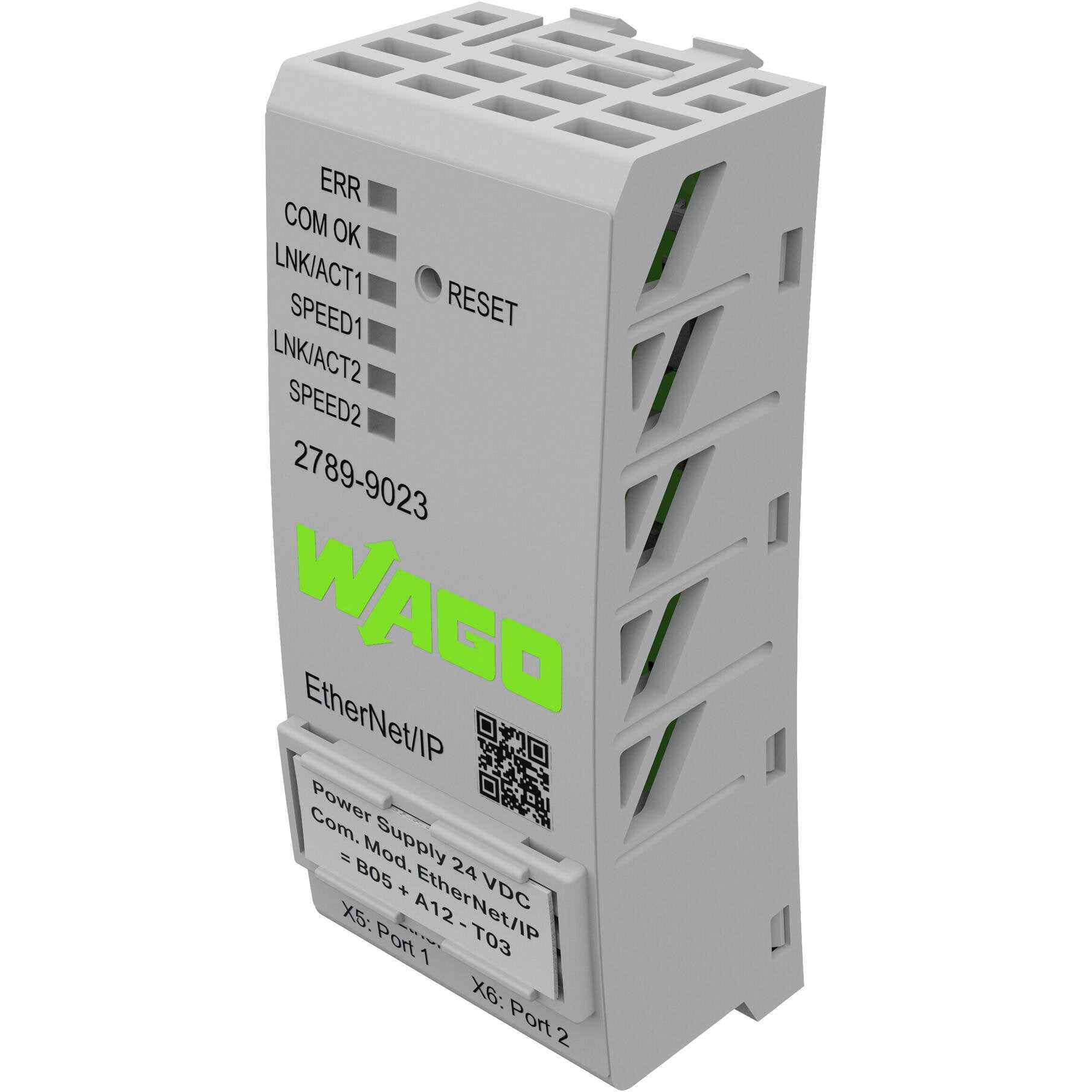

Wago - 2789-9023

Communication module for P.S.U. - WAGO (2789 series) - with Ethernet/IP communication capability - supply voltage 5Vdc (SELV) - with 2 x RJ45 connectors - IP20 - rated for -40°C...+55°C ambient - equivalent to 27899023

Specifications

• Primary brand: WAGO
• Functions: Communication module for P.S.U.|MQTT
• Supply voltage (DC): 5Vdc (SELV)
• Connection type: 2 x RJ45 connectors
• Mounting mode: Snaps onto a Pro 2 Power Supply's communication interface (X4)
• Dimensions: H80mm x W35mm x D22mm
• Ambient air temperature for operation: -40°C...+55°C
• Ambient air temperature for storage: -40°C...+85°C
• Humidity: 5-95% relative humidity (RH; non-condensing)
• Technical compatibility with: Pro 2 series PSUs
• Customs Tariff Number: 85176200000
• ETIM code: EC002498
• Order code / Manufacturer SKU: 2789-9023
• Manufacturer product status: Commercialized
• Equivalent to: 27899023
• EAN code: 4066966333367
• Compliant with standard(s): Safety and protection|- Overvoltage category -- III|CE|EN 61010-1|EN 61010-2-201|EN 61204-3|UL 61010-1|UL 61010-2-201|General approvals|- EAC - GZO Almaty Standart - TP TC 020/2011 - certificate EAC CoC 03081|- UL - Underwriters Laboratories Inc. - UL 61010-2-201 - certificate UL-US-L175199-14-42709102-1_UL-CA-L175199-44-42709102-2|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for hazardous areas|- UL - Underwriters Laboratories Inc. (HAZARDOUS LOCATIONS) - UL 121201 - certificate E198726|RoHS compliant with exemption (6(c) / 7(a) / 7(c)-I / 7(c)-II)
• Location of origin: China
• Degree of pollution: 2
• Benefits: This communication module snaps onto the communication interface of Pro 2 Power Supplies|EtherNet/IP + MQTT|Suitable for monitoring the subordinate power supply|Function blocks for standard control systems available upon request.|Integrated ETHERNET switch for convenient wiring|Marker slot for WAGO marking cards (WMB) and WAGO marking strips
• Level 1 category: Automation components
• Product title: Communication module for P.S.U. - WAGO

Commercial data

• Country of origin: CN
• Customs tariff number: 85176200000
• ECCN: NO US CLASSIFICATION
• ETIM 8.0: EC002498
• ETIM 9.0: EC002498
• Packaging type: Box
• PU (SPU): 1 pcs

Connection data

• Cable length (max.): 100 m
• Connection type 1: EtherNet/IP^TM
• Pluggable connector: 2 x RJ-45
• Transmission medium: ETHERNET: Twisted pair S-UTP; 100 Ω; Cat. 5

Environmental Product Compliance

• CAS-No.: 1303-86-2|1317-36-8|7439-92-1
• REACH Candidate List Substance: Diboron trioxide|Lead|Lead monoxide
• RoHS Compliance Status: Compliant,With Exemption
• RoHS Exemption: 6(c)|7(a)|7(c)-I|7(c)-II
• SCIP notification number (Austria): 610724ca-6d43-4775-a239-f42cf7fff0f6
• SCIP notification number (Belgium): b03778b3-1f97-431b-a5c0-5d7f40e8b00a
• SCIP notification number (Bulgaria): ef1fcf8a-5ec1-4469-a961-dd2347b1a519
• SCIP notification number (Czech Republic): b5b2e0fa-d027-4019-9de7-50ea75318d9a
• SCIP notification number (Denmark): b284f94b-ca8d-478e-bc10-dcdf56faf2d2
• SCIP notification number (Finland): ccf5126a-3da7-40bd-8ed6-917548faec3a
• SCIP notification number (France): 1b1e1d0a-9f61-4953-b924-4f552eb0f8f4
• SCIP notification number (Germany): 4b998730-2b5c-4104-bd25-25964afdf41c
• SCIP notification number (Hungary): 8e3ee64f-c1c7-4d6c-b515-82a1e3bf5246
• SCIP notification number (Italy): d5a825b3-dc6a-44ad-8f72-7be17aeba5c4
• SCIP notification number (Netherlands): 9b08ad25-45f8-4cf5-800b-71fdfa69059c
• SCIP notification number (Poland): d658c93c-ceb7-4fd3-86f9-92208bc5f4bd
• SCIP notification number (Romania): a7297ef4-bab4-4622-a392-4e5d27cbcabd
• SCIP notification number (Sweden): 882f52ce-f816-47e7-9db4-f791207000f1

Environmental requirements

• Ambient temperature (operation): -40 … +55 °C
• Ambient temperature (storage): -40 … +85 °C
• Operating altitude (max.): 5000m
• Relative humidity: 5 … 95 % (no condensation permissible)

Material data

• Weight: 45g

Mechanical data

• Mounting type: Snaps onto a Pro 2 Power Supply's communication interface (X4)

Physical data

• Depth: 22 mm / 0.866 inches
• Height: 80 mm / 3.15 inches
• Note (dimensions): Depth in mounted state
• Width: 35 mm / 1.378 inches

Safety and protection

• Insulation type: Functional insulation
• Overvoltage category: III
• Pollution degree: 2
• Protection class: III
• Protection type: IP20; per EN 60529
• Test voltage (fieldbus): 0.775 kVAC; 50 Hz; 1 min

Standards and specifications

• Conformity marking: CE
• Standards/specifications: EN 61010-1|EN 61010-2-201|EN 61204-3|UL 61010-1|UL 61010-2-201

Technical data

• Input - Nominal input current at U_N: 250 mA (max.)
• Input - Nominal input voltage U_{i nom}: 5 VDC (SELV)
• Signaling and communication - Communications: EtherNet/^IPTM
• Signaling and communication - Configuration options: Web-Based Management
• Signaling and communication - ETHERNET protocols: HTTP(S)|BootP|DHCP|SNTP|MQTT
• Signaling and communication - Signaling: 1 x ERR LED (red)|1 x COM OK LED (green)|1 x LED LNK/ACTx (green)|1 x LED SPEEDx (orange)
• Signaling and communication - Transmission medium (communication/fieldbus): ETHERNET: Twisted pair S-UTP; 100 Ω; Cat. 5
• Signaling and communication - Transmission rate: 100 MBd ( (ETHERNET: 10/100 Mbit/s))
• Signaling and communication - Visualization: Web-Visu
