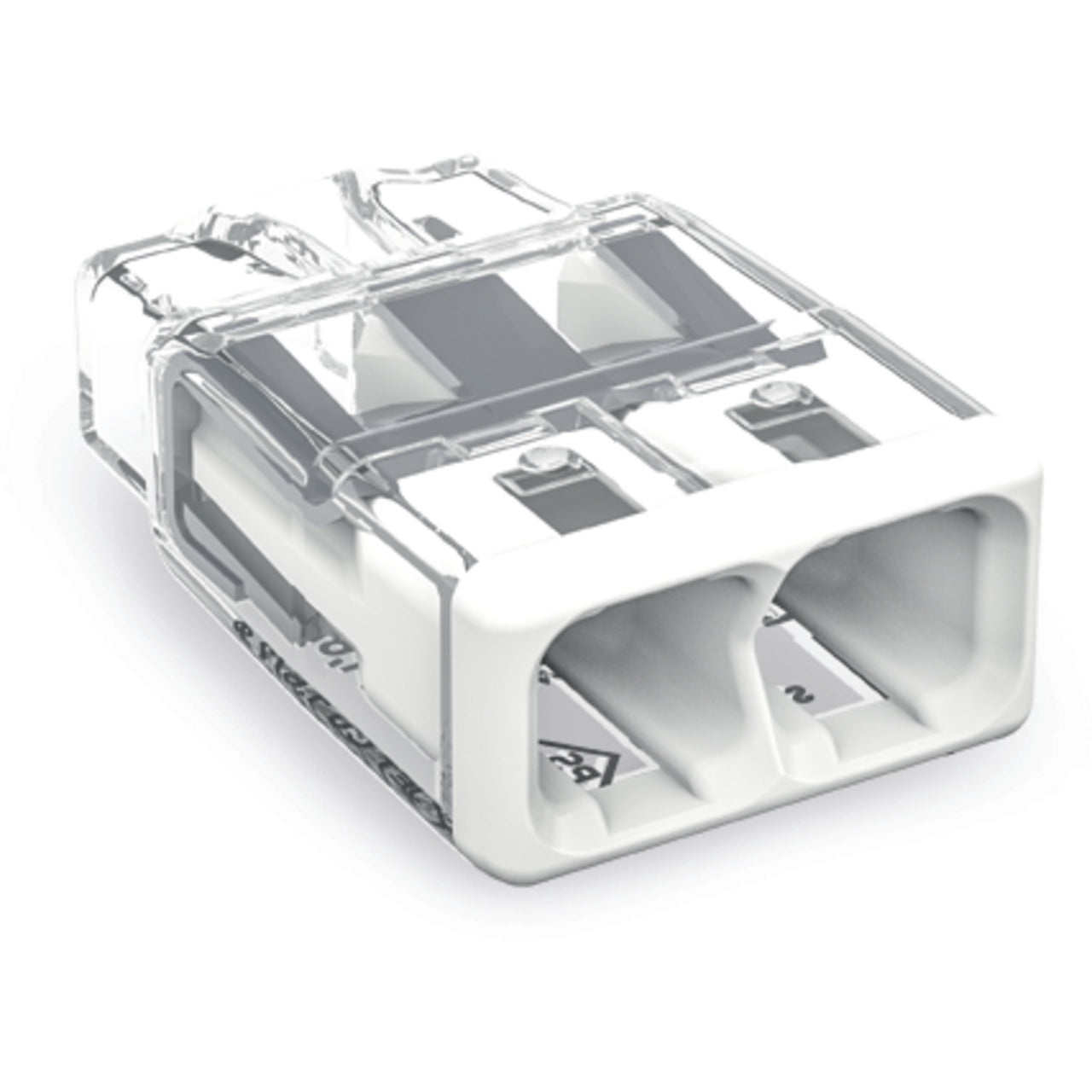

Wago - 2773-402

WAGO component - equivalent to 2773402

Specifications

• Primary brand: WAGO
• GTIN code: 4055143895408
• Order code / Manufacturer SKU: 2773-402
• Manufacturer product status: Commercialized
• Equivalent to: 2773402
• Manufacturer description: COMPACT PUSHWIRE splicing connector; for solid and stranded conductors; max. 12 AWG; 2-conductor; transparent housing; white cover
• Location of origin: Germany
• Manufacturer product specifications: Notes - Safety management note -- NOTICE Observe installation and safety instructions! / /|Only to be used by electricians!|Do not work under voltage/load!|Use only for proper use!|Observe national regulations/standards/guidelines!|Observe technical specifications for the products!|Observe the number of permissible potentials!|Do not use damaged/dirty components!|Observe conductor types; cross-sections and strip lengths!|Insert conductor until it hits the product's backstop!|Use original accessories! / To be sold only with installation instructions!|Electrical data - IEC Approvals - Ratings per -- IEC/EN 60998|Electrical data - IEC Approvals - Nominal voltage (II/2) -- 450V|Electrical data - IEC Approvals - Rated surge voltage (II/2) -- 4kV|Electrical data - IEC Approvals - Rated current -- 32A|Electrical data - IEC Approvals - Legend (ratings) -- (II / 2) Overvoltage category II / Pollution degree 2|Electrical data - UL Approvals - Approvals per -- UL 486C|Electrical data - UL Approvals - Rated voltage (UL) -- 600V|Electrical data - UL Approvals - Rated current UL -- 20A|Electrical data - UL Approvals - Rated voltage UL (Use Group C) -- 600V|Electrical data - UL Approvals - Rated current UL (Use Group C) -- 20A|Connection data - Clamping units -- 2|Connection data - Total number of potentials -- 1|Connection data - Connection 1 - Connection technology -- PUSH WIRE|Connection data - Connection 1 - Actuation type -- Push-in|Connection data - Connection 1 - Connectable conductor materials -- Copper|Connection data - Connection 1 - Solid conductor -- 0.75...4mm2 / 20...12 AWG|Connection data - Connection 1 - Stranded conductor -- 1.5...4mm2 / 18...12 AWG|Connection data - Connection 1 - Conductor diameter -- 1.6...2mm / 20...12 AWG|Connection data - Connection 1 - Strip length -- 13mm / 0.51"|Connection data - Connection 1 - Wiring direction -- Side-entry wiring|Physical data - Width -- 11.6mm / 0.457"|Physical data - Height -- 6.3mm / 0.248"|Physical data - Depth -- 18.6mm / 0.732"|Material data - Color -- transparent|Material data - Cover color -- white|Material data - Material group -- IIIa|Material data - Insulation material (main housing) -- Polycarbonate (PC)|Material data - Flammability class per UL94 -- V2|Material data - Clamping spring material -- Chrome-Nickel spring steel (CrNi)|Material data - Contact material -- Electrolytic Copper (E_Cu)|Material data - Contact plating -- Tin|Material data - Fire load -- 0.021MJ|Material data - Weight -- 1.1g|Environmental requirements - Ambient temperature (operation) -- +85°C|Environmental requirements - Processing temperature -- -35...+60°C|Environmental requirements - Continuous operating temperature -- -40...+105°C|Environmental requirements - Temperature marking per EN 60998 -- T85|Commercial data - ETIM 9.0 -- EC000446|Commercial data - ETIM 8.0 -- EC000446|Commercial data - ECCN -- NO DATA|Commercial data - PU (SPU) -- 1200 (120) pcs|Commercial data - Packaging type -- box|Commercial data - Country of origin -- DE|Commercial data - GTIN -- 4055143895408|Commercial data - Customs tariff number -- 8536904000|Environmental Product Compliance - RoHS Compliance Status -- Compliant;No Exemption
• Level 1 category: Cabling systems
• Level 2 category: Connectors & Inserts
