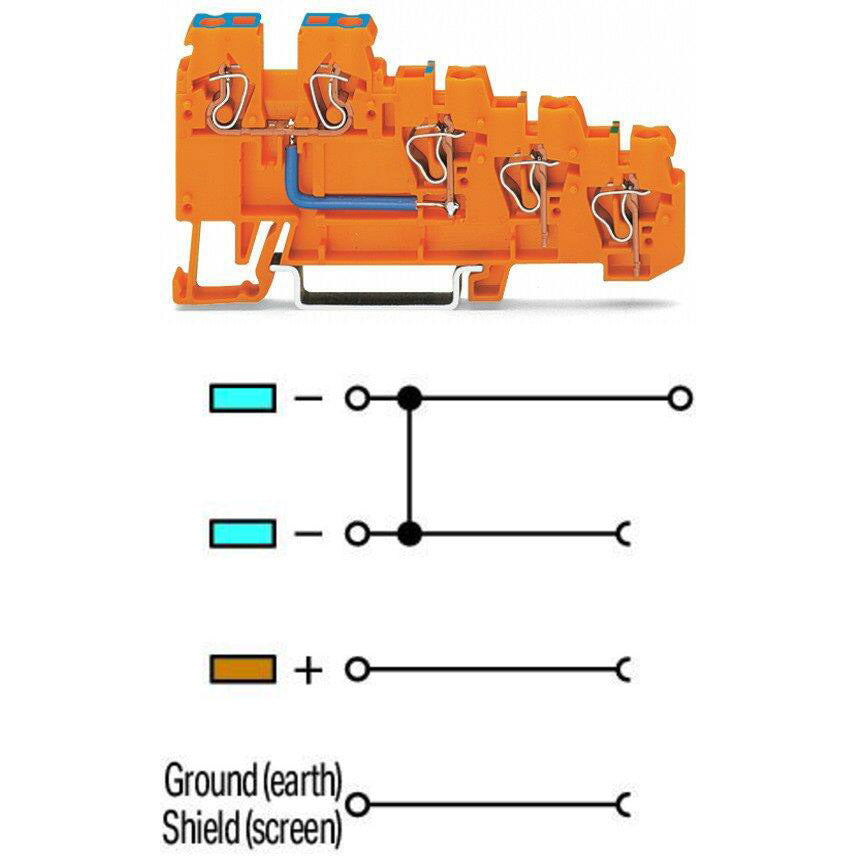

Sensr. suppl. terminal block with 4-decks/levels (quadruple-deck) + internal commoning + side/lateral marking slots - WAGO (270 series) - Orange - 4-conductors / 5-wires (5 clamps) - for 0.08mm2...2.5mm2 / for #28AWG...#12AWG - Rated current 18A - with CAGE CLAMP spring connections - DIN-35 rail mounting (5mm width) - equivalent to 270574

Specifications

• Primary brand: WAGO
• Functions: Sensr. suppl. terminal block
• Design: 4-decks/levels (quadruple-deck)|internal commoning|side/lateral marking slots|colored wire entry
• Poles: 4-conductors
• Temperature: Processing temperature -35°C...+85°C|Continuous operating temperature -60°C...+105°C
• Rated current: (IEC) 18A|(UL) 20A|(CSA) 10A
• Color: Orange
• Connection capacity: 5-wires (5 clamps)
• Rated operating voltage (Ue): (IEC) 250V|(UL) 300V|(CSA) 300V
• Rated impulse voltage (Uimp): (IEC) 4kV
• Connection type: CAGE CLAMP spring connections
• Cross-section: for 0.08mm2...2.5mm2 fine stranded or solid conductors|for #28AWG...#12AWG fine stranded or solid conductors
• Mounting mode: DIN-35 rail
• Dimensions: H83mm x W5mm x D39mm
• Net Width (mm): 5mm
• Material: Polyamide (PA) 66
• Customs Tariff Number: 85369010000
• ETIM code: EC000900
• eClass code: 27-14-11-28
• GTIN code: 4045454193829
• Order code / Manufacturer SKU: 270-574
• Manufacturer product status: Commercialized
• Equivalent to: 270574
• EAN code: 4045454193829
• Compliant with standard(s): General approvals|- CCA - DEKRA Certification B.V. - EN 60947 - certificate 2143311.03|- CCA - DEKRA Certification B.V. - EN 60947 - certificate NTR NL 6828|- CSA - DEKRA Certification B.V. - C22.2 - certificate 1565649|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|RoHS compliant|material group I|V-0 flammability rating
• Location of origin: China
• Level 1 category: Electrical components
• Level 2 category: Terminal blocks
• Product title: Sensr. suppl. terminal block - 4-decks/levels (quadruple-deck) - WAGO

Commercial data

• Country of origin: CN
• Customs tariff number: 85369010000
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-14-11-28
• eCl@ss 9.0: 27-14-11-28
• ETIM 8.0: EC000900
• ETIM 9.0: EC000900
• GTIN: 4045454193829
• Packaging type: box
• Product Group: 1 (Rail Mounted Terminal Blocks)
• PU (SPU): 10 pcs

Connection data

• Clamping units: 5
• Connection 1 - Actuation type: Operating tool
• Connection 1 - Connectable conductor materials: Copper
• Connection 1 - Connection technology: CAGE CLAMP^®
• Connection 1 - Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Connection 1 - Note (conductor cross-section): 12 AWG: THHN, THWN
• Connection 1 - Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Connection 1 - Strip length: 6 … 7 mm / 0.24 … 0.28 inches
• Connection 1 - Wiring direction: Front-entry wiring
• Number of levels: 4
• Total number of potentials: 3

Electrical data

• Power Loss - Power loss, per pole (potential): 0.431W
• Power Loss - Rated current I_N for specified power loss: 18A
• Power Loss - Resistance value for specified, current-dependent power loss: 0.001Ω
• Ratings per IEC/EN - Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3
• Ratings per IEC/EN - Nominal voltage (III/3): 250V
• Ratings per IEC/EN - Rated current: 18A
• Ratings per IEC/EN - Rated impulse withstand voltage (III / 3): 4kV

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Continuous operating temperature: -60 … +105 °C
• Processing temperature: -35 … +85 °C

Material data

• Color: orange
• Fire load: 1.405MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Material group: I
• Note (material data):
  Information on material specifications can be found here

• Weight: 11g

Mechanical data

• Design: horizontal type
• Marking level: Side marking
• Mounting type: DIN-35 rail

Notes

• Safety Information: Internal bridge: 9 A

Physical data

• Depth from upper-edge of DIN-rail: 39 mm / 1.535 inches
• Height: 83 mm / 3.268 inches
• Width: 5 mm / 0.197 inches
