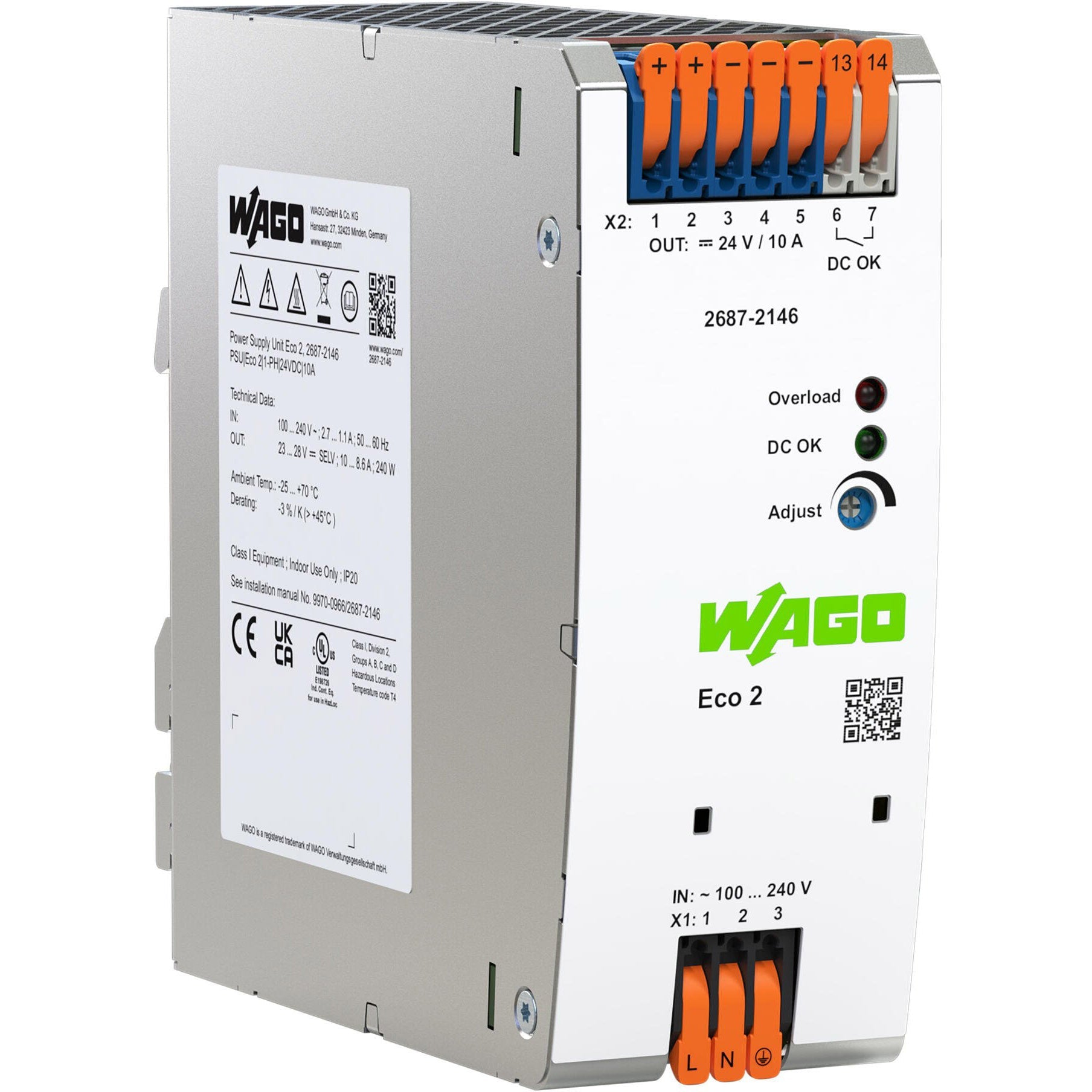

Wago - 2687-2146

AC-to-DC Eco2 switch-mode power supply unit (SMPS PSU) with DC-OK rly. contact output - WAGO (Power supply units Eco 2 series) - 24Vdc (SELV) / 10A / 240W output - Input voltage 90-264Vac (110Vac / 120Vac / 220Vac / 230Vac / 240Vac) (Single-phase AC (1AC)) - with Push-in CAGE CLAMP spring connections - DIN-35 rail mounting (50mm width) - IP20 - rated for -25°C...+70°C ambient - equivalent to 26872146

Specifications

• Primary brand: WAGO
• Network frequency: 50-60Hz
• Functions: AC-to-DC Eco2 switch-mode power supply unit (SMPS PSU)|Series operation possible|Parallel operation possible
• Design: DC-OK rly. contact output
• Supply voltage (AC): 90-264Vac (110Vac / 120Vac / 220Vac / 230Vac / 240Vac)
• Display: LED status indication (DC OK; Overload)
• Type of network: Single-phase AC (1AC)
• Rated current: 10A (-25...+45°C)|2.5A (70°C; -3% output derating for every 1K temperature rise above 45°C)
• Rated power: 240W
• Output voltage (DC): 24Vdc (SELV)|23-28Vdc (adjustable)
• Hold time: 25ms (230Vac input)
• Connection type: Push-in CAGE CLAMP spring connections
• Protection functions: T 6.3A / 250Vac internal fuse|Constant current (up to 110%)|Shutdown and automatic restart in the event of a short circuit|Short-circuit protection|Open circuit protection
• Efficiency: 0.93
• Mounting mode: DIN-35 rail
• Measurement accuracy: ≤ 1% (output error)
• Dimensions: H130mm x W50mm x D130mm|H5.118" x W1.97" x D5.118"
• Net Width (mm): 50mm
• Ambient air temperature for operation: -25°C...+70°C
• Ambient air temperature for storage: -40°C...+85°C
• Humidity: 5-96% relative humidity (RH; non-condensing)
• Current consumption: 1.1A (230Vac; Nominal load)|2.7A (100Vac; Nominal load)|25A inrush (after 1 ms)
• ETIM code: EC002540
• GTIN code: 4066966342451
• Customs Tariff Number: 85044083900
• Order code / Manufacturer SKU: 2687-2146
• Manufacturer product status: Commercialized
• Equivalent to: 26872146
• EAN code: 4066966342451
• Compliant with standard(s): Safety and protection|- Overvoltage category -- III (≤ 2000m a.s.l.); II (> 2000m a.s.l.)|- Isolation voltage (pri.-sec.; AC) -- 3510V|- Isolation voltage (pri.-PE; AC) -- 2200V|- Isolation voltage (sec.-PE; DC) -- 0.5kVDC|CE|EN 61010-1|EN 61010-2-201|EN 61204-3|UL 61010-1|UL 61010-2-201|General approvals|- EAC - GZO Almaty Standart - TP TC 004/2011 - certificate EAC CoC 03080|- EAC - GZO Almaty Standart - TP TC 020/2011 - certificate EAC CoC 03081|- UL - Underwriters Laboratories Inc. - UL 61010-2-201 - certificate UL-US-2212711-0_UL-CA-2212120-0_UL_E255817 ECO-2_2687-2146 (x)|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for hazardous areas|- UL - Underwriters Laboratories Inc. (HAZARDOUS LOCATIONS) - UL 121201 - certificate UL_E198726_Serie 2687-2146 (x)|RoHS compliant
• Location of origin: China
• Degree of pollution: 2
• Ripple: 75mVpp (output voltage)
• MTBF (Mean Time Between Failures): 1 000 000h (as per IEC 61709)
• Benefits: Signal output‚ optical status indication|Suitable for both parallel and series operation|Natural convection cooling when horizontally mounted|Connection technology with push-in termination and tool-free lever operation|Electrically isolated output voltage (SELV/PELV) per EN 61010/UL 61010|Marker slot for WAGO marking cards (WMB) and WAGO marking strips
• Level 1 category: Automation components
• Level 2 category: Power supply units
• Product title: AC-to-DC Eco2 switch-mode power supply unit (SMPS PSU) - WAGO (Eco 2 series)

Commercial data

• Country of origin: CN
• Customs tariff number: 85044083900
• ECCN: NO US CLASSIFICATION
• ETIM 8.0: EC002540
• ETIM 9.0: EC002540
• GTIN: 4066966342451
• Packaging type: Box
• PU (SPU): 1 pcs

Connection data

• Connection technology: Push-in CAGE CLAMP^®
• Connection type 1: Input/output/signaling
• Fine-stranded conductor: 0.2 … 4 mm² / 24 … 12 AWG
• Solid conductor: 0.2 … 4 mm² / 24 … 12 AWG

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Ambient temperature (operation): -25 … +70 °C (Device starts at -40 °C (type-tested))
• Ambient temperature (storage): -40 … +85 °C
• Climatic category: 3K3 (per EN 60721)
• Derating: -3 %/K (> 45 °C)
• Operating altitude (max.): 5000m
• Relative humidity: 5 … 96 % (no condensation permissible)

Material data

• Weight: 800g

Mechanical data

• Mounting type: DIN-35 rail

Physical data

• Depth from upper-edge of DIN-rail: 130 mm / 5.118 inches
• Height: 130 mm / 5.118 inches
• Width: 50 mm / 1.97 inches

Safety and protection

• Isolation voltage (pri.-PE, AC): 2,200V
• Isolation voltage (pri.-sec., AC): 3,510V
• Isolation voltage (sec.-PE): 0.5 kVDC
• Isolation voltage (sec.-signal): 0.5 kVDC
• MTBF: > 1,000,000 h (per IEC 61709)
• Open-circuit-proof: Yes
• Overvoltage category: III (≤ 2000 m a.s.l.); II (> 2000 m a.s.l.)
• Parallel operation: Yes
• Pollution degree: 2
• Protection class: I
• Protection type: IP20; per EN 60529
• Series operation: Yes
• Short-circuit-protected: Yes

Standards and specifications

• Conformity marking: CE
• Standards/specifications: EN 61010-1|EN 61010-2-201|EN 61204-3|UL 61010-1|UL 61010-2-201

Technical data

• Circuit protection - Internal fuse: T 6.3 A / 250 VAC
• Efficiency/power losses - Efficiency (typ.): 93 %
• Efficiency/power losses - Power loss P_l: ≤ 3 W (230 VAC; no load); ≤ 13 W (230 VAC; nominal load)
• Input - Input current I_i: ≤ 1.1 A (230 VAC; nominal load); ≤ 2.7 A (100 VAC; nominal load)
• Input - Input voltage range: 1 x 90 … 264 VAC
• Input - Inrush current: ≤ 25 A (after 1 ms)
• Input - Mains failure hold-up time: ≥ 25 ms (230 VAC)
• Input - Nominal input voltage U_{i nom}: 1 x 100 … 240 VAC
• Input - Nominal mains frequency range: 50 … 60 Hz; 0 Hz
• Input - Phases: 1
• Input - Power factor correction (PFC): Active
• Output - Default setting: DC 24 V
• Output - Deviation: ≤ 1 %
• Output - Nominal output current I_{o nom}: 10 A (24 VDC)
• Output - Nominal output power: 240W
• Output - Nominal output voltage U_{o nom}: 24 VDC (SELV)
• Output - Output voltage range: 23 … 28 VDC (adjustable)
• Output - Overload behavior: Constant current up to 105 … 110 %; shutdown and automatic restart in the event of a short circuit
• Output - Residual ripple: ≤ 75 mV (peak-to-peak)
• Signaling and communication - Signaling: Optical status indication (overload)|Optical status indication (DC OK)|Digital signal output (DO)
