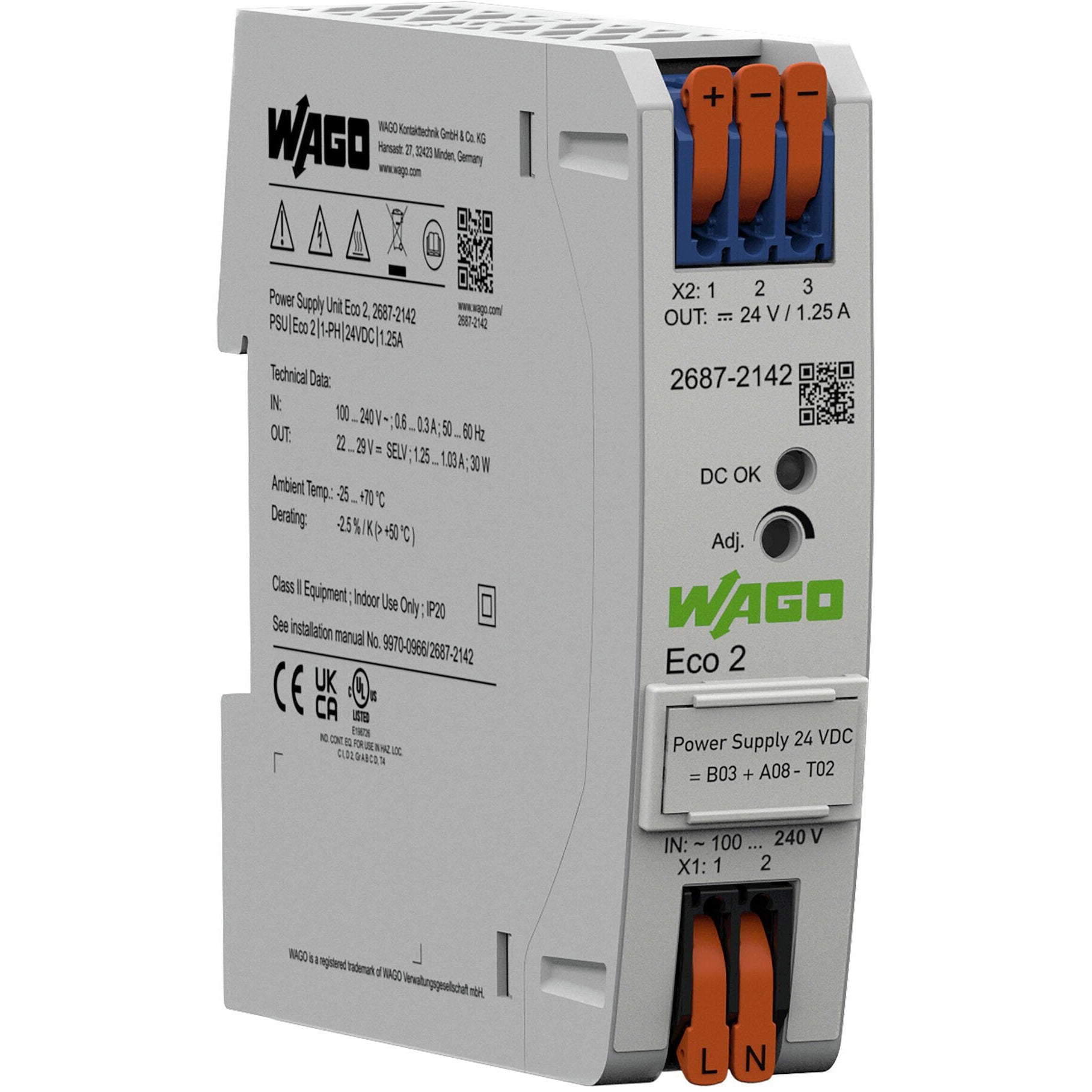

AC-to-DC Eco2 switch-mode power supply unit (SMPS PSU) - WAGO (Power supply units Eco 2 series) - 24Vdc (SELV) / 1.25A / 30W output - Input voltage 90-264Vac (110Vac / 120Vac / 220Vac / 230Vac / 240Vac) (Single-phase AC (1AC)) - with Push-in CAGE CLAMP spring connections - DIN-35 rail mounting (25mm width) - IP20 - rated for -25°C...+70°C ambient - equivalent to 26872142

Specifications

• Primary brand: WAGO
• Network frequency: 50-60Hz
• Functions: AC-to-DC Eco2 switch-mode power supply unit (SMPS PSU)|Series operation possible|Parallel operation possible
• Supply voltage (AC): 90-264Vac (110Vac / 120Vac / 220Vac / 230Vac / 240Vac)
• Display: LED status indication (DC OK -- green)
• Type of network: Single-phase AC (1AC)
• Rated current: 1.25A
• Rated power: 30W
• Output voltage (DC): 24Vdc (SELV)|22-29Vdc (adjustable)
• Hold time: 120ms (230Vac)|15ms (110Vac)
• Connection type: Push-in CAGE CLAMP spring connections
• Protection functions: T 1A / 250Vac internal fuse|Constant power (up to 125%)|Shutdown and automatic restart in the event of a short circuit|Short-circuit protection|Open circuit protection
• Efficiency: 0.88
• Mounting mode: DIN-35 rail
• Measurement accuracy: ≤ 1% (output error)
• Dimensions: H100mm x W25mm x D90mm|H3.937" x W0.984" x D3.54"
• Net Width (mm): 25mm
• Ambient air temperature for operation: -25°C...+70°C
• Ambient air temperature for storage: -40°C...+85°C
• Humidity: 5-96% relative humidity (RH; non-condensing)
• Current consumption: 0.3A (230Vac; Nominal load)|0.6A (100Vac; Nominal load)|10A inrush (after 1 ms)
• GTIN code: 4066966156492
• ETIM code: EC002540
• Customs Tariff Number: 85044083900
• Order code / Manufacturer SKU: 2687-2142
• Manufacturer product status: Commercialized
• Equivalent to: 26872142
• EAN code: 4066966156492
• Compliant with standard(s): Safety and protection|- Overvoltage category -- III (≤ 2000m a.s.l.); II (> 2000m a.s.l.)|- Isolation voltage (pri.-sec.; AC) -- 3510V|CE|EN 61010-1|EN 61010-2-201|EN 61204-3|SEMI F47|UL 61010-1|UL 61010-2-201|General approvals|- EAC - GZO Almaty Standart - TP TC 004/2011 - certificate EAC CoC 03080|- EAC - GZO Almaty Standart - TP TC 020/2011 - certificate EAC CoC 03081|- UL - Underwriters Laboratories Inc. - UL 61010-2-201 - certificate E255817|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- MFD for SEMI F47 - WAGO GmbH & Co. KG|Approvals for hazardous areas|- UL - Underwriters Laboratories Inc. (HAZARDOUS LOCATIONS) - UL 121201 - certificate E198726|RoHS compliant with exemption (6(c) / 7(a) / 7(c)-I / 7(c)-II)
• Location of origin: China
• Degree of pollution: 2
• Ripple: 30mVpp (output voltage)
• MTBF (Mean Time Between Failures): 1 000 000h (as per IEC 61709)
• Benefits: Optical status indication|Suitable for both parallel and series operation|Natural convection cooling when horizontally mounted|Connection technology with push-in termination and tool-free lever operation|Electrically isolated output voltage (SELV/PELV) per EN 61010/UL 61010|Marker slot for WAGO marking cards (WMB) and WAGO marking strips
• Level 1 category: Automation components
• Level 2 category: Power supply units
• Product title: AC-to-DC Eco2 switch-mode power supply unit (SMPS PSU) - WAGO (Eco 2 series)

Commercial data

• Country of origin: CN
• Customs tariff number: 85044083900
• ECCN: NO US CLASSIFICATION
• ETIM 8.0: EC002540
• ETIM 9.0: EC002540
• GTIN: 4066966156492
• Packaging type: Box
• PU (SPU): 1 pcs

Connection data

• Connection technology: Push-in CAGE CLAMP^®
• Connection type 1: Input/output
• Fine-stranded conductor: 0.2 … 4 mm² / 24 … 12 AWG
• Solid conductor: 0.2 … 4 mm² / 24 … 12 AWG

Environmental Product Compliance

• CAS-No.: 1303-86-2|1317-36-8|7439-92-1|79-94-7
• REACH Candidate List Substance: 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol|Diboron trioxide|Lead|Lead monoxide
• RoHS Compliance Status: Compliant,With Exemption
• RoHS Exemption: 6(c)|7(a)|7(c)-I|7(c)-II
• SCIP notification number (Austria): 9b403ba9-f691-48b6-b7e9-603b089e67e6
• SCIP notification number (Belgium): f1123ee4-48ff-4a70-bbbf-1b951fcaa4e8
• SCIP notification number (Bulgaria): df339ba3-d4bf-446c-9814-4a47201f1fd5
• SCIP notification number (Czech Republic): dc4e5824-d5f3-47d5-89db-6733f3388d7b
• SCIP notification number (Denmark): f249a554-0261-48db-a7bd-b170a7cfb7e2
• SCIP notification number (Finland): 723b3c42-d328-44d9-b92c-6d94efe6aac7
• SCIP notification number (France): 2e69deff-80c5-43ea-bb0e-1304ca263196
• SCIP notification number (Germany): ab87850c-6d44-45f7-9b5d-85554085def1
• SCIP notification number (Hungary): b2fb9e28-baf9-482b-9382-97dd67c40729
• SCIP notification number (Italy): cf8859b7-2e31-4206-ab95-822a0087c774
• SCIP notification number (Netherlands): ce3539f4-a927-4dc7-a42e-04e5928eae84
• SCIP notification number (Poland): c7d5340a-56bd-4d28-8b5b-38d1b0e40a5a
• SCIP notification number (Romania): 40c031c1-ca60-4f13-9599-8039b1be4139
• SCIP notification number (Sweden): f75a91c5-b1eb-48ad-b86c-6ef95d158486

Environmental requirements

• Ambient temperature (operation): -25 … +70 °C (Device starts at -40 °C (type-tested))
• Ambient temperature (storage): -40 … +85 °C
• Climatic category: 3K3 (per EN 60721)
• Derating: Siehe Typenschild/Handbuch
• Operating altitude (max.): 5000m
• Relative humidity: 5 … 96 % (no condensation permissible)

Material data

• Weight: 160g

Mechanical data

• Mounting type: DIN-35 rail

Physical data

• Depth from upper-edge of DIN-rail: 90 mm / 3.54 inches
• Height: 100 mm / 3.937 inches
• Width: 25 mm / 0.984 inches

Safety and protection

• Isolation voltage (pri.-sec., AC): 3,510V
• MTBF: > 1,000,000 h (per IEC 61709)
• Open-circuit-proof: Yes
• Overvoltage category: III (≤ 2000 m a.s.l.); II (> 2000 m a.s.l.)
• Parallel operation: Yes
• Pollution degree: 2
• Protection class: II
• Protection type: IP20; per EN 60529
• Resistance to reverse feed: ≤ 35 VDC
• Series operation: Yes
• Short-circuit-protected: Yes

Standards and specifications

• Conformity marking: CE
• Standards/specifications: SEMI F47|EN 61010-1|EN 61010-2-201|EN 61204-3|UL 61010-1|UL 61010-2-201

Technical data

• Circuit protection - Backup fusing (recommended): 16 A (for USA/Canada: 15 A)
• Circuit protection - Internal fuse: T 1 A / 250 VAC
• Efficiency/power losses - Efficiency (typ.): 88 %
• Efficiency/power losses - Power loss P_l: ≤ 0.2 W (no load); ≤ 4.3 W (nominal load)
• Input - Input current I_i: ≤ 0.3 A (230 VAC; Nominal load); ≤ 0.6 A (100 VAC; Nominal load)
• Input - Input voltage range: 1 x 90 … 264 VAC
• Input - Inrush current: ≤ 10 A (after 1 ms)
• Input - Mains failure hold-up time: ≥ 120 ms (230 VAC); ≥ 15 ms (110 VAC)
• Input - Nominal input voltage U_{i nom}: 1 x 100 … 240 VAC|1 x AC 100 … 240 V
• Input - Nominal mains frequency range: 50 … 60 Hz
• Input - Phases: 1
• Input - Power factor correction (PFC): Passive
• Output - Default setting: DC 24 V
• Output - Deviation: ≤ 1 %
• Output - Nominal output current I_{o nom}: 1.25 A (24 VDC)
• Output - Nominal output power: 30W
• Output - Nominal output voltage U_{o nom}: 24 VDC (SELV)
• Output - Output voltage range: 22 … 29 VDC (adjustable)
• Output - Overload behavior: Constant power up to 125 %; Shutdown and automatic restart in the event of a short circuit
• Output - Residual ripple: ≤ 30 mV (peak-to-peak, at 230 VAC)
• Signaling and communication - Signaling: 1 x LED DC OK (green)
