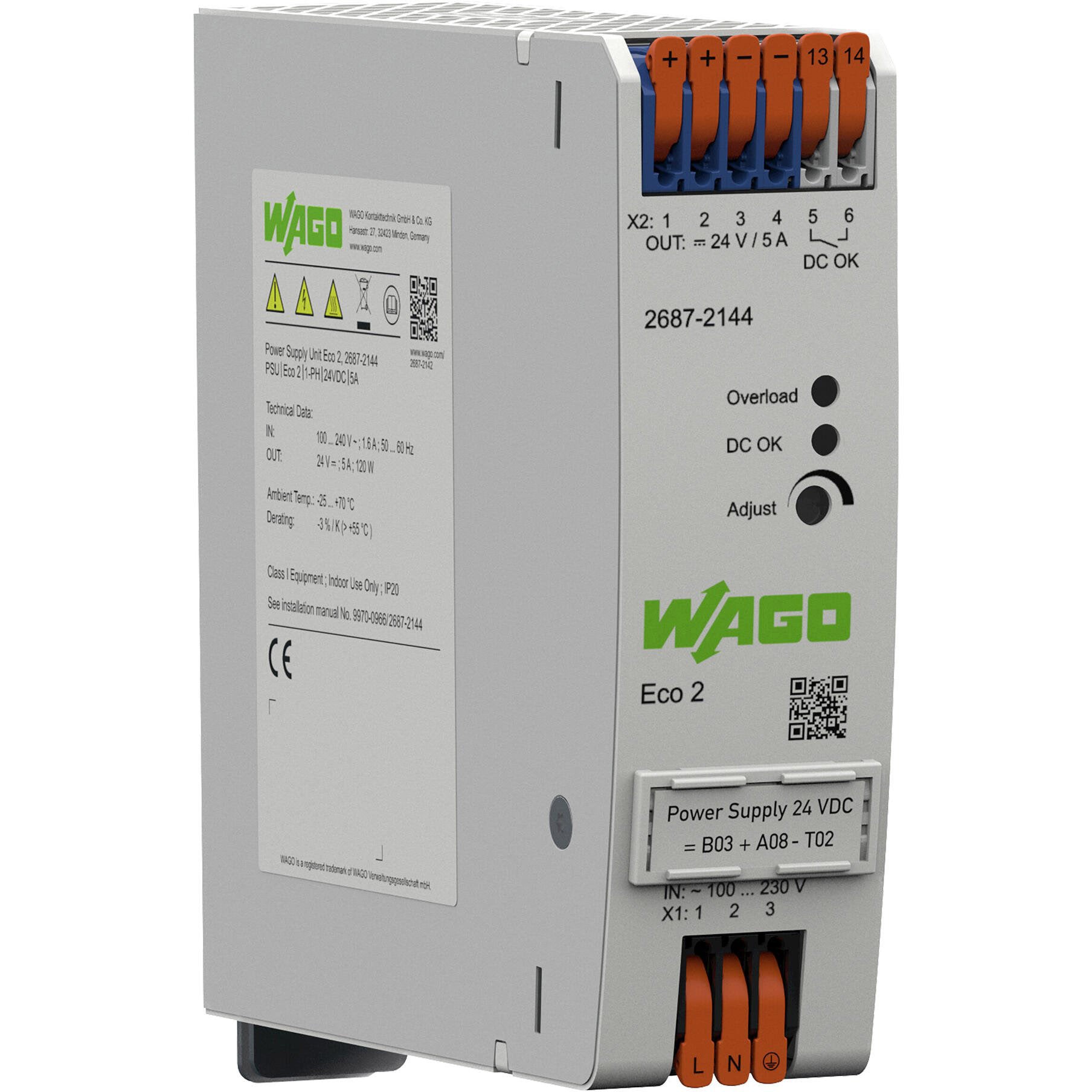

AC-to-DC Eco2 switch-mode power supply unit (SMPS PSU) with DC-OK rly. contact output - WAGO (Power supply units Eco 2 series) - 24Vdc (SELV) / 5A / 120W output - Input voltage 90-264Vac (110Vac / 120Vac / 220Vac / 230Vac / 240Vac) (Single-phase AC (1AC)) - with Push-in CAGE CLAMP spring connections - DIN-35 rail mounting (38mm width) - IP20 - rated for -25°C...+70°C ambient - equivalent to 26872144

Specifications

• Primary brand: WAGO
• Network frequency: 50-60Hz
• Functions: AC-to-DC Eco2 switch-mode power supply unit (SMPS PSU)|Series operation possible|Parallel operation possible
• Design: DC-OK rly. contact output
• Supply voltage (AC): 90-264Vac (110Vac / 120Vac / 220Vac / 230Vac / 240Vac)
• Display: LED status indication (DC OK; Overload)
• Type of network: Single-phase AC (1AC)
• Rated current: 5A (-25...+55°C)|3.125A (70°C; -2.5% output derating for every 1K temperature rise above 55°C)
• Rated power: 120W
• Output voltage (DC): 24Vdc (SELV)|23-28Vdc (adjustable)
• Hold time: 20ms (230Vac input)
• Connection type: Push-in CAGE CLAMP spring connections
• Protection functions: T 3.15A / 250Vac internal fuse|Constant power (up to 125%)|Shutdown and automatic restart in the event of a short circuit|Short-circuit protection|Open circuit protection
• Efficiency: 0.9
• Mounting mode: DIN-35 rail
• Measurement accuracy: ≤ 1% (output error)
• Dimensions: H130mm x W38mm x D130mm|H5.118" x W1.496" x D5.118"
• Net Width (mm): 38mm
• Ambient air temperature for operation: -25°C...+70°C
• Ambient air temperature for storage: -40°C...+85°C
• Humidity: 5-96% relative humidity (RH; non-condensing)
• Current consumption: 0.8A (230Vac; Nominal load)|1.5A (100Vac; Nominal load)|20A inrush (after 1 ms)
• Customs Tariff Number: 85044083900
• ETIM code: EC002540
• GTIN code: 4066966401080
• Order code / Manufacturer SKU: 2687-2144
• Manufacturer product status: Commercialized
• Equivalent to: 26872144
• EAN code: 4066966207439
• Compliant with standard(s): Safety and protection|- Overvoltage category -- III (≤ 2000m a.s.l.); II (> 2000m a.s.l.)|- Isolation voltage (pri.-sec.; AC) -- 3510V|- Isolation voltage (pri.-PE; AC) -- 2200V|- Isolation voltage (sec.-PE; DC) -- 0.5kVDC|CE|EN 61010-1|EN 61010-2-201|EN 61204-3|SEMI F47|UL 61010-1|UL 61010-2-201|General approvals|- EAC - GZO Almaty Standart - TP TC 004/2011 - certificate EAC CoC 03080|- EAC - GZO Almaty Standart - TP TC 020/2011 - certificate EAC CoC 03081|- UL - Underwriters Laboratories Inc. - UL 61010-2-201 - certificate UL-US-2218925-0_UL-CA-2218432-0|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- MFD for SEMI F47 - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for hazardous areas|- UL - Underwriters Laboratories Inc. (HAZARDOUS LOCATIONS) - UL 121201 - certificate E198726|RoHS compliant with exemption (6(c) / 7(a) / 7(c)-I / 7(c)-II)
• Location of origin: China
• Degree of pollution: 2
• Ripple: 75mVpp (output voltage)
• MTBF (Mean Time Between Failures): 1 100 000h (as per IEC 61709)
• Benefits: Signal output‚ optical status indication|Suitable for both parallel and series operation|Natural convection cooling when horizontally mounted|Connection technology with push-in termination and tool-free lever operation|Electrically isolated output voltage (SELV/PELV) per EN 61010/UL 61010|Marker slot for WAGO marking cards (WMB) and WAGO marking strips
• Level 1 category: Automation components
• Level 2 category: Power supply units
• Product title: AC-to-DC Eco2 switch-mode power supply unit (SMPS PSU) - WAGO (Eco 2 series)

Commercial data

• Country of origin: CN
• Customs tariff number: 85044083900
• ECCN: NO US CLASSIFICATION
• ETIM 8.0: EC002540
• ETIM 9.0: EC002540
• GTIN: 4066966401080
• Packaging type: Box
• PU (SPU): 1 pcs

Connection data

• Connection technology: Push-in CAGE CLAMP^®
• Connection type 1: Input/output/signaling
• Fine-stranded conductor: 0.2 … 4 mm² / 24 … 12 AWG
• Solid conductor: 0.2 … 4 mm² / 24 … 12 AWG

Environmental Product Compliance

• CAS-No.: 1303-86-2|1317-36-8|7439-92-1|79-94-7
• REACH Candidate List Substance: 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol|Diboron trioxide|Lead|Lead monoxide
• RoHS Compliance Status: Compliant,With Exemption
• RoHS Exemption: 6(c)|7(a)|7(c)-I|7(c)-II
• SCIP notification number (Austria): 88b095ec-76a2-44ba-bc4f-8af04d3aa869
• SCIP notification number (Belgium): 1f36d4b5-c2bd-4fa4-9ba7-fab4560274ea
• SCIP notification number (Bulgaria): ece2741c-94c2-4643-8455-4af30ed67835
• SCIP notification number (Czech Republic): cd95343d-b393-43cf-80b0-cccb5257bbfd
• SCIP notification number (Denmark): 8de2a84b-c12a-4761-91dd-b119773534c8
• SCIP notification number (Finland): 37dca7ef-68a8-4237-96ee-ffc69fca1b79
• SCIP notification number (France): be625ff9-61f8-44cb-a1b4-9c91e7ab498f
• SCIP notification number (Germany): 0f1a79bc-42ce-497c-93aa-169b84dec80a
• SCIP notification number (Hungary): c75d9660-e9e0-4f6a-8094-a02f7eb002c5
• SCIP notification number (Italy): 4058ebcb-e5d3-4e13-8a2c-bb034a513773
• SCIP notification number (Netherlands): e09550f1-21a2-4612-b815-cd116bb56de2
• SCIP notification number (Poland): 42928b5b-13e1-44dc-bfe4-9af43f5d13b6
• SCIP notification number (Romania): 42dd0d9d-70ff-4898-aa20-05f92774b9fb
• SCIP notification number (Sweden): d048877f-4660-48fa-8533-a6cfed8010d2

Environmental requirements

• Ambient temperature (operation): -25 … +70 °C (Device starts at -40 °C (type-tested))
• Ambient temperature (storage): -40 … +85 °C
• Climatic category: 3K3 (per EN 60721)
• Derating: -2.5 %/K, > 55 °C; -10 %/V, > 24 V
• Operating altitude (max.): 5000m
• Relative humidity: 5 … 96 % (no condensation permissible)

Material data

• Weight: 620g

Mechanical data

• Mounting type: DIN-35 rail

Physical data

• Depth from upper-edge of DIN-rail: 130 mm / 5.118 inches
• Height: 130 mm / 5.118 inches
• Width: 38 mm / 1.496 inches

Safety and protection

• Isolation voltage (pri.-PE, AC): 2,200V
• Isolation voltage (pri.-sec., AC): 3,510V
• Isolation voltage (sec.-PE): 0.5 kVDC
• Isolation voltage (sec.-signal): 0.5 kVDC
• MTBF: > 1,000,000 h (per IEC 61709)
• Open-circuit-proof: Yes
• Overvoltage category: III (≤ 2000 m a.s.l.); II (> 2000 m a.s.l.)
• Parallel operation: Yes
• Pollution degree: 2
• Protection class: I
• Protection type: IP20; per EN 60529
• Series operation: Yes
• Short-circuit-protected: Yes

Standards and specifications

• Conformity marking: CE
• Standards/specifications: SEMI F47|EN 61010-1|EN 61010-2-201|EN 61204-3|UL 61010-1|UL 61010-2-201

Technical data

• Circuit protection - Backup fusing (recommended): 16 A (for USA/Canada: 15 A)
• Circuit protection - Internal fuse: T 3.15 A / 250 VAC
• Efficiency/power losses - Efficiency (typ.): 90 %
• Efficiency/power losses - Power loss P_l: ≤ 3 W; ≤ 12 W (nominal load)
• Input - Input current I_i: ≤ 0.8 A (230 VAC; nominal load); ≤ 1.5 A (100 VAC; nominal load)
• Input - Input voltage range: 1 x 90 … 264 VAC
• Input - Inrush current: ≤ 20 A (after 1 ms)
• Input - Mains failure hold-up time: ≥ 20 ms (230 VAC)
• Input - Nominal input voltage U_{i nom}: 1 x 100 … 240 VAC|1 x AC 100 … 240 V
• Input - Nominal mains frequency range: 50 … 60 Hz; 0 Hz
• Input - Phases: 1
• Input - Power factor correction (PFC): Active
• Output - Default setting: DC 24 V
• Output - Deviation: ≤ 1 %
• Output - Nominal output current I_{o nom}: 5 A (24 VDC)
• Output - Nominal output power: 120W
• Output - Nominal output voltage U_{o nom}: 24 VDC (SELV)
• Output - Output voltage range: 23 … 28 VDC (adjustable)
• Output - Overload behavior: Constant power up to 125 %; shutdown and automatic restart in the event of a short circuit
• Output - Residual ripple: ≤ 75 mV (peak-to-peak)
• Signaling and communication - Signaling: Optical status indication (overload)|Optical status indication (DC OK)|Digital signal output (DO)
