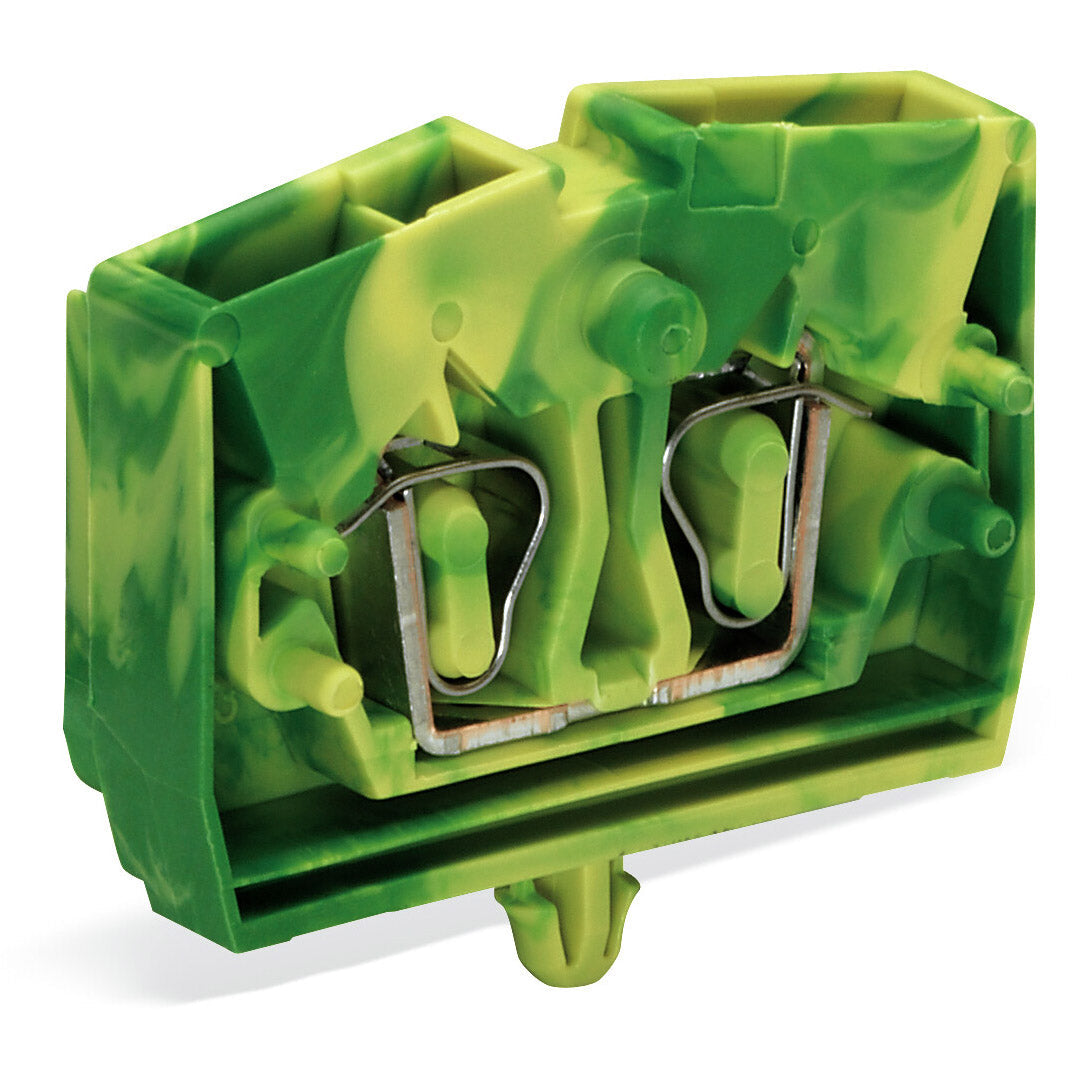

Wago - 264-317

Feed-through/thru for ground/earthing terminal block with 1-deck/level + snap-in mounting foot + center marking slot - WAGO (264 series) - Green-Yellow - 1 grounding / protective-earth (1PE) / 2-wires (1 clamp + 1 clamp) (1+1) - for 0.08mm2...2.5mm2 / for #28AWG...#12AWG - with CAGE CLAMP spring connections - Mounts on DIN rail or surface via accessory snap-in foot mounting (6mm width) - equivalent to 264317

Specifications

• Primary brand: WAGO
• Functions: Feed-through/thru for ground/earthing terminal block
• Design: 1-deck/level|snap-in mounting foot|center marking slot
• Poles: 1 grounding / protective-earth (1PE)
• Temperature: Processing temperature -35°C...+85°C|Continuous operating temperature -60°C...+105°C
• Color: Green-Yellow
• Connection capacity: 2-wires (1 clamp + 1 clamp) (1+1)
• Connection type: CAGE CLAMP spring connections
• Cross-section: for 0.08mm2...2.5mm2 fine stranded or solid conductors|for #28AWG...#12AWG fine stranded or solid conductors
• Mounting mode: Mounts on DIN rail or surface via accessory snap-in foot
• Dimensions: H32mm x W6mm x D22.1mm
• Net Width (mm): 6mm
• Material: Polyamide (PA) 66|Halogen-free materials
• ETIM code: EC001284
• eClass code: 27-14-11-06
• Customs Tariff Number: 85369010000
• GTIN code: 4044918415255
• Order code / Manufacturer SKU: 264-317
• Manufacturer product status: Commercialized
• Equivalent to: 264317
• EAN code: 4044918415255
• Compliant with standard(s): General approvals|- CB - DEKRA Certification B.V. - EN 60998 - certificate NL-49768|- CCA - DEKRA Certification B.V. - EN 60998 - certificate NTR NL-7342|- CCA - DEKRA Certification B.V. - EN 60998 - certificate 2175624.01|- CCC - CQC - GB/T 13140.1 - certificate CQC04003009928|- CQC - CHINA QUALITY CERT. CENTRE - GB/T 13140.3 - certificate CQC04003009928|- CSA - DEKRA Certification B.V. - C22.2 - certificate 70010891|- UR - Underwriters Laboratories Inc. - UL 1059 - certificate E45172|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for marine applications|- ABS - American Bureau of Shipping - certificate 19-HG1869868-PDA|- BV - Bureau Veritas S.A. - EN 60947 - certificate 07436/F0 BV|- DNV GL - Det Norske Veritas Germanischer Lloyd - certificate TAE00001V2|- LR - Lloyds Register - IEC 60998 - certificate LR22173030TA|RoHS compliant|material group I|V-0 flammability rating
• Location of origin: Switzerland
• Level 1 category: Electrical components
• Level 2 category: Terminal blocks
• Product title: Feed-through/thru for ground/earthing terminal block - 1-deck/level - WAGO

Commercial data

• Country of origin: CH
• Customs tariff number: 85369010000
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-14-11-06
• eCl@ss 9.0: 27-14-11-06
• ETIM 8.0: EC001284
• ETIM 9.0: EC001284
• GTIN: 4044918415255
• Packaging type: box
• Product Group: 9 (Std Chassis Mt Blocks)
• PU (SPU): 100 pcs

Connection data

• Clamping units: 2
• Connection 1 - Actuation type: Operating tool
• Connection 1 - Connectable conductor materials: Copper
• Connection 1 - Connection technology: CAGE CLAMP^®
• Connection 1 - Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Connection 1 - Note (conductor cross-section): 12 AWG: THHN, THWN
• Connection 1 - Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Connection 1 - Strip length: 8 … 9 mm / 0.31 … 0.35 inches
• Connection 1 - Wiring direction: Front-entry wiring
• Number of levels: 1
• Total number of potentials: 1

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Continuous operating temperature: -60 … +105 °C
• Processing temperature: -35 … +85 °C

Material data

• Color: green-yellow
• Fire load: 0.076MJ
• Flammability class per UL94: V0
• Halogen-free: Yes
• Insulation material (main housing): Polyamide (PA66)
• Material group: I
• Note (material data):
  Information on material specifications can be found here

• Weight: 3.9g

Mechanical data

• Design: horizontal type
• Marking level: Center marking
• Mounting type: Snap-in foot

Physical data

• Depth: 22.1 mm / 0.87 inches
• Height: 32 mm / 1.26 inches
• Height from the surface: 22.1 mm / 0.87 inches
• Width: 6 mm / 0.236 inches
