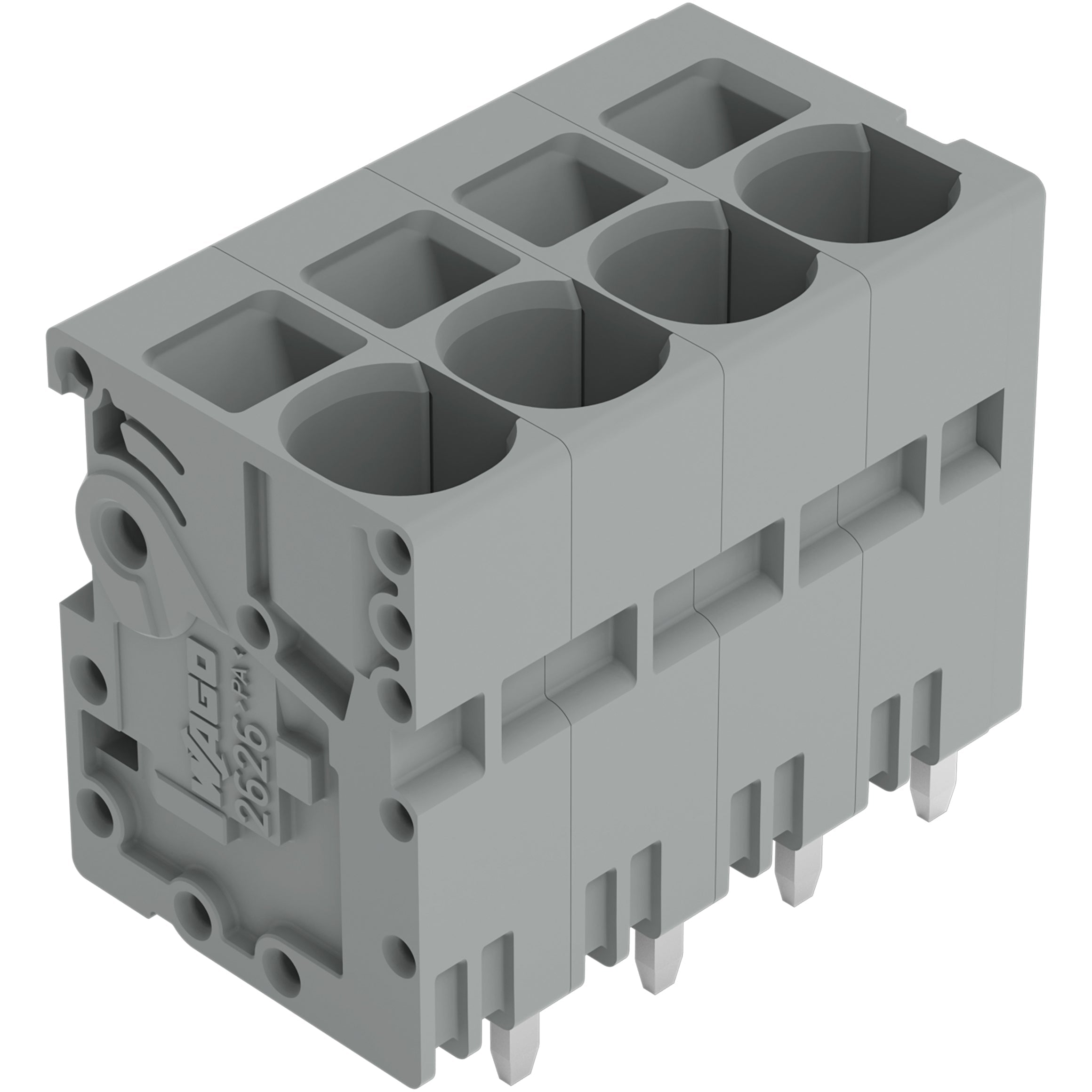

Wago - 2626-3105

WAGO component - equivalent to 26263105

Specifications

• Primary brand: WAGO
• GTIN code: 4066966124477
• Order code / Manufacturer SKU: 2626-3105
• Manufacturer product status: Commercialized
• Equivalent to: 26263105
• EAN code: 4066966124477
• Manufacturer description: PCB terminal block; 6mm2; Pin spacing 7.5mm; 5-pole; Push-in CAGE CLAMP; 6mm2; gray
• Manufacturer product specifications: Electrical data - Ratings per IEC/EN - Ratings per -- IEC/EN 60664-1|Electrical data - Ratings per IEC/EN - Nominal voltage (III/3) -- 1000V|Electrical data - Ratings per IEC/EN - Rated impulse withstand voltage (III / 3) -- 8kV|Electrical data - Ratings per IEC/EN - Rated voltage (III/2) -- 1000V|Electrical data - Ratings per IEC/EN - Rated impulse withstand voltage (III/2) -- 8kV|Electrical data - Ratings per IEC/EN - Nominal voltage (II/2) -- 1000V|Electrical data - Ratings per IEC/EN - Rated impulse withstand voltage (II/2) -- 8kV|Electrical data - Ratings per IEC/EN - Rated current -- 48A|Electrical data - Ratings per UL - Approvals per -- UL 1059|Electrical data - Ratings per UL - Rated voltage UL (Use Group B) -- 300V|Electrical data - Ratings per UL - Rated current UL (Use Group B) -- 38A|Electrical data - Ratings per UL - Rated voltage UL (Use Group C) -- 150V|Electrical data - Ratings per UL - Rated current UL (Use Group C) -- 38A|Electrical data - Ratings per UL - Rated voltage UL (Use Group D) -- 600V|Electrical data - Ratings per UL - Rated current UL (Use Group D) -- 5A|Electrical data - Ratings per CSA - Approvals per -- CSA|Electrical data - Ratings per CSA - Rated voltage CSA (Use Group B) -- 300V|Electrical data - Ratings per CSA - Rated current CSA (Use Group B) -- 31A|Electrical data - Ratings per CSA - Rated voltage CSA (Use Group C) -- 150V|Electrical data - Ratings per CSA - Rated current CSA (Use Group C) -- 38A|Electrical data - Ratings per CSA - Rated voltage CSA (Use Group D) -- 600V|Electrical data - Ratings per CSA - Rated current CSA (Use Group D) -- 5A|Connection data - Clamping units -- 5|Connection data - Total number of potentials -- 5|Connection data - Number of connection types -- 1|Connection data - Number of levels -- 1|Connection data - Connection 1 - Connection technology -- Push-in CAGE CLAMP|Connection data - Connection 1 - Actuation type -- Operating tool|Connection data - Connection 1 - Solid conductor -- 0.2...10mm2 / 24...8 AWG|Connection data - Connection 1 - Fine-stranded conductor -- 0.2...10mm2 / 24...8 AWG|Connection data - Connection 1 - Fine-stranded conductor; with insulated ferrule -- 0.25...6mm2|Connection data - Connection 1 - Fine-stranded conductor; with uninsulated ferrule -- 0.25...6mm2|Connection data - Connection 1 - Fine-stranded conductor; with twin ferrule -- 0.25...2.5mm2|Connection data - Connection 1 - Strip length -- 13...15mm / 0.51...0.59"|Connection data - Connection 1 - Conductor connection direction to PCB -- 90°|Connection data - Connection 1 - Pole number -- 5|Physical data - Pin spacing -- 7.5mm / 0.295"|Physical data - Width -- 39.3mm / 1.547"|Physical data - Height -- 28.2mm / 1.11"|Physical data - Height from the surface -- 24.2mm / 0.953"|Physical data - Solder pin length -- 4mm|Physical data - Solder pin dimensions -- 1.5 x 1mm|Physical data - Drilled hole diameter with tolerance -- 2 ^(+0.1)mm|Mechanical data - Mounting type -- Feed-through mounting|PCB contact - PCB contact -- THT|PCB contact - Solder pin arrangement -- Over the entire terminal strip (staggered)|PCB contact - Number of solder pins per potential -- 2|Material data - Color -- gray|Material data - Material group -- I|Material data - Insulation material (main housing) -- Polyamide (PA66)|Material data - Flammability class per UL94 -- V0|Material data - Clamping spring material -- Chrome-Nickel spring steel (CrNi)|Material data - Contact material -- Electrolytic Copper (E_Cu)|Material data - Contact plating -- Tin|Material data - Weight -- 20.2g|Environmental requirements - Limit temperature range -- -60...+105°C|Environmental requirements - Processing temperature -- -35...+60°C|Environmental requirements - Continuous operating temperature -- -60...+105°C|Environmental requirements - Environmental Testing (Environmental Conditions) - Test specification / Railway applications - / Rolling stock - / Electronic equipment -- DIN EN 50155 (VDE 0115-200)2022-06|Environmental requirements - Environmental Testing (Environmental Conditions) - Test procedure / Railway applications - / Rolling stock equipment - / Shock and vibration tests -- DIN EN 61373 (VDE 0115-0106)2011-04|Environmental requirements - Environmental Testing (Environmental Conditions) - Spectrum/Installation location -- Service life test; Category 1; Class A/B|Environmental requirements - Environmental Testing (Environmental Conditions) - Function test with noise-like vibration -- Test passed according to Section 8 of the standard|Environmental requirements - Environmental Testing (Environmental Conditions) - Frequency -- f₁ = 5Hz to f₂ = 150Hz|Environmental requirements - Environmental Testing (Environmental Conditions) - Acceleration -- 0.101g (highest test level used for all axes) / 0.572g (highest test level used for all axes) / 5g (highest test level used for all axes)|Environmental requirements - Environmental Testing (Environmental Conditions) - Test duration per axis -- 10 min. / 5 h|Environmental requirements - Environmental Testing (Environmental Conditions) - Test directions -- X; Y and Z axes|Environmental requirements - Environmental Testing (Environmental Conditions) - Monitoring for contact faults/interruptions -- Passed|Environmental requirements - Environmental Testing (Environmental Conditions) - Voltage drop measurement before and after each axis -- Passed|Environmental requirements - Environmental Testing (Environmental Conditions) - Simulated service life test through increased levels of noise-like vibration -- Test passed according to Section 9 of the standard|Environmental requirements - Environmental Testing (Environmental Conditions) - Extended test scope Monitoring for contact faults/interruptions -- Passed|Environmental requirements - Environmental Testing (Environmental Conditions) - Extended test scope Voltage drop measurement before and after each axis -- Passed|Environmental requirements - Environmental Testing (Environmental Conditions) - Shock test -- Test passed according to Section 10 of the standard|Environmental requirements - Environmental Testing (Environmental Conditions) - Shock form -- Half sine|Environmental requirements - Environmental Testing (Environmental Conditions) - Shock duration -- 30ms|Environmental requirements - Environmental Testing (Environmental Conditions) - Number of shocks per axis -- 3 pos. und 3 neg.|Environmental requirements - Environmental Testing (Environmental Conditions) - Vibration and shock stress for rolling stock equipment -- Passed|Commercial data - ETIM 9.0 -- EC002643|Commercial data - ETIM 8.0 -- EC002643|Commercial data - ECCN -- NO US CLASSIFICATION|Commercial data - PU (SPU) -- 60 pcs|Commercial data - Packaging type -- box|Commercial data - Country of origin -- PL|Commercial data - GTIN -- 4066966124477|Commercial data - Customs tariff number -- 85369010000|Environmental Product Compliance - RoHS Compliance Status -- Compliant;No Exemption
• Location of origin: Poland
• Level 1 category: Electrical components

Commercial data

• Country of origin: PL
• Customs tariff number: 85369010000
• ECCN: NO US CLASSIFICATION
• ETIM 8.0: EC002643
• ETIM 9.0: EC002643
• GTIN: 4066966124477
• Packaging type: box
• PU (SPU): 60 pcs

Connection data

• Clamping units: 5
• Connection 1 - Actuation type: Operating tool
• Connection 1 - Conductor connection direction to PCB: 90°
• Connection 1 - Connection technology: Push-in CAGE CLAMP^®
• Connection 1 - Fine-stranded conductor: 0.2 … 10 mm² / 24 … 8 AWG
• Connection 1 - Fine-stranded conductor; with insulated ferrule: 0.25 … 6 mm²
• Connection 1 - Fine-stranded conductor; with twin ferrule: 0.25 … 2.5 mm²
• Connection 1 - Fine-stranded conductor; with uninsulated ferrule: 0.25 … 6 mm²
• Connection 1 - Pole number: 5
• Connection 1 - Solid conductor: 0.2 … 10 mm² / 24 … 8 AWG
• Connection 1 - Strip length: 13 … 15 mm / 0.51 … 0.59 inches
• Number of connection types: 1
• Number of levels: 1
• Total number of potentials: 5

Electrical data

• Ratings per CSA - Approvals per: CSA
• Ratings per CSA - Rated current CSA (Use Group B): 31A
• Ratings per CSA - Rated current CSA (Use Group C): 38A
• Ratings per CSA - Rated current CSA (Use Group D): 5A
• Ratings per CSA - Rated voltage CSA (Use Group B): 300V
• Ratings per CSA - Rated voltage CSA (Use Group C): 150V
• Ratings per CSA - Rated voltage CSA (Use Group D): 600V
• Ratings per IEC/EN - Nominal voltage (II/2): 1000V
• Ratings per IEC/EN - Nominal voltage (III/3): 1000V
• Ratings per IEC/EN - Rated current: 48A
• Ratings per IEC/EN - Rated impulse withstand voltage (II/2): 8kV
• Ratings per IEC/EN - Rated impulse withstand voltage (III / 3): 8kV
• Ratings per IEC/EN - Rated impulse withstand voltage (III/2): 8kV
• Ratings per IEC/EN - Rated voltage (III/2): 1000V
• Ratings per IEC/EN - Ratings per: IEC/EN 60664-1
• Ratings per UL - Approvals per: UL 1059
• Ratings per UL - Rated current UL (Use Group B): 38A
• Ratings per UL - Rated current UL (Use Group C): 38A
• Ratings per UL - Rated current UL (Use Group D): 5A
• Ratings per UL - Rated voltage UL (Use Group B): 300V
• Ratings per UL - Rated voltage UL (Use Group C): 150V
• Ratings per UL - Rated voltage UL (Use Group D): 600V

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Continuous operating temperature: -60 … +105 °C
• Environmental Testing (Environmental Conditions) - Acceleration: 0.101g (highest test level used for all axes)|0.572g (highest test level used for all axes)|5g (highest test level used for all axes)
• Environmental Testing (Environmental Conditions) - Extended test scope: Monitoring for contact faults/interruptions: Passed|Passed
• Environmental Testing (Environmental Conditions) - Extended test scope: Voltage drop measurement before and after each axis: Passed|Passed
• Environmental Testing (Environmental Conditions) - Frequency: f₁ = 5 Hz to f₂ = 150 Hz|f₁ = 5 Hz to f₂ = 150 Hz
• Environmental Testing (Environmental Conditions) - Function test with noise-like vibration: Test passed according to Section 8 of the standard
• Environmental Testing (Environmental Conditions) - Monitoring for contact faults/interruptions: Passed
• Environmental Testing (Environmental Conditions) - Number of shocks per axis: 3 pos. und 3 neg.
• Environmental Testing (Environmental Conditions) - Shock duration: 30 ms
• Environmental Testing (Environmental Conditions) - Shock form: Half sine
• Environmental Testing (Environmental Conditions) - Shock test: Test passed according to Section 10 of the standard
• Environmental Testing (Environmental Conditions) - Simulated service life test through increased levels of noise-like vibration: Test passed according to Section 9 of the standard
• Environmental Testing (Environmental Conditions) - Spectrum/Installation location: Service life test, Category 1, Class A/B
• Environmental Testing (Environmental Conditions) - Test directions: X, Y and Z axes|X, Y and Z axes|X, Y and Z axes
• Environmental Testing (Environmental Conditions) - Test duration per axis: 10 min.|5 h
• Environmental Testing (Environmental Conditions) - Test procedure
  Railway applications –
  Rolling stock equipment –
  Shock and vibration tests: DIN EN 61373 (VDE 0115-0106):2011-04
• Environmental Testing (Environmental Conditions) - Test specification
  Railway applications –
  Rolling stock –
  Electronic equipment: DIN EN 50155 (VDE 0115-200):2022-06
• Environmental Testing (Environmental Conditions) - Vibration and shock stress for rolling stock equipment: Passed
• Environmental Testing (Environmental Conditions) - Voltage drop measurement before and after each axis: Passed
• Limit temperature range: -60 … +105 °C
• Processing temperature: -35 … +60 °C

Material data

• Clamping spring material: Chrome-nickel spring steel (CrNi)
• Color: gray
• Contact material: Electrolytic copper (E_Cu)
• Contact plating: Tin
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Material group: I
• Note (material data):
  Information on material specifications can be found here

• Weight: 20.2g

Mechanical data

• Mounting type: Feed-through mounting

Notes

• Variants:: Other pole numbers|Direct marking|Other colors|Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/.

PCB contact

• Number of solder pins per potential: 2
• PCB contact: THT
• Solder pin arrangement: Over the entire terminal strip (staggered)

Physical data

• Drilled hole diameter with tolerance: 2 ^(+0.1) mm
• Height: 28.2 mm / 1.11 inches
• Height from the surface: 24.2 mm / 0.953 inches
• Pin spacing: 7.5 mm / 0.295 inches
• Solder pin dimensions: 1.5 x 1 mm
• Solder pin length: 4mm
• Width: 39.3 mm / 1.547 inches
