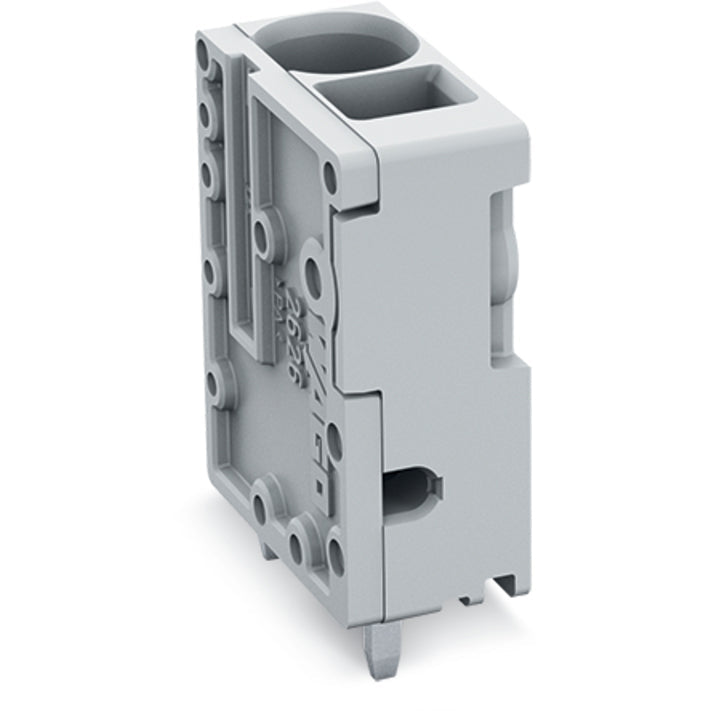

Wago - 2626-3101

WAGO component - equivalent to 26263101

Specifications

• Primary brand: WAGO
• GTIN code: 4055143587266
• Order code / Manufacturer SKU: 2626-3101
• Manufacturer product status: Commercialized
• Equivalent to: 26263101
• EAN code: 4055143587266
• Manufacturer description: PCB terminal block; 6mm2; Pin spacing 7.5mm; 1-pole; Push-in CAGE CLAMP; 6mm2; gray
• Location of origin: Germany
• Manufacturer product specifications: Notes - Note -- The inherent stability of a single-pole PCB terminal block is less than that of a multi-pole terminal strip. The customer must therefore ensure that these terminal blocks are protected against excessive mechanical stress (e.g.; torsional or bending stress); both when connecting the conductor and during subsequent use; for example by providing additional support; shortly holding the connected conductor and appropriate actuation instructions.|Electrical data - Ratings per IEC/EN - Ratings per -- IEC/EN 60664-1|Electrical data - Ratings per IEC/EN - Nominal voltage (III/3) -- 1000V|Electrical data - Ratings per IEC/EN - Rated impulse withstand voltage (III / 3) -- 8kV|Electrical data - Ratings per IEC/EN - Rated voltage (III/2) -- 1000V|Electrical data - Ratings per IEC/EN - Rated impulse withstand voltage (III/2) -- 8kV|Electrical data - Ratings per IEC/EN - Nominal voltage (II/2) -- 1000V|Electrical data - Ratings per IEC/EN - Rated impulse withstand voltage (II/2) -- 8kV|Electrical data - Ratings per IEC/EN - Rated current -- 48A|Electrical data - Ratings per UL - Approvals per -- UL 1059|Electrical data - Ratings per UL - Rated voltage UL (Use Group B) -- 600V|Electrical data - Ratings per UL - Rated current UL (Use Group B) -- 38A|Electrical data - Ratings per UL - Rated voltage UL (Use Group C) -- 600V|Electrical data - Ratings per UL - Rated current UL (Use Group C) -- 38A|Electrical data - Ratings per CSA - Approvals per -- CSA|Electrical data - Ratings per CSA - Rated voltage CSA (Use Group B) -- 600V|Electrical data - Ratings per CSA - Rated current CSA (Use Group B) -- 38A|Electrical data - Ratings per CSA - Rated voltage CSA (Use Group C) -- 1000V|Electrical data - Ratings per CSA - Rated current CSA (Use Group C) -- 38A|Connection data - Clamping units -- 1|Connection data - Total number of potentials -- 1|Connection data - Number of connection types -- 1|Connection data - Number of levels -- 1|Connection data - Connection 1 - Connection technology -- Push-in CAGE CLAMP|Connection data - Connection 1 - Actuation type -- Operating tool|Connection data - Connection 1 - Solid conductor -- 0.2...10mm2 / 24...8 AWG|Connection data - Connection 1 - Fine-stranded conductor -- 0.2...10mm2 / 24...8 AWG|Connection data - Connection 1 - Fine-stranded conductor; with insulated ferrule -- 0.25...6mm2|Connection data - Connection 1 - Fine-stranded conductor; with uninsulated ferrule -- 0.25...6mm2|Connection data - Connection 1 - Fine-stranded conductor; with twin ferrule -- 0.25...2.5mm2|Connection data - Connection 1 - Strip length -- 13...15mm / 0.51...0.59"|Connection data - Connection 1 - Conductor connection direction to PCB -- 90°|Connection data - Connection 1 - Pole number -- 1|Physical data - Pin spacing -- 7.5mm / 0.295"|Physical data - Width -- 9.3mm / 0.366"|Physical data - Height -- 28.2mm / 1.11"|Physical data - Height from the surface -- 24.2mm / 0.953"|Physical data - Depth -- 18.5mm / 0.728"|Physical data - Solder pin length -- 4mm|Physical data - Solder pin dimensions -- 1.5 x 1mm|Physical data - Drilled hole diameter with tolerance -- 2 ^(+0.1)mm|Mechanical data - Mounting type -- Feed-through mounting|PCB contact - PCB contact -- THT|PCB contact - Solder pin arrangement -- Over the entire terminal strip (in-line)|PCB contact - Number of solder pins per potential -- 2|Material data - Color -- gray|Material data - Material group -- I|Material data - Insulation material (main housing) -- Polyamide (PA66)|Material data - Flammability class per UL94 -- V0|Material data - Clamping spring material -- Chrome-Nickel spring steel (CrNi)|Material data - Contact material -- Electrolytic Copper (E_Cu)|Material data - Contact plating -- Tin|Material data - Weight -- 4.5g|Environmental requirements - Limit temperature range -- -60...+105°C|Environmental requirements - Processing temperature -- -35...+60°C|Environmental requirements - Continuous operating temperature -- -60...+105°C|Commercial data - eClass 10.0 -- 27-44-04-01|Commercial data - eClass 9.0 -- 27-44-04-01|Commercial data - ETIM 9.0 -- EC002643|Commercial data - ETIM 8.0 -- EC002643|Commercial data - ECCN -- NO US CLASSIFICATION|Commercial data - PU (SPU) -- 200 pcs|Commercial data - Packaging type -- box|Commercial data - Country of origin -- DE|Commercial data - GTIN -- 4055143587266|Commercial data - Customs tariff number -- 85369010000|Environmental Product Compliance - RoHS Compliance Status -- Compliant;No Exemption
• Level 1 category: Electrical components

Commercial data

• Country of origin: DE
• Customs tariff number: 85369010000
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-44-04-01
• eCl@ss 9.0: 27-44-04-01
• ETIM 8.0: EC002643
• ETIM 9.0: EC002643
• GTIN: 4055143587266
• Packaging type: box
• PU (SPU): 200 pcs

Connection data

• Clamping units: 1
• Connection 1 - Actuation type: Operating tool
• Connection 1 - Conductor connection direction to PCB: 90°
• Connection 1 - Connection technology: Push-in CAGE CLAMP^®
• Connection 1 - Fine-stranded conductor: 0.2 … 10 mm² / 24 … 8 AWG
• Connection 1 - Fine-stranded conductor; with insulated ferrule: 0.25 … 6 mm²
• Connection 1 - Fine-stranded conductor; with twin ferrule: 0.25 … 2.5 mm²
• Connection 1 - Fine-stranded conductor; with uninsulated ferrule: 0.25 … 6 mm²
• Connection 1 - Pole number: 1
• Connection 1 - Solid conductor: 0.2 … 10 mm² / 24 … 8 AWG
• Connection 1 - Strip length: 13 … 15 mm / 0.51 … 0.59 inches
• Number of connection types: 1
• Number of levels: 1
• Total number of potentials: 1

Electrical data

• Ratings per CSA - Approvals per: CSA
• Ratings per CSA - Rated current CSA (Use Group B): 38A
• Ratings per CSA - Rated current CSA (Use Group C): 38A
• Ratings per CSA - Rated voltage CSA (Use Group B): 600V
• Ratings per CSA - Rated voltage CSA (Use Group C): 1000V
• Ratings per IEC/EN - Nominal voltage (II/2): 1000V
• Ratings per IEC/EN - Nominal voltage (III/3): 1000V
• Ratings per IEC/EN - Rated current: 48A
• Ratings per IEC/EN - Rated impulse withstand voltage (II/2): 8kV
• Ratings per IEC/EN - Rated impulse withstand voltage (III / 3): 8kV
• Ratings per IEC/EN - Rated impulse withstand voltage (III/2): 8kV
• Ratings per IEC/EN - Rated voltage (III/2): 1000V
• Ratings per IEC/EN - Ratings per: IEC/EN 60664-1
• Ratings per UL - Approvals per: UL 1059
• Ratings per UL - Rated current UL (Use Group B): 38A
• Ratings per UL - Rated current UL (Use Group C): 38A
• Ratings per UL - Rated voltage UL (Use Group B): 600V
• Ratings per UL - Rated voltage UL (Use Group C): 600V

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Continuous operating temperature: -60 … +105 °C
• Limit temperature range: -60 … +105 °C
• Processing temperature: -35 … +60 °C

Material data

• Clamping spring material: Chrome-nickel spring steel (CrNi)
• Color: gray
• Contact material: Electrolytic copper (E_Cu)
• Contact plating: Tin
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Material group: I
• Note (material data):
  Information on material specifications can be found here

• Weight: 4.5g

Mechanical data

• Mounting type: Feed-through mounting

Notes

• Note: The inherent stability of a single-pole PCB terminal block is less than that of a multi-pole terminal strip. The customer must therefore ensure that these terminal blocks are protected against excessive mechanical stress (e.g., torsional or bending stress), both when connecting the conductor and during subsequent use, for example by providing additional support, shortly holding the connected conductor and appropriate actuation instructions.
• Variants:: Other pole numbers|Direct marking|Other colors|Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/.

PCB contact

• Number of solder pins per potential: 2
• PCB contact: THT
• Solder pin arrangement: Over the entire terminal strip (in-line)

Physical data

• Depth: 18.5 mm / 0.728 inches
• Drilled hole diameter with tolerance: 2 ^(+0.1) mm
• Height: 28.2 mm / 1.11 inches
• Height from the surface: 24.2 mm / 0.953 inches
• Pin spacing: 7.5 mm / 0.295 inches
• Solder pin dimensions: 1.5 x 1 mm
• Solder pin length: 4mm
• Width: 9.3 mm / 0.366 inches
