Wago - 261-430

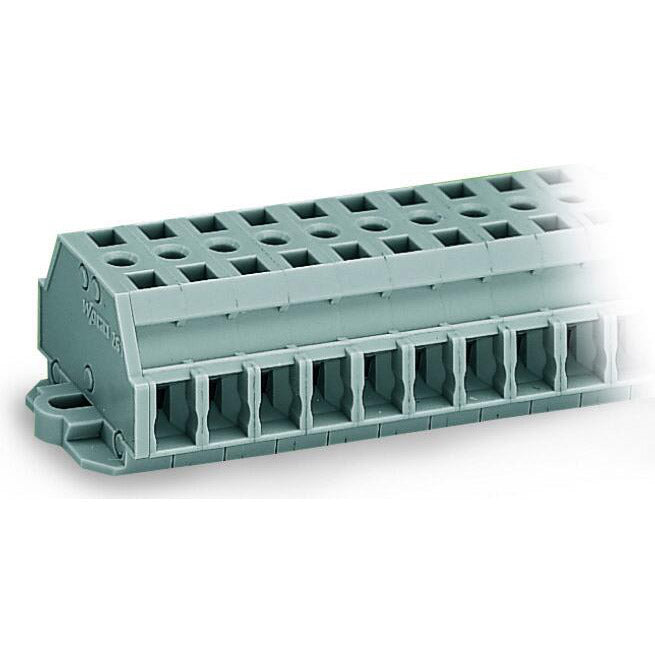

Feed-through/thru terminal strip with 1-deck/level + side/lateral marking slots - WAGO (261 series) - Gray - 10 feed-through poles (10P) / 20-wires (10 clamps + 10 clamps) (10+10) - for 0.08mm2...2.5mm2 / for #28AWG...#14AWG - Rated current 24A - with CAGE CLAMP spring connections - 3.2mm fixing hole mounting - equivalent to 261430

Specifications

• Primary brand: WAGO
• Functions: Feed-through/thru terminal strip
• Design: 1-deck/level|side/lateral marking slots
• Poles: 10 feed-through poles (10P)
• Temperature: Processing temperature -35°C...+85°C|Continuous operating temperature -60°C...+105°C
• Rated current: (IEC) 24A|(UL) 15A|(CSA) 10A
• Color: Gray
• Connection capacity: 20-wires (10 clamps + 10 clamps) (10+10)
• Rated operating voltage (Ue): (IEC) 500V|(UL) 300V|(CSA) 300V
• Rated impulse voltage (Uimp): (IEC) 6kV
• Connection type: CAGE CLAMP spring connections
• Cross-section: for 0.08mm2...2.5mm2 fine stranded or solid conductors|for #28AWG...#14AWG fine stranded or solid conductors
• Mounting mode: 3.2mm fixing hole
• Dimensions: H28mm x W73mm x D23.2mm
• Material: Polyamide (PA) 66|Halogen-free materials
• Customs Tariff Number: 85369010000
• ETIM code: EC001284
• GTIN code: 4044918627719
• eClass code: 27-14-11-06
• Order code / Manufacturer SKU: 261-430
• Manufacturer product status: Commercialized
• Equivalent to: 261430
• EAN code: 4044918627719
• Compliant with standard(s): RoHS compliant|material group I|V-0 flammability rating
• Location of origin: Germany
• Level 1 category: Electrical components
• Level 2 category: Terminal blocks
• Product title: Feed-through/thru terminal strip - 1-deck/level - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85369010000
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-14-11-06
• eCl@ss 9.0: 27-14-11-06
• ETIM 8.0: EC001284
• ETIM 9.0: EC001284
• GTIN: 4044918627719
• Packaging type: box
• PU (SPU): 25 pcs

Connection data

• Clamping units: 20
• Connection 1 - Actuation type: Operating tool
• Connection 1 - Connectable conductor materials: Copper
• Connection 1 - Connection technology: CAGE CLAMP^®
• Connection 1 - Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Connection 1 - Pole number: 10
• Connection 1 - Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Connection 1 - Strip length: 8 … 9 mm / 0.31 … 0.35 inches
• Connection 1 - Wiring direction: Side-entry wiring
• Number of levels: 1
• Total number of potentials: 10

Electrical data

• Ratings per CSA - Approvals per: CSA 22.2 No 158
• Ratings per CSA - Rated current CSA (Use Group C): 10A
• Ratings per CSA - Rated current CSA (Use Group D): 5A
• Ratings per CSA - Rated voltage CSA (Use Group C): 300V
• Ratings per CSA - Rated voltage CSA (Use Group D): 600V
• Ratings per IEC/EN - Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3
• Ratings per IEC/EN - Nominal voltage (III/3): 500V
• Ratings per IEC/EN - Rated current: 24A
• Ratings per IEC/EN - Rated impulse withstand voltage (III / 3): 6kV
• Ratings per UL - Approvals per: UL 1059
• Ratings per UL - Rated current UL (Use Group B): 15A
• Ratings per UL - Rated current UL (Use Group C): 15A
• Ratings per UL - Rated current UL (Use Group D): 5A
• Ratings per UL - Rated voltage UL (Use Group B): 300V
• Ratings per UL - Rated voltage UL (Use Group C): 300V
• Ratings per UL - Rated voltage UL (Use Group D): 600V

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Continuous operating temperature: -60 … +105 °C
• Processing temperature: -35 … +85 °C

Material data

• Color: gray
• Fire load: 0.47MJ
• Flammability class per UL94: V0
• Halogen-free: Yes
• Insulation material (main housing): Polyamide (PA66)
• Material group: I
• Note (material data):
  Information on material specifications can be found here

• Weight: 25.2g

Mechanical data

• Design: horizontal type
• Marking level: Side marking
• Mounting type: Mounting flange

Physical data

• Depth: 23.2 mm / 0.913 inches
• Height: 28 mm / 1.102 inches
• Height from the surface: 18.1 mm / 0.713 inches
• Module width: 6 mm / 0.236 inches
• Width: 73 mm / 2.874 inches
