Wago - 2606-1101

WAGO component - equivalent to 26061101

Specifications

• Primary brand: WAGO
• GTIN code: 4055143586405
• Order code / Manufacturer SKU: 2606-1101
• Manufacturer product status: Commercialized
• Equivalent to: 26061101
• EAN code: 4055143586405

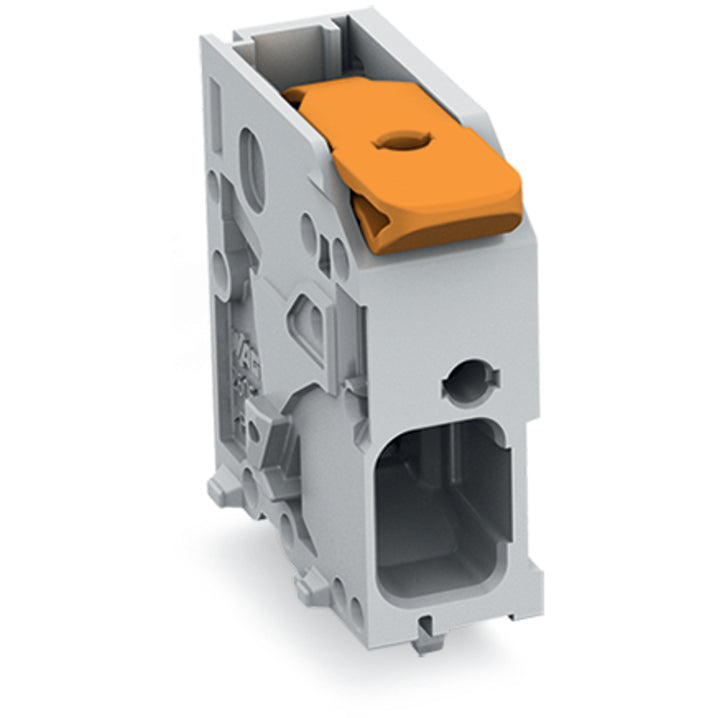

• Manufacturer description: PCB terminal block; lever; 6mm2; Pin spacing 7.5mm; 1-pole; Push-in CAGE CLAMP; 6mm2; gray
• Location of origin: Poland
• Manufacturer product specifications: Notes - Note -- The inherent stability of a single-pole PCB terminal block is less than that of a multi-pole terminal strip. The customer must therefore ensure that these terminal blocks are protected against excessive mechanical stress (e.g.; torsional or bending stress); both when connecting the conductor and during subsequent use; for example by providing additional support; shortly holding the connected conductor and appropriate actuation instructions.|Electrical data - Ratings per IEC/EN - Ratings per -- IEC/EN 60664-1|Electrical data - Ratings per IEC/EN - Nominal voltage (III/3) -- 1000V|Electrical data - Ratings per IEC/EN - Rated impulse withstand voltage (III / 3) -- 8kV|Electrical data - Ratings per IEC/EN - Rated voltage (III/2) -- 1000V|Electrical data - Ratings per IEC/EN - Rated impulse withstand voltage (III/2) -- 8kV|Electrical data - Ratings per IEC/EN - Nominal voltage (II/2) -- 1000V|Electrical data - Ratings per IEC/EN - Rated impulse withstand voltage (II/2) -- 8kV|Electrical data - Ratings per IEC/EN - Rated current -- 41A|Electrical data - Ratings per IEC/EN - Legend (ratings) -- (III / 2) Overvoltage category III / Pollution degree 2|Electrical data - Ratings per UL - Approvals per -- UL 1059|Electrical data - Ratings per UL - Rated voltage UL (Use Group B) -- 600V|Electrical data - Ratings per UL - Rated current UL (Use Group B) -- 31A|Electrical data - Ratings per UL - Rated voltage UL (Use Group C) -- 600V|Electrical data - Ratings per UL - Rated current UL (Use Group C) -- 31A|Electrical data - Ratings per CSA - Approvals per -- CSA|Electrical data - Ratings per CSA - Rated voltage CSA (Use Group B) -- 600V|Electrical data - Ratings per CSA - Rated current CSA (Use Group B) -- 31A|Electrical data - Ratings per CSA - Rated voltage CSA (Use Group C) -- 1000V|Electrical data - Ratings per CSA - Rated current CSA (Use Group C) -- 31A|Connection data - Clamping units -- 1|Connection data - Total number of potentials -- 1|Connection data - Number of connection types -- 1|Connection data - Number of levels -- 1|Connection data - Connection 1 - Connection technology -- Push-in CAGE CLAMP|Connection data - Connection 1 - Actuation type -- Lever|Connection data - Connection 1 - Solid conductor -- 0.2...10mm2 / 24...8 AWG|Connection data - Connection 1 - Fine-stranded conductor -- 0.2...10mm2 / 24...8 AWG|Connection data - Connection 1 - Fine-stranded conductor; with insulated ferrule -- 0.25...6mm2|Connection data - Connection 1 - Fine-stranded conductor; with uninsulated ferrule -- 0.25...6mm2|Connection data - Connection 1 - Fine-stranded conductor; with twin ferrule -- 0.25...2.5mm2|Connection data - Connection 1 - Strip length -- 11...13mm / 0.43...0.51"|Connection data - Connection 1 - Conductor connection direction to PCB -- 0°|Connection data - Connection 1 - Pole number -- 1|Physical data - Pin spacing -- 7.5mm / 0.295"|Physical data - Width -- 10.35mm / 0.407"|Physical data - Height -- 28mm / 1.102"|Physical data - Height from the surface -- 24mm / 0.945"|Physical data - Depth -- 24.3mm / 0.957"|Physical data - Solder pin length -- 4mm|Physical data - Solder pin dimensions -- 1.5 x 1.2mm|Physical data - Drilled hole diameter with tolerance -- 2 ^(+0.1)mm|PCB contact - PCB contact -- THT|PCB contact - Solder pin arrangement -- Over the entire terminal strip (in-line)|PCB contact - Number of solder pins per potential -- 2|Material data - Color -- gray|Material data - Material group -- I|Material data - Insulation material (main housing) -- Polyamide (PA66)|Material data - Flammability class per UL94 -- V0|Material data - Clamping spring material -- Chrome-Nickel spring steel (CrNi)|Material data - Contact material -- Electrolytic Copper (E_Cu)|Material data - Contact plating -- Tin|Material data - Fire load -- 0.101MJ|Material data - Actuator color -- orange|Material data - Weight -- 4.5g|Environmental requirements - Limit temperature range -- -60...+105°C|Environmental requirements - Processing temperature -- -35...+60°C|Environmental requirements - Continuous operating temperature -- -60...+105°C|Environmental requirements - Environmental Testing (Environmental Conditions) - Test specification / Railway applications - / Rolling stock - / Electronic equipment -- DIN EN 50155 (VDE 0115-200)2022-06|Environmental requirements - Environmental Testing (Environmental Conditions) - Test procedure / Railway applications - / Rolling stock equipment - / Shock and vibration tests -- DIN EN 61373 (VDE 0115-0106)2011-04|Environmental requirements - Environmental Testing (Environmental Conditions) - Spectrum/Installation location -- Service life test; Category 1; Class A/B|Environmental requirements - Environmental Testing (Environmental Conditions) - Function test with noise-like vibration -- Test passed according to Section 8 of the standard|Environmental requirements - Environmental Testing (Environmental Conditions) - Frequency -- f₁ = 5Hz to f₂ = 150Hz|Environmental requirements - Environmental Testing (Environmental Conditions) - Acceleration -- 0.101g (highest test level used for all axes) / 0.572g (highest test level used for all axes) / 5g (highest test level used for all axes)|Environmental requirements - Environmental Testing (Environmental Conditions) - Test duration per axis -- 10 min. / 5 h|Environmental requirements - Environmental Testing (Environmental Conditions) - Test directions -- X; Y and Z axes|Environmental requirements - Environmental Testing (Environmental Conditions) - Monitoring for contact faults/interruptions -- Passed|Environmental requirements - Environmental Testing (Environmental Conditions) - Voltage drop measurement before and after each axis -- Passed|Environmental requirements - Environmental Testing (Environmental Conditions) - Simulated service life test through increased levels of noise-like vibration -- Test passed according to Section 9 of the standard|Environmental requirements - Environmental Testing (Environmental Conditions) - Extended test scope Monitoring for contact faults/interruptions -- Passed|Environmental requirements - Environmental Testing (Environmental Conditions) - Extended test scope Voltage drop measurement before and after each axis -- Passed|Environmental requirements - Environmental Testing (Environmental Conditions) - Shock test -- Test passed according to Section 10 of the standard|Environmental requirements - Environmental Testing (Environmental Conditions) - Shock form -- Half sine|Environmental requirements - Environmental Testing (Environmental Conditions) - Shock duration -- 30ms|Environmental requirements - Environmental Testing (Environmental Conditions) - Number of shocks per axis -- 3 pos. und 3 neg.|Environmental requirements - Environmental Testing (Environmental Conditions) - Vibration and shock stress for rolling stock equipment -- Passed|Commercial data - eClass 10.0 -- 27-44-04-01|Commercial data - eClass 9.0 -- 27-44-04-01|Commercial data - ETIM 9.0 -- EC002643|Commercial data - ETIM 8.0 -- EC002643|Commercial data - ECCN -- NO US CLASSIFICATION|Commercial data - PU (SPU) -- 200 pcs|Commercial data - Packaging type -- box|Commercial data - Country of origin -- PL|Commercial data - GTIN -- 4055143586405|Commercial data - Customs tariff number -- 85369010000|Environmental Product Compliance - RoHS Compliance Status -- Compliant;No Exemption
• Level 1 category: Electrical components

Commercial data

• Country of origin: PL
• Customs tariff number: 85369010000
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-44-04-01
• eCl@ss 9.0: 27-44-04-01
• ETIM 8.0: EC002643
• ETIM 9.0: EC002643
• GTIN: 4055143586405
• Packaging type: box
• PU (SPU): 200 pcs

Connection data

• Clamping units: 1
• Connection 1 - Actuation type: Lever
• Connection 1 - Conductor connection direction to PCB: 0°
• Connection 1 - Connection technology: Push-in CAGE CLAMP^®
• Connection 1 - Fine-stranded conductor: 0.2 … 10 mm² / 24 … 8 AWG
• Connection 1 - Fine-stranded conductor; with insulated ferrule: 0.25 … 6 mm²
• Connection 1 - Fine-stranded conductor; with twin ferrule: 0.25 … 2.5 mm²
• Connection 1 - Fine-stranded conductor; with uninsulated ferrule: 0.25 … 6 mm²
• Connection 1 - Pole number: 1
• Connection 1 - Solid conductor: 0.2 … 10 mm² / 24 … 8 AWG
• Connection 1 - Strip length: 11 … 13 mm / 0.43 … 0.51 inches
• Number of connection types: 1
• Number of levels: 1
• Total number of potentials: 1

Electrical data

• Ratings per CSA - Approvals per: CSA
• Ratings per CSA - Rated current CSA (Use Group B): 31A
• Ratings per CSA - Rated current CSA (Use Group C): 31A
• Ratings per CSA - Rated voltage CSA (Use Group B): 600V
• Ratings per CSA - Rated voltage CSA (Use Group C): 1000V
• Ratings per IEC/EN - Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2
• Ratings per IEC/EN - Nominal voltage (II/2): 1000V
• Ratings per IEC/EN - Nominal voltage (III/3): 1000V
• Ratings per IEC/EN - Rated current: 41A
• Ratings per IEC/EN - Rated impulse withstand voltage (II/2): 8kV
• Ratings per IEC/EN - Rated impulse withstand voltage (III / 3): 8kV
• Ratings per IEC/EN - Rated impulse withstand voltage (III/2): 8kV
• Ratings per IEC/EN - Rated voltage (III/2): 1000V
• Ratings per IEC/EN - Ratings per: IEC/EN 60664-1
• Ratings per UL - Approvals per: UL 1059
• Ratings per UL - Rated current UL (Use Group B): 31A
• Ratings per UL - Rated current UL (Use Group C): 31A
• Ratings per UL - Rated voltage UL (Use Group B): 600V
• Ratings per UL - Rated voltage UL (Use Group C): 600V

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Continuous operating temperature: -60 … +105 °C
• Environmental Testing (Environmental Conditions) - Acceleration: 0.101g (highest test level used for all axes)|0.572g (highest test level used for all axes)|5g (highest test level used for all axes)
• Environmental Testing (Environmental Conditions) - Extended test scope: Monitoring for contact faults/interruptions: Passed|Passed
• Environmental Testing (Environmental Conditions) - Extended test scope: Voltage drop measurement before and after each axis: Passed|Passed
• Environmental Testing (Environmental Conditions) - Frequency: f₁ = 5 Hz to f₂ = 150 Hz|f₁ = 5 Hz to f₂ = 150 Hz
• Environmental Testing (Environmental Conditions) - Function test with noise-like vibration: Test passed according to Section 8 of the standard
• Environmental Testing (Environmental Conditions) - Monitoring for contact faults/interruptions: Passed
• Environmental Testing (Environmental Conditions) - Number of shocks per axis: 3 pos. und 3 neg.
• Environmental Testing (Environmental Conditions) - Shock duration: 30 ms
• Environmental Testing (Environmental Conditions) - Shock form: Half sine
• Environmental Testing (Environmental Conditions) - Shock test: Test passed according to Section 10 of the standard
• Environmental Testing (Environmental Conditions) - Simulated service life test through increased levels of noise-like vibration: Test passed according to Section 9 of the standard
• Environmental Testing (Environmental Conditions) - Spectrum/Installation location: Service life test, Category 1, Class A/B
• Environmental Testing (Environmental Conditions) - Test directions: X, Y and Z axes|X, Y and Z axes|X, Y and Z axes
• Environmental Testing (Environmental Conditions) - Test duration per axis: 10 min.|5 h
• Environmental Testing (Environmental Conditions) - Test procedure
  Railway applications –
  Rolling stock equipment –
  Shock and vibration tests: DIN EN 61373 (VDE 0115-0106):2011-04
• Environmental Testing (Environmental Conditions) - Test specification
  Railway applications –
  Rolling stock –
  Electronic equipment: DIN EN 50155 (VDE 0115-200):2022-06
• Environmental Testing (Environmental Conditions) - Vibration and shock stress for rolling stock equipment: Passed
• Environmental Testing (Environmental Conditions) - Voltage drop measurement before and after each axis: Passed
• Limit temperature range: -60 … +105 °C
• Processing temperature: -35 … +60 °C

Material data

• Actuator color: orange
• Clamping spring material: Chrome-nickel spring steel (CrNi)
• Color: gray
• Contact material: Electrolytic copper (E_Cu)
• Contact plating: Tin
• Fire load: 0.101MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Material group: I
• Note (material data):
  Information on material specifications can be found here

• Weight: 4.5g

Notes

• Note: The inherent stability of a single-pole PCB terminal block is less than that of a multi-pole terminal strip. The customer must therefore ensure that these terminal blocks are protected against excessive mechanical stress (e.g., torsional or bending stress), both when connecting the conductor and during subsequent use, for example by providing additional support, shortly holding the connected conductor and appropriate actuation instructions.
• Variants:: Other pole numbers|Direct marking|Other colors|Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/.

PCB contact

• Number of solder pins per potential: 2
• PCB contact: THT
• Solder pin arrangement: Over the entire terminal strip (in-line)

Physical data

• Depth: 24.3 mm / 0.957 inches
• Drilled hole diameter with tolerance: 2 ^(+0.1) mm
• Height: 28 mm / 1.102 inches
• Height from the surface: 24 mm / 0.945 inches
• Pin spacing: 7.5 mm / 0.295 inches
• Solder pin dimensions: 1.5 x 1.2 mm
• Solder pin length: 4mm
• Width: 10.35 mm / 0.407 inches
