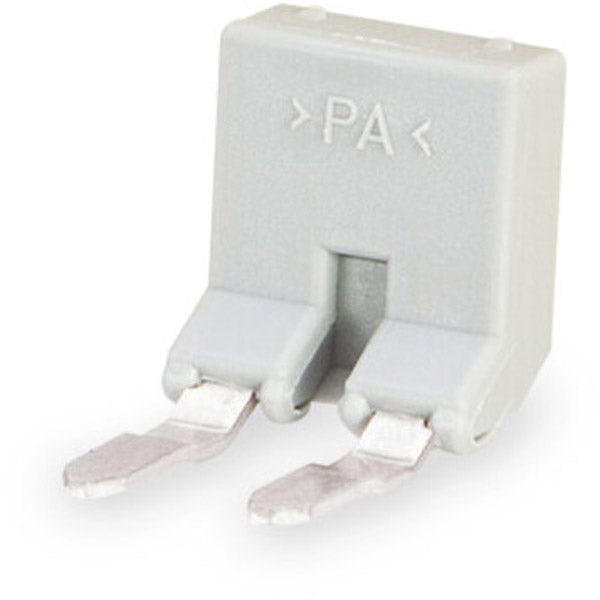

Wago - 260-402

Insulated comb-style jumper bar - 2-way - WAGO (260 series) - 2-poles (2P) - Rated current 10A - Gray color - equivalent to 260402

Specifications

• Primary brand: WAGO
• Functions: Insulated comb-style jumper bar
• Design: 2-way
• Poles: 2-poles (2P)
• Temperature: Processing temperature -35°C...+85°C|Continuous operating temperature -60°C...+105°C
• Rated current: 10A
• Color: Gray
• Dimensions: H10mm x W8mm x D4mm
• Material: Polyamide (PA) 66
• Customs Tariff Number: 85366990990
• eClass code: 27-14-11-40
• GTIN code: 4045454030858
• ETIM code: EC000489
• Order code / Manufacturer SKU: 260-402
• Manufacturer product status: Commercialized
• Equivalent to: 260402
• EAN code: 4045454030858
• Compliant with standard(s): RoHS compliant|material group I|V-0 flammability rating
• Location of origin: Poland
• Level 1 category: Electrical components
• Product title: Insulated comb-style jumper bar - WAGO

Commercial data

• Country of origin: PL
• Customs tariff number: 85366990990
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-14-11-40
• eCl@ss 9.0: 27-14-11-40
• ETIM 8.0: EC000489
• ETIM 9.0: EC000489
• GTIN: 4045454030858
• Packaging type: box
• Product Group: 9 (Std Chassis Mt Blocks)
• PU (SPU): 500 (25) pcs

Electrical data

• Ratings per IEC/EN - Rated current: 10A

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Continuous operating temperature: -60 … +105 °C
• Processing temperature: -35 … +85 °C

Material data

• Color: gray
• Fire load: 0.006MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Material group: I
• Note (material data):
  Information on material specifications can be found here

• Weight: 0.4g

Physical data

• Depth: 4 mm / 0.157 inches
• Height: 10 mm / 0.394 inches
• Jumper assignment: 1-2
• Width: 8 mm / 0.315 inches
