Wago - 2587-2146

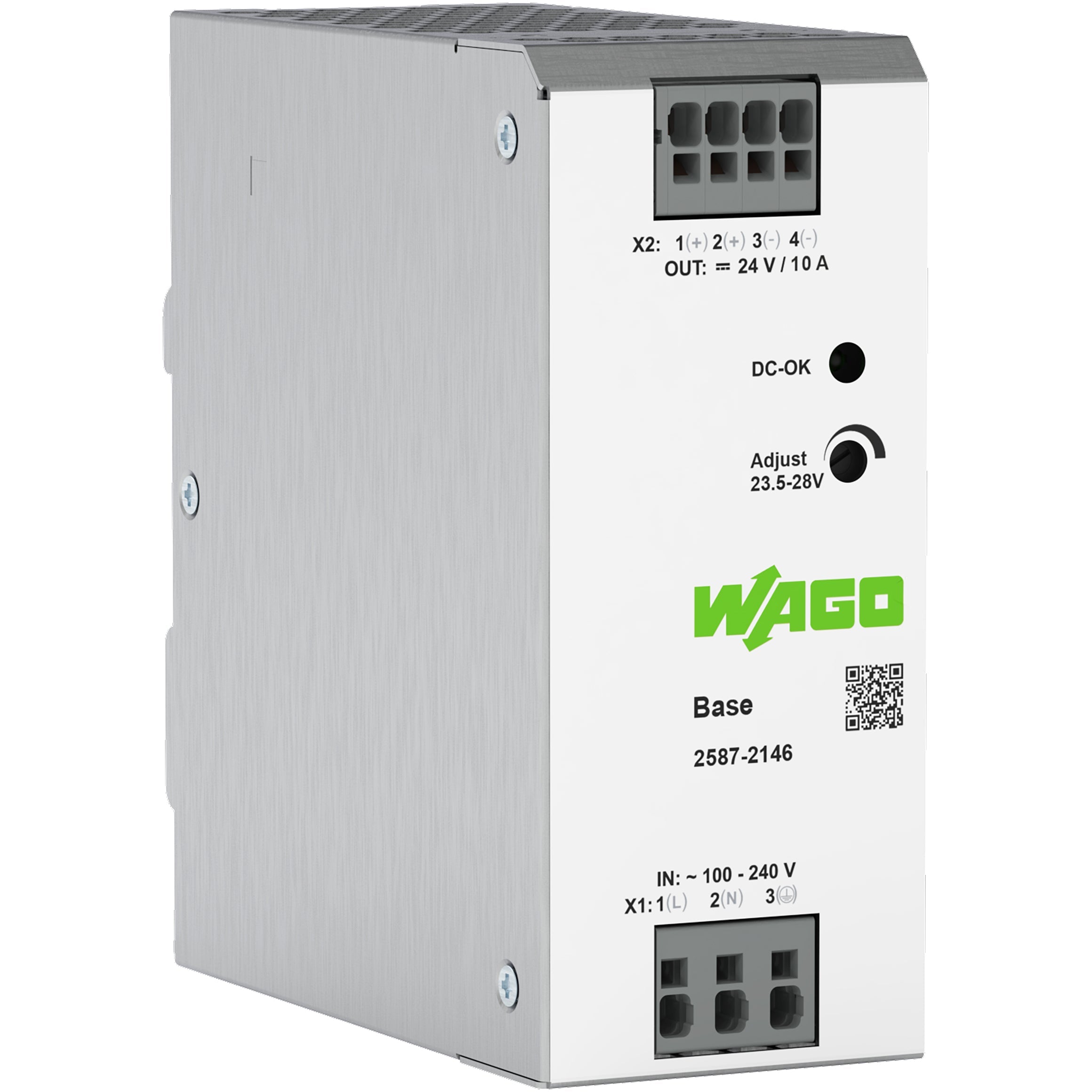

WAGO component - equivalent to 25872146

Specifications

• Primary brand: WAGO
• GTIN code: 4066966626490
• Order code / Manufacturer SKU: 2587-2146
• Manufacturer product status: Commercialized
• Equivalent to: 25872146
• Manufacturer description: Switched-mode power supply; Base; 1-phase; 24Vdc output voltage; 10A output current; DC-OK LED
• Location of origin: China
• Manufacturer product specifications: Technical data - Input - Phases -- 1|Technical data - Input - Nominal input voltage U_{i nom} -- 1 x 100...240 VAC|Technical data - Input - Input voltage range -- 1 x 90...264 VAC (Derating -1%/V for voltage < 100 VAC)|Technical data - Input - Nominal mains frequency range -- 50Hz / 60Hz|Technical data - Input - Input current I_i -- ≤ 3.5A|Technical data - Input - Inrush current -- ≤ 15A (at 230 VAC / 25°C)|Technical data - Input - Power factor correction (PFC) -- Active|Technical data - Input - Mains failure hold-up time -- ≥ 22ms (230 VAC)|Technical data - Output - Nominal output voltage U_{o nom} -- 24 VDC (SELV)|Technical data - Output - Output voltage range -- 23.5...28 VDC (adjustable)|Technical data - Output - Default setting -- DC 24V|Technical data - Output - Nominal output current I_{o nom} -- 10A (24 VDC)|Technical data - Output - Nominal output power -- 240W|Technical data - Output - Deviation -- ≤ 1%|Technical data - Output - Residual ripple -- ≤ 100mV (peak-to-peak)|Technical data - Output - Overload behavior -- Shutdown and automatic restart in the event of a short circuit|Technical data - Signaling and communication - Signaling -- Optical status indication (DC OK)|Technical data - Efficiency/power losses - Power loss P_l -- ≤ 5W (230 VAC; no load); ≤ 24.6W (230 VAC; nominal load)|Technical data - Efficiency/power losses - Efficiency (typ.) -- 91%|Safety and protection - Isolation voltage (pri.-sec.; AC) -- 3510V|Safety and protection - Isolation voltage (pri.-PE; AC) -- 2210V|Safety and protection - Protection class -- I|Safety and protection - Protection type -- IP20; per EN 60529|Safety and protection - Overvoltage category -- III (≤ 2000 m); II (> 2000 m)|Safety and protection - Pollution degree -- 2|Safety and protection - Short-circuit-protected -- Yes|Safety and protection - Open-circuit-proof -- Yes|Safety and protection - Parallel operation -- Yes|Safety and protection - Series operation -- Yes|Safety and protection - MTBF -- > 1000;000 h (at 25°C; per IEC 61709; SN 29500)|Connection data - Connection type 1 -- Input/output|Connection data - Connection technology -- Push-in CAGE CLAMP|Connection data - WAGO connector -- WAGO 2624 Series|Connection data - Solid conductor -- 0.2...6mm2 / 24...10 AWG|Connection data - Fine-stranded conductor -- 0.2...6mm2 / 24...10 AWG|Connection data - Fine-stranded conductor; with insulated ferrule -- 0.25...2.5mm2|Connection data - Fine-stranded conductor; with uninsulated ferrule -- 0.25...2.5mm2|Connection data - Strip length -- 10...12mm / 0.39...0.47"|Physical data - Width -- 52mm / 2.05"|Physical data - Height -- 125mm / 4.92"|Physical data - Depth from upper-edge of DIN-rail -- 117mm / 4.61"|Mechanical data - Mounting type -- DIN-35 rail|Material data - Weight -- 752g|Environmental requirements - Ambient temperature (operation) -- -30...+70°C (Device starts at -40°C (type-tested))|Environmental requirements - Ambient temperature (storage) -- -40...+85°C|Environmental requirements - Relative humidity -- 5...96% (no condensation permissible)|Environmental requirements - Derating -- -4.8 W/°C (> 45°C and < 200 V); -4.8 W/°C (> 50°C and ≥ 200 V)|Environmental requirements - Climatic category -- 3K3 (per EN 60721)|Environmental requirements - Operating altitude (max.) -- 5000m|Standards and specifications - Conformity marking -- CE|Standards and specifications - Standards/specifications -- EN 62368-1 / EN 55032 / EN 55035 / EN IEC 61000-3-2 / EN 61000-3-3 / EN IEC 61000-6-4 / EN IEC 61000-6-2 / UL 61010-1 / UL 61010-2-201|Commercial data - ETIM 9.0 -- EC002540|Commercial data - ETIM 8.0 -- EC002540|Commercial data - ECCN -- NO US CLASSIFICATION|Commercial data - PU (SPU) -- 1 pcs|Commercial data - Packaging type -- Box|Commercial data - Country of origin -- CN|Commercial data - GTIN -- 4066966626490|Commercial data - Customs tariff number -- 85044083900|Environmental Product Compliance - RoHS Compliance Status -- Compliant;No Exemption
• Level 1 category: Automation components
• Level 2 category: Power supply units

Commercial data

• Country of origin: CN
• Customs tariff number: 85044083900
• ECCN: NO US CLASSIFICATION
• ETIM 8.0: EC002540
• ETIM 9.0: EC002540
• GTIN: 4066966626490
• Packaging type: Box
• PU (SPU): 1 pcs

Connection data

• Connection technology: Push-in CAGE CLAMP^®
• Connection type 1: Input/output
• Fine-stranded conductor: 0.2 … 6 mm² / 24 … 10 AWG
• Fine-stranded conductor; with insulated ferrule: 0.25 … 2.5 mm²
• Fine-stranded conductor; with uninsulated ferrule: 0.25 … 2.5 mm²
• Solid conductor: 0.2 … 6 mm² / 24 … 10 AWG
• Strip length: 10 … 12 mm / 0.39 … 0.47 inches
• WAGO connector: WAGO 2624 Series

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Ambient temperature (operation): -30 … +70 °C (Device starts at -40 °C (type-tested))
• Ambient temperature (storage): -40 … +85 °C
• Climatic category: 3K3 (per EN 60721)
• Derating: -4.8 W/°C (> 45 °C and < 200 V); -4.8 W/°C (> 50 °C and ≥ 200 V)
• Operating altitude (max.): 5000m
• Relative humidity: 5 … 96 % (no condensation permissible)

Material data

• Weight: 752g

Mechanical data

• Mounting type: DIN-35 rail

Physical data

• Depth from upper-edge of DIN-rail: 117 mm / 4.61 inches
• Height: 125 mm / 4.92 inches
• Width: 52 mm / 2.05 inches

Safety and protection

• Isolation voltage (pri.-PE, AC): 2,210V
• Isolation voltage (pri.-sec., AC): 3,510V
• MTBF: > 1,000,000 h (at 25 °C; per IEC 61709; SN 29500)
• Open-circuit-proof: Yes
• Overvoltage category: III (≤ 2000 m); II (> 2000 m)
• Parallel operation: Yes
• Pollution degree: 2
• Protection class: I
• Protection type: IP20; per EN 60529
• Series operation: Yes
• Short-circuit-protected: Yes

Standards and specifications

• Conformity marking: CE
• Standards/specifications: EN 62368-1|EN 55032|EN 55035|EN IEC 61000-3-2|EN 61000-3-3|EN IEC 61000-6-4|EN IEC 61000-6-2|UL 61010-1|UL 61010-2-201

Technical data

• Efficiency/power losses - Efficiency (typ.): 91 %
• Efficiency/power losses - Power loss P_l: ≤ 5 W (230 VAC; no load); ≤ 24.6 W (230 VAC; nominal load)
• Input - Input current I_i: ≤ 3.5 A
• Input - Input voltage range: 1 x 90 … 264 VAC (Derating -1 %/V for voltage < 100 VAC)
• Input - Inrush current: ≤ 15 A (at 230 VAC / 25 °C)
• Input - Mains failure hold-up time: ≥ 22 ms (230 VAC)
• Input - Nominal input voltage U_{i nom}: 1 x 100 … 240 VAC
• Input - Nominal mains frequency range: 50 Hz / 60 Hz
• Input - Phases: 1
• Input - Power factor correction (PFC): Active
• Output - Default setting: DC 24 V
• Output - Deviation: ≤ 1 %
• Output - Nominal output current I_{o nom}: 10 A (24 VDC)
• Output - Nominal output power: 240W
• Output - Nominal output voltage U_{o nom}: 24 VDC (SELV)
• Output - Output voltage range: 23.5 … 28 VDC (adjustable)
• Output - Overload behavior: Shutdown and automatic restart in the event of a short circuit
• Output - Residual ripple: ≤ 100 mV (peak-to-peak)
• Signaling and communication - Signaling: Optical status indication (DC OK)
